SIEMENS BROTHERS No. F1084 and F1086

MAGNETO TELEPHONES

(Wall Pattern)

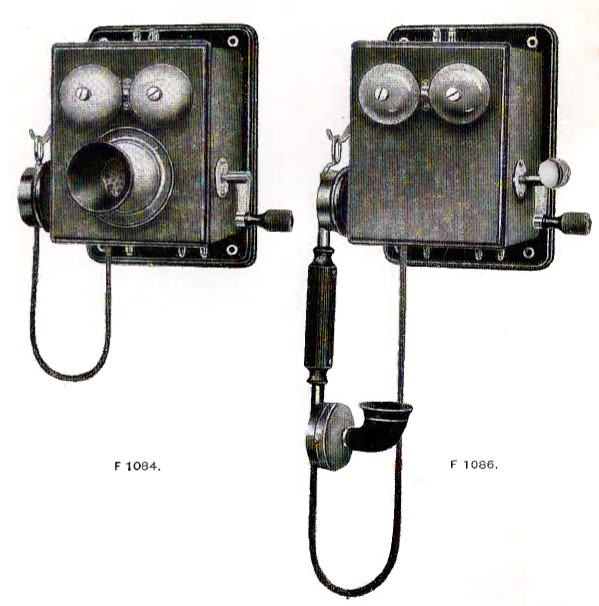

F1084 and F1086
Magneto Wall Telephones, in polished walnut case, comprising interchangeable granular carbon capsule transmitter, induction coil,  Automatic Switch Hook, Point Lightning Arrester, Polarised Bell (1600ohms) and a Magneto Generator to ring effectively through a non-inductive line resistance of 30,000ohms.

F1084 - With "Watch" Receiver.
F1086 - With Hand-Microtelephone.

Taken from the Siemens Brothers Catalogue "Telephones and Telephone Switchboards for private installation" 1913
