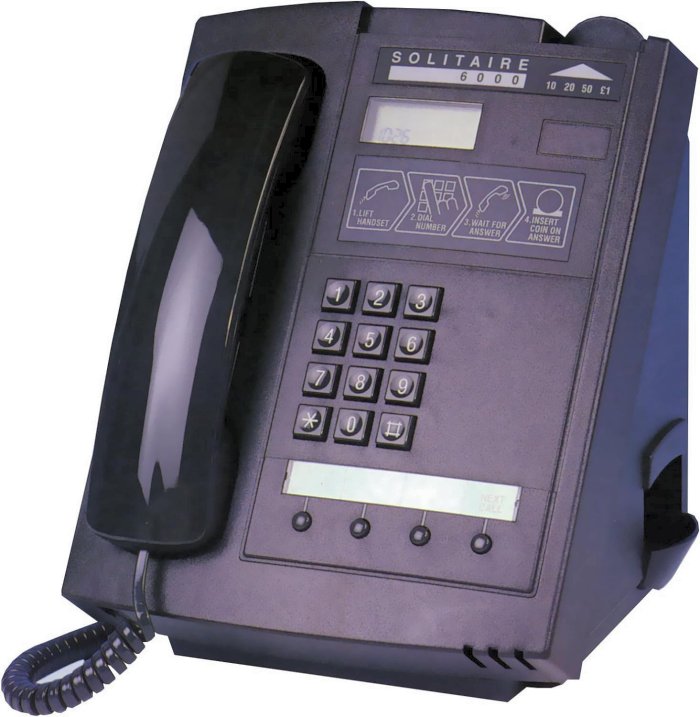

SOLITAIRE 6000 PAYPHONE
Brochure (AU)
Brochure (UK)
User Guide
User Guide (BT)

The Solitaire 6000 is a “pay-on-answer”, feature rich payphone that is ideal for deployment in supervised areas, it offers coin refund and rejection and greater flexibility in programming.

The charge rates are adjustable allowing the user to either cover the cost of a call or to maximise revenue.

The Solitaire 6000 has a 600 coin cash box capacity and is ready for immediate use.

Features:-

  • Pay-On-Answer Functionality
  • Adjustable call charges
  • Reverse call charge protection
  • International calls allowed (Barring Option)
  • 10 memories
  • PLC (Plug-in Customiser) Allows for future enhancements
  • Pulse/tone switchable
  • Owners PIN number to allow calls without coins
  • Free emergency calls (999/112)
  • Ready to use - Plug in and play
  • Electronic coin discrimination
  • 3 direct dial memory buttons with Audit Record
  • LCD Display of Cash Records
  • 600 coin cash box capacity
  • Direct line or PABX (Auto-dial Access Digit)
  • Controllable ringer volume
  • Programmable 100 Operator Access
  • BT Phonecard Plus Access on 144
  • Table/Wall mount with easy empty cash tray
  • Line Powered with Battery back up option

Accepts the following coins:-

  • 10p, 20p, 50p, £1
  • Accepts new style 10p

The battery compartment has been retained (Which accepts 4 X AA Cells) for certain specialist applications where the payphone could be unplugged from the telephone line on a regular basis (e.g. Hospital Trolley usage) and correct time could be lost if the line is disconnected for more than a few minutes.



Solitaire 6000IP
Introduced in 2012, the internet protocol version of the Solitaire 6000 allows connection of the payphone to latest generation sophisticated IP telephone systems. This ensures that customers payphone provision can keep pace with systems technology and also allows the IP Solitaire 6000 Payphone owner to access a whole range of IP related features not available on the standard product. IP telephone systems typically provide accurate and comprehensive call usage statistics to allow site owners to monitor closely the cost of calls from the payphone extension and this coupled with trip totaliser and irrevocable grand cash totaliser on the IP Solitaire 6000 will help finance departments with cost control and budgetting.

Further features of the IP Solitaire 6000 payphone include pay on answer operation with refund, accepts UK Coins:(10p, 20p, 50p and £1) plus future coin learning mode, refund of invalid coins, adjustable charge rates, return missed calls, prevent anonymous calls, call waiting indication, do not disturb, block caller ID, distinctive ringing to differentiate incoming calls, out of hours divert to mobile, next call button, 3 direct dial memory buttons with audit record and LCD display of cash records, forward calls when payphone extension is busy rather than just engaged tone, large liquid crystal display with 11 digit capability, PABX compatible, international barring options, programmable automatic reduced cost routing ((via cable and wireless in the UK), 999/112 emergency call without coins, tone and pulse switchable, hearing aid compatible and plug in customiser socket for future feature enhancement. The IP Solitaire 6000 payphone.

Features:-

  • IP coin operated payphone
  • Connects to VOIP systems, broadband and routers
  • Up to 100% margin on cash collected (refer to service provider)
  • Takes current UK coins 10p, 20p, 50p and £1 plus future coin learning mode
  • Owner's PIN number to allow calls without coins and reverse charge call protection
