Strips Connexion No. 155A
18 terminal connection strip.
Fits in Telephones No. 710,
711, 740, 741 and 746.
Normally numbered T20 - T37.
For additional Terminals are
required of 17 or less then one or two Parts 2/DST/836 are
fitted. Drawing - 91465.
|
|

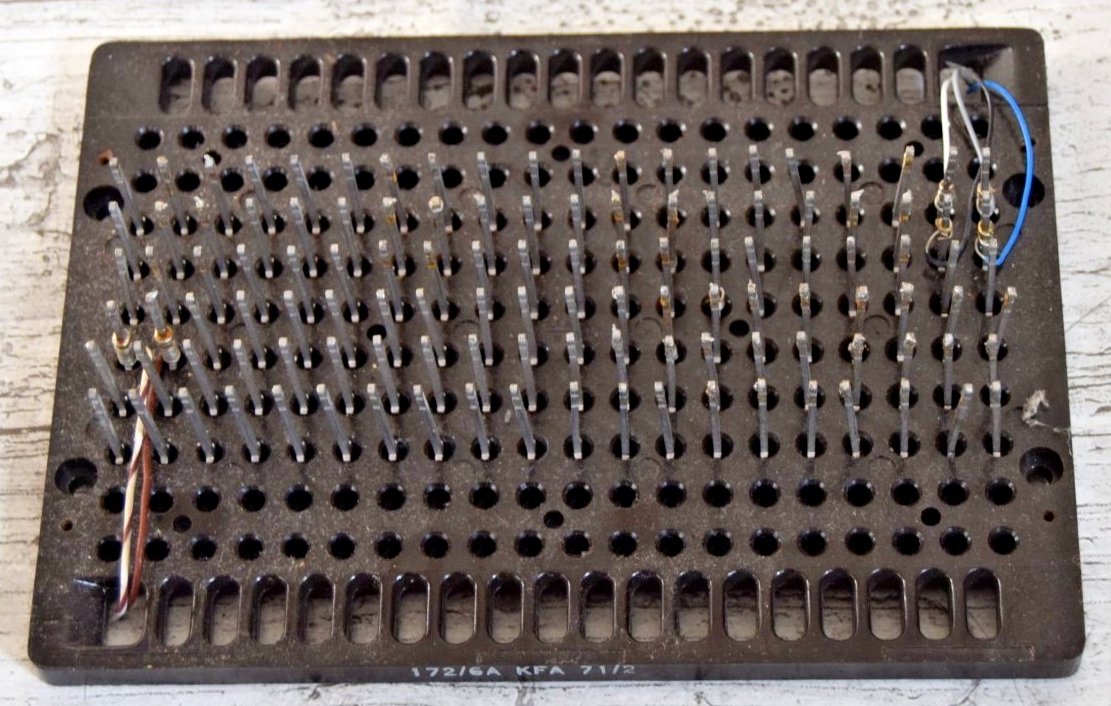

Strips Connexion No. 172
This strip is used for terminating solderless (i.e. wrapped
wire) and
soldered connexions on same tags.
These
strips are supplied with differnet numbers of tags. See
drawing for more information.
Drawing -
91541.
|
Click on picture to enlarge
|
Strips Connexion No. 237A
This device is used to terminate ten pairs of solid copper wires
between the range of 0.4mm and 0.63mm when a disconnect and test
facility is required.
A maximum of two wires per IDC
is permitted providing they are of equal gauge.
Drawing - CD2930.
|
|
Strips Connexion No. 237B
This device is used to terminate ten pairs of solid copper wires
between the range of 0.4mm and 0.63mm when no disconnect and
only a Tee-on test facility is required. A maximum of two
wires per IDC is permitted providing they are of equal gauge.
This module has no black spot
markings on the front.
Drawing - CD2931.
|
|
Strips Connexion No. 237C
This device is used to terminate twenty pairs of solid copper
wires between the range of 0.4mm and 0.63mm when a disconnect
and test facility is not required. A maximum of two wires per
IDC is permitted providing they are of equal gauge.
Protector Mounting No. 5B
cannot be fitted to this strip.
Drawing - CD2932. |
|
Strips Connexion No. 237D
76 wire earth common, red
coloured.
Fitted with 20mm earth lead.
Drawing - CD2933.
|
|
Strips Connexion No. 237E
20 wire earth common, red
coloured.
Fitted with 20mm earth lead.
|
|
Strips Connexion No. 237F
80 way commoning module.
|
|
| Strips Connexion No. 238A
Low profile 3 wire insulation displacement type strip
for PCB mounting.
First use: Line Jack Units.
Drawings - 94548 and 94549. |
|
| Strips Connexion No. 239A
Low profile 4 wire insulation displacement type strip for PCB
mounting.
.First use: Line Jack Units.
Drawings - 94548 and 94549. |
|
| Strips Connexion No. 240A
Part of Frame, Mounting No. 4 and includes an insulating strip.
|
|
| Strips Connexion No. 241A
Low Profile 10 pair plus two earth contacts.
FUW Box Connection No. 201A.
|
|
| Strips Connexion No. 241B
Low Profile 10 pair strip.
FUW Box Conn 201A.
|
|
| Strips Connexion No. 242A
Low profile 10 + 20 for under floor boxes.
|
|
| Strips Connexion No. 243A
8 pair with disconnection contacts.
|
|
| Strips Connexion No. 244A
2 pair with disconnection contacts - PCB mounted.
|
|
| |
|
| |
|
