Telephone No. 782 (early version - GEN) |
Telephone No. 782R (with optional neon
handset) |
Telephone No. 782
Basic network, low send level, table
push button telephone with MF keypad. Introduced in September 1977, with
the Telephone No. 782R and Telephone No. 782RR introduced in February 1979.
The Telephone No. 782 can accept two additional press
buttons, whilst those with recall buttons can only accept one additional press
button.
The R variant was fitted with an Earth Recall button.
The Telephone No. 8786RR was fitted with a Timed Break Recall button (Register Recall).
The telephone is fitted with a Kit-CP100, which is a small circuit board,
whose use and circuit diagrams are covered in Specification
S1376.

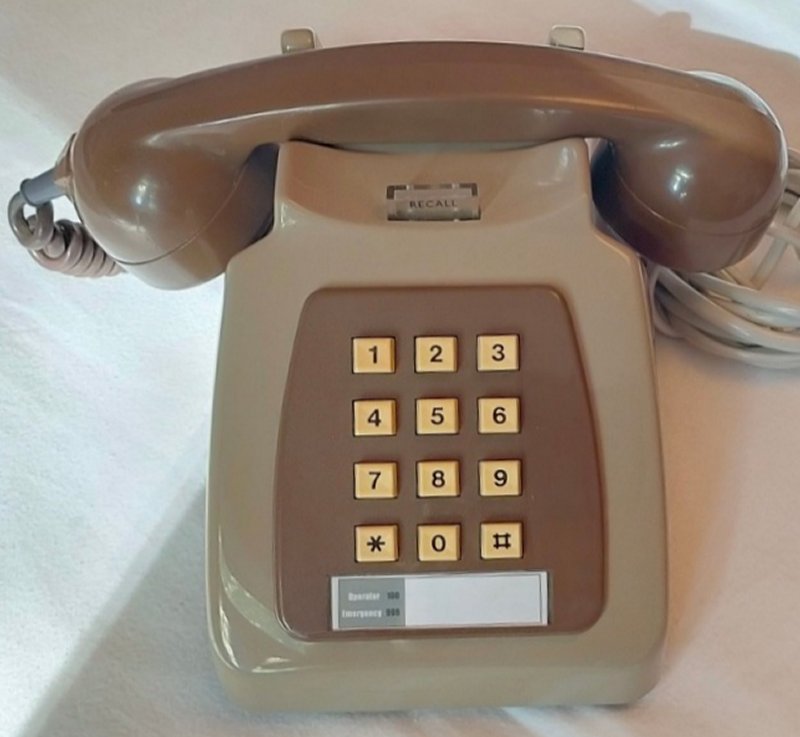

A Telephone No. 8782RX was also made and this was for instances where a
constant tone level was required, independent of line current. This phone
was also fitted with an Earth Recall Button and converted for the UK plug and
socket system.
Telephone No. 8782
In 1982 the Telephone No. 8782 (Ivory and Grey) was introduced and was fitted
with a Bell No. 59D-1 (high
impedance bell coils 4000 ohms) and a Cord Connection No. 4/502 3000mm.
These phones are converted Telephone No. 872's.
The Telephone No. 8782 was also produced with recall
facilities and the number would be suffixed with R, RR and RX depending on the
recall type.
Circuit diagram - N882
(Telephone No. 782) and
N8882 (Telephone No. 8782).
Specifications - S1289,
S1376 and S1487
(Telephone No. 8782).
Additional Information
Model |
Mark |
Grey |
Ivory |
Introduced |
PBU No |
Remarks |
Tele 782 & 8782 |
Mk 1 |
y |
y |
9/77 |
7E or F |
GEC |
Tele 782 & 8782 |
Mk 2 |
y |
y |
6/78 |
54A |
STC |
Tele 782 & 8782 |
Mk 3 |
y |
y |
9/80 |
56A/4 |
PLESSEY |
Tele 782 & 8782 |
Mk 4 |
y |
y |
2/79 |
11A |
PYE/TMC |
Tele 782 & 8782 |
Mk 5 |
y |
y |
9/81 |
56A/2 |
GEC |
Tele 782 & 8782 |
Mk 6 |
y |
y |
2/81 |
56A/3 |
TMC |
Tele 782 & 8782 |
Mk 7 |
y |
y |
9/81 |
56A/1 |
STC |
Tele 782 & 8782 |
Mk 8 |
y |
y |
3/82 |
56A/5 |
BTF |
Tele 782 & 8782 |
Mk 9 |
y |
y |
|
56B/4 |
PLESSEY |
Tele 782 & 8782 |
Mk 10 |
y |
y |
8/82 |
56B/3 |
TMC |
Tele 782 & 8782 |
Mk 11 |
y |
y |
3/82 |
56B/2 |
GEC |
Tele 782R & 8782R |
Mk 1 |
y |
y |
|
7E or F |
GEC |
Tele 782R & 8782R |
Mk 2 |
y |
y |
|
54A |
STC |
Tele 782R & 8782R |
Mk 3 |
y |
y |
|
56A/4 |
PLESSEY |
Tele 782R & 8782R |
Mk 4 |
y |
y |
|
11A |
PYE/TMC |
Tele 782R & 8782R |
Mk 5 |
y |
y |
|
56A/2 |
GEC |
Tele 782R & 8782R |
Mk 6 |
y |
y |
|
56A/3 |
TMC |
Tele 782R & 8782R |
Mk 7 |
y |
y |
|
56A/1 |
STC |
Tele 782R & 8782R |
Mk 8 |
y |
y |
|
56A/5 |
BTF |
Tele 782R & 8782R |
Mk 9 |
y |
y |
|
56B/4 |
PLESSEY |
Tele 782R & 8782R |
Mk 10 |
y |
y |
|
56B/3 |
TMC |
Tele 782R & 8782R |
Mk 11 |
y |
y |
|
56B/2 |
GEC |
Tele 782RR & 8782RR |
Mk 1 |
y |
y |
|
7E or F |
GEC |
Tele 782RR & 8782RR |
Mk 2 |
y |
y |
|
54A |
STC |
Tele 782RR & 8782RR |
Mk 3 |
y |
y |
|
56A/4 |
PLESSEY |
Tele 782RR & 8782RR |
Mk 4 |
y |
y |
|
11A |
PYE/TMC |
Tele 782RR & 8782RR |
Mk 5 |
y |
y |
|
56A/2 |
GEC |
Tele 782RR & 8782RR |
Mk 6 |
y |
y |
|
56A/3 |
TMC |
Tele 782RR & 8782RR |
Mk 7 |
y |
y |
|
56A/1 |
STC |
Tele 782RR & 8782RR |
Mk 8 |
y |
y |
|
56A/5 |
BTF |
Tele 782RR & 8782RR |
Mk 9 |
y |
y |
|
56B/4 |
PLESSEY |
Tele 782RR & 8782RR |
Mk 10 |
y |
y |
|
56B/3 |
TMC |
Tele 782RR & 8782RR |
Mk 11 |
y |
y |
|
56B/2 |
GEC |
