TELEPHONE SPECIAL RANGE No. 1007B

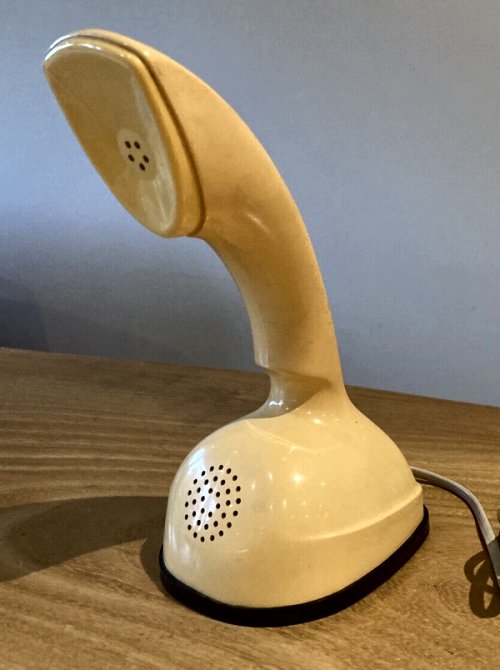

Made by Swedish Ericsson, this one piece dial telephone was called the Ericofon 600.  It had no internal ringing device.  The telephone was available in Orange or Ivory.

Connection to an exchange line was by means of a Plug No. 505.  A plastic sleeve, which fitted over the plug and was retained by the socket cover,  prevented the customer from removing the telephone from the line.

When fitted with the later grey coloured BT line cord the phone was called the TSR No. 8007.

Country of Origin - Sweden.

Introduced in 1981.

Sales Brochure - PH2854

For additional information see the TSR No. 8007.


TELECOM INSTRUCTION
B MARKETING COMMERCIAL
4 Facilities and Apparatus
B03l8
Issue 1, Mar 1980

SPECIAL RANGE TELEPHONE (SRT)
Ericofon 600 by Thorn-Ericsson

This instruction deals with the physical description, field of use, title and identification of the telephone.

DESCRIPTION
The Ericofon 600 is a one piece dial telephone. The telephone cannot be used on shared Exchange lines, and it does not have an internal calling device: one separate bell may be provided free of charge if required. Colours available are Ivory and Orange. Each telephone is fitted with a five way cord, three metres long when fully extended, terminated with a Plug 505. Alternative cords cannot be provided. The non standard telephone number label measures 35 mm by 8 mm and is held in a slot in the base. Service information will not be shown on the label.

DIMENSIONS
Height 212 mm, Width 96 mm, Depth 112 mm and Weight 560 gm.

FIELD OF USE
TYPE B, Exclusive exchange lines; PBX extensions without recall facility; main stations and extensions of Plans 1A and 4  including Plan 4 off 1A. (Note: Not available for Shared Service).

IDENTIFICATION AND TITLE
The marketing title is Ericofon 600 by Thorn Ericsson and will be used in all advertising and publicity for the telephone and in contacts with the general public. The PO engineering title is Telephone SR1000B. Post Office ownership can be confirmed against the appearance of this number, the year of manufacture, and the words 'Post Office Property' which are marked on the base.



L.M. Ericsson Ericofon

Nicknamed the Cobra phone

This telephone is included in the BPO/BT section since it was adopted into the Post Office's 'Special Range' of designer telephones around 1980 (it is shown in PH2788AA dated May 1980 but not in PH2708 of August 1979).  That said, the vast majority of Ericofons likely to be encountered by collectors will have reached the country by other routes.

The design is unique - a one-piece telephone that stands upright on its base, with a dial or keypad concealed in the base. Two models were offered in Britain, the 600 with a dial and the 700 with push buttons. Although new in 1980 to most British telephone users, the Ericofon had a much longer history in its home country, Sweden, and indeed in the USA. The Ericofon was launched in 1956 (or 1954 - reports vary) and according to the manufacturer was immediately successful.  "Demand grew rapidly. The major export markets were the US, Italy, Australia, Brazil and Switzerland. About 20 percent of output was reserved for the Swedish market. In addition to being compact, the Ericofon weighed less than the receiver of a conventional desk telephone of the time. It is easy to see why the Museum of Modern Art in New York selected the Ericofon as one of the best designs of the 20th century."

That's the official version from Ericsson, although others would qualify its success. Certainly, as Bruce Crawford points out, the Ericofon kick-started the 'designer' telephone market and was directly responsible for the design and introduction of the Bell System's 'Trimline''  and other dial-in-handset telephones. He continues:-

Introduced in 1954 as a business telephone for 'in-house' (PAX) systems, the original Ericofon was slightly less curved than later production, (which same is superbly illustrated in Kate Dooner's Seven Decades of Design, pages 51 and 52).

The spelling of Ericofon was varied in North America, and included variations such as 'Ericafone', or more simply, 'Erica'.  However, Ericofon was (and is) the registered trade name. Sales were relatively flat (and, in fact, remained so over the life of the product). It was not originally intended that the product be connected with public administrations (at least, not in North America). The talking circuit was designed for 24-volt working (standard PAX voltage) and included a simple anti-side-tone 'network'. A complicated dial mechanism included the 'hook switch' in the centre (where we are used to seeing the number card); and a buzzer and capacitor were part of an oversize connecting block. The cord between the connecting block and the Erica itself was unique: the first 12" was a coil, and the balance was straight. Initial production had the cord covered with a nylon fabric, which soiled easily; later production was of ivory PVC.

Because the sets were intended for internal use, the dial was numbered 1-0, only. However, there was European demand for the set for residential use, and LME decided to spruce up the set to meet North American standards, to test the market on this side of the "pond". ABC, DEF, etc., was added to the dial as appropriate; and the external buzzer was replaced by an internal 'tweeter', the first such use of an electronic 'ringer'. The operating companies showed little interest, however and the Bell System wasn't about to allow this "foreign attachment" to be connected to their plant! (Besides, they had just introduced their first decorator set, the Princess' and weren't interested in a product not manufactured by WECo.)

In an effort to stimulate sales, the set was introduced in some bold new colours, such as the red and green on page 52 of Kate's book. The real impetus, however, came from a hospital group. A major problem for a bedridden patient is reaching to dial a telephone; with the dial-in-handset, the phone came to the patient! However, the Bell System steadfastly refused to permit these telephones to be "interconnected".

Unfortunately for the Bell companies, they did not have any product available to do the job (and which, as noted in the opening paragraph, provided for the impetus to design a Bell System "dial-in-handset" telephone). The hospital association simply approached various public utility boards, and eventually the Bell System capitulated: The customer would provide and maintain the Ericofon; the monthly tariff, however, would remain the same  (great for the Bell; same monthly rental, no capital investment!).

There was considerable media interest in the hospital connections and sales to non-Bell companies increased. However, after the introduction of the Trimline, media interest waned, and sales tended to slump. Sales world-wide for the ten year period ending 1964 were 1,000,000, representing about $20,000,000.00. This was a 'drop in the bucket' for a company the size of Ericsson. LME has had a strange on again, off again, relationship with telephone customers in the USA and Canada (although they have had a consistent business dealings with the Mexican telephone administration). LME is very strong in Europe, of course, where it is principal supplier to many of the administrations. In one of their "off" phases, LME decided to withdraw from the USA, and sold the manufacturing rights to North Electric. This represented North's last attempt at telephone manufacturing (or, really, assembly, because the components were imported), and, in the late 1970s, they withdrew from this business. A telephone rebuilding company, CEAC (Communication Equipment and Contracting Co., Inc.) were at their peak at this time, and they envisioned a future market for the Ericofon, and purchased the "line" from North. CEAC changed the product code to a simple 52, and offered it with or without the tone ringer (which they called "Ericotone').

Prior to the sale to CEAC, LME and North attempted to collaborate on a Touch-Tone Erica, strictly for the North American market. It was impossible to produce the rugged rotary-dial with in-built hook-switch that was so successful in the original Erica.  A 'horseshoe' ring surrounded the dial pad, and a quantity of the sets were manufactured and sold. They did not stand up well in service, however.

Unfortunately for the Ericofon, the North American consumer preferred the dial-in-handset styling of the Trim-line, Slenderette, Styline, or Contempra.  The reason? First, of course, would be the mass-marketing of these phones by the Bell System, GTE, and independents in the 1960s.  And, the North American designed dial-in-handsets were easier to use: the Ericofon, in effect, had to be turned 'upside-down' to dial it.  CEAC discontinued production of the Ericofon in the early 1980s, and the company itself closed shortly thereafter.

Manufactured by: Thorn Ericsson (probably made from Swedish parts and assembled in Britain). The current reproductions sold by a company called General Dare are just that; they do not contain any parts of original Ericofons.

Colours:  (Model 600) ivory, orange; (Model 700) brown, green or white. The North American range comprised Aqua Mist Blue-green, Crystal Mint Green, Petal Pink, Sandalwood, Candle Glow Ivory, Mandarin Red, Sahara Beige, and Taj Mahal White.

Repair notes: The telephones were originally glued together, making disassembly for repair rather difficult.  A common fault is failure of the earpiece, which is hard to reach.  Desperate problems call for desperate measures and the solution, suggested by Malcolm Percival, is to pour boiling water over the case, which softens the glue.

See also Telephone SR 8007 - the same phone wired with the new style UK plug

Click here for the Ericofon web site

More information on Telephones Special Range

Special Range Telephone Suffix's
A = NO RECALL, CALLING DEVICE
B = NO RECALL, NO CALLING DEVICE
C = RECALL, CALLING DEVICE
D = RECALL, NO CALLING DEVICE
G = MF DIALLING


FITTING OF DIAL LABEL
Slacken each of the Philips screws securing the base by four complete turns. Holding the telephone base uppermost, with the label holder nearest to you push the rubber gasket away from the base and down over the telephone body passed the microphone aperture to release the lugs on the inner rim of the gasket (NB: the portion of the gasket adjoining the label holder should not be released). It is now possible to roll the gasket back passed the microphone and across the face of the dial towards you. Hold the gasket down over the line cord entry to expose the label holder access. Remove any existing label by inserting a pin in the slot beneath the label. Insert the new label and re-assemble in reverse order, making sure that all lugs on the gasket are correctly located under the base plate before re-tightening the screws.



How to wire your Telephone SR1007 to make it work on Plug and Socket





Additional Pictures

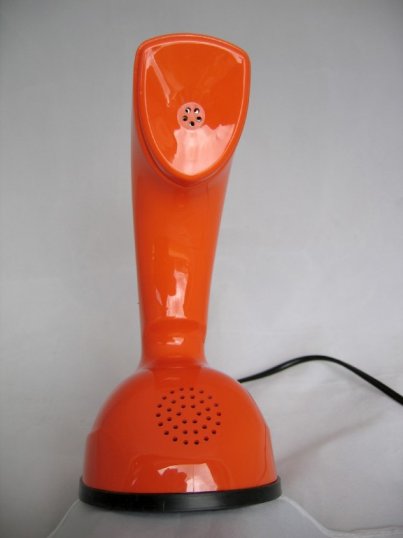

TSR No. 8007

Side view Side view

Rear View Front View

Base View Base, Dial and Cord View


Internal View Labels and marking found inside the phone



This is a TSR 1007B
(Note the Plug No. 505)
