| Make |
Dodge |
| Model |
Commando |
| Type |
4 ton Chassis cab |
| Body Builder |
|
| Use |
Stores Carrier |
| Registration Number |
|
| Fleet Number |
|
| Date of picture |
|

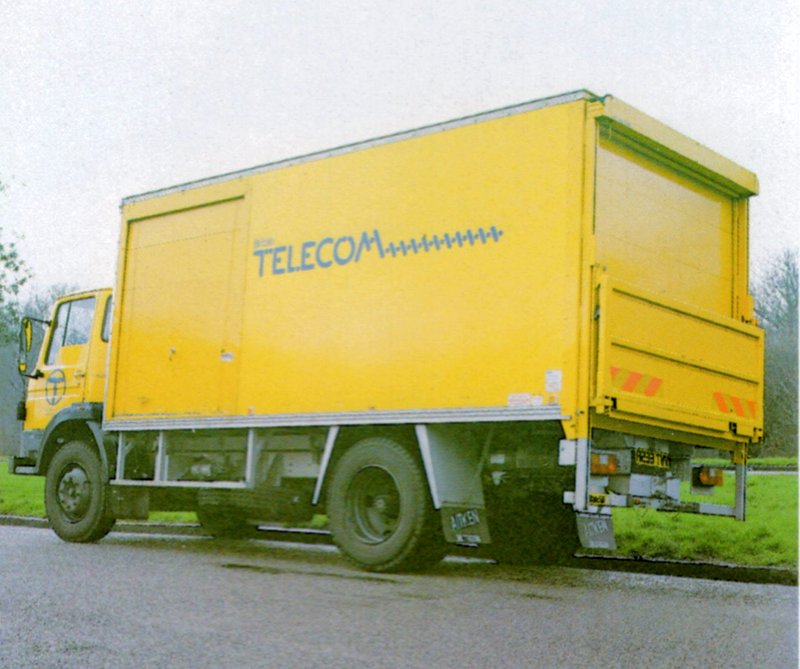

Vehicle description
This vehicle is based on the Dodge Commando chassis cab. The standard vehicle is supplied with a full width rear
roller shutter, a body side roller shutter, a 1 tonne capacity tail lift, and
at the front of the body a hinged flap which simplifies the carriage of long
equipment, such as poles. Power assisted steering is also a standard
fitment.
The engine is a 6 cylinder 6.354 litre diesel. Fuel
tank capacity is 29 gallons, and with an approximate MPG figure of 13, the range
of the vehicle would be in the order of 370 miles.
Utilisation
General stores carrying duties.
Optional extras
Dual passenger seat
Higher capacity tail lift
Vehicle code - 659
License type: HGV3
Delivery time: 4 months
Economic service life: 12 years
| Weights (typical) |
Kgs |
| Front axle |
3560 |
| Rear axle |
6610 |
| GVW |
9860 |
| GTW |
16000 |
| Kerbside weight |
4980 |
| Payload |
4805 |
| Allowance for personnel |
75kg per person |
| Taxation class |
HGV |
| |
|
| Dimensions |
Metres |
| Wheelbase |
4.25 |
| Overall height (unladen) |
3.20 |
| Overall width (excluding mirrors) |
2.44 |
| Overall length |
7.28 |
| Body height (interior) |
2.10 |
| Body width (interior) |
2.27 |
| Body length (interior) |
3.90 |
| Track front (approx) |
2.10 |
| Track rear (approx) |
1.70 |
| Approximate volume of body |
18.6 cu metres |
Taken from the BT Motor Transport Guide March 1984
|
