| Make |
Dodge |
| Model |
50 Series |
| Type |
Chassis cab |
| Body Builder |
1500kg |
| Use |
Stores Carrier |
| Registration Number |
|
| Fleet Number |
|
| Date of picture |
1984 |
Vehicle description

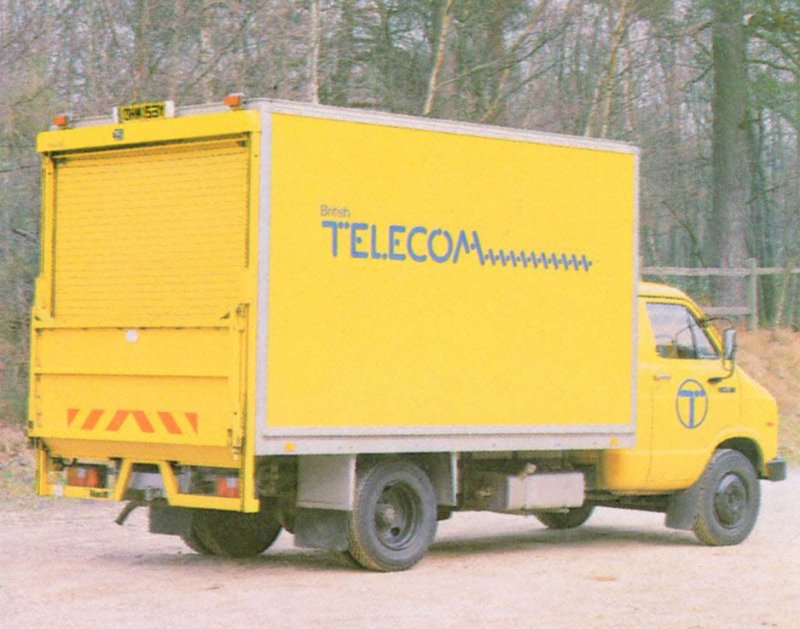

Based on the Dodge 50 series, this chassis cab provides roomy accommodation
for driver and passenger. The body, constructed from GRP and aluminium, has
a one-piece translucent fibre glass root above and a 22mm plywood floor
below. A load restraint system is incorporated within the body and lashing
rings are also provided in the floor.

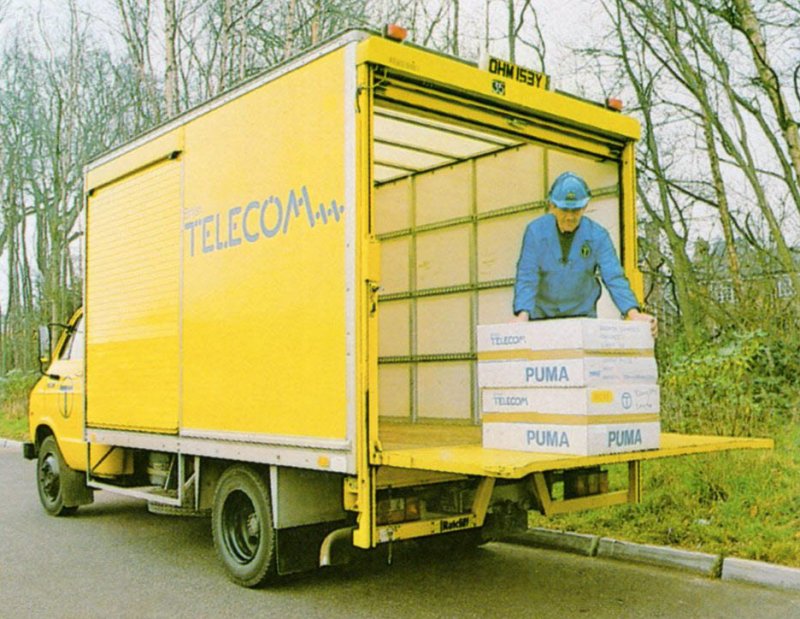

The standard vehicle is supplied with a full width rear

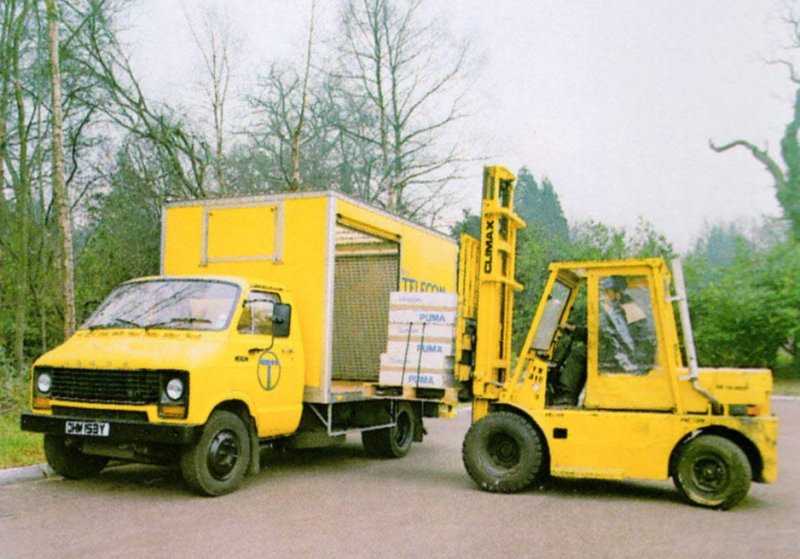

roller shutter, a body side roller shutter, a 500kg capacity tail lift, and
at the front of the body a hinged flap which simplifies the carriage of long
equipment, such as poles.
A four cylinder 3.8 litre diesel engine is standard, with a
fuel tank capacity of 25 gallons. At approximately 16 mpg this gives the
vehicle a range of about 400 miles.
Utilisation
General store carrying duties.
Optional extras
Dual passenger seat
Side entry position can be varied
Larger engine
5 speed gearbox
Larger fuel tank
Vehicle code - 613
Delivery time: 4 months
Economic service life: 12 years
| Weights (typical) |
Kgs |
| Front axle |
2050 |
| Rear axle |
3850 |
| GVW |
5200 |
| GTW |
7500 |
| Kerbside weight |
3235 |
| Payload |
1900 |
| Allowance for personnel |
75kg per person |
| Taxation class |
HGV |
| |
|
| Dimensions |
Metres |
| Wheelbase |
4.03 |
| Overall height (unladen) |
3.15 |
| Overall width (excluding mirrors) |
2.30 |
| Overall length |
7.16 |
| Body height (interior) |
2.08 |
| Body width (interior) |
2.28 |
| Body length (interior) |
3.66 |
| Track front (approx) |
1.70 |
| Track rear (approx) |
1.60 |
| Approximate volume of body |
17.4 cu metres |
Taken from the BT Motor Transport Guide March 1984
