| Description |
Trailer, Injection Welding |
| Make |
|
| Model |
|
| Type |
|
| Body Builder |
|
| Use |
|
| Registration Number |
|
| Code No. |
807 |
| Date of picture |
1984 |
Trailer description

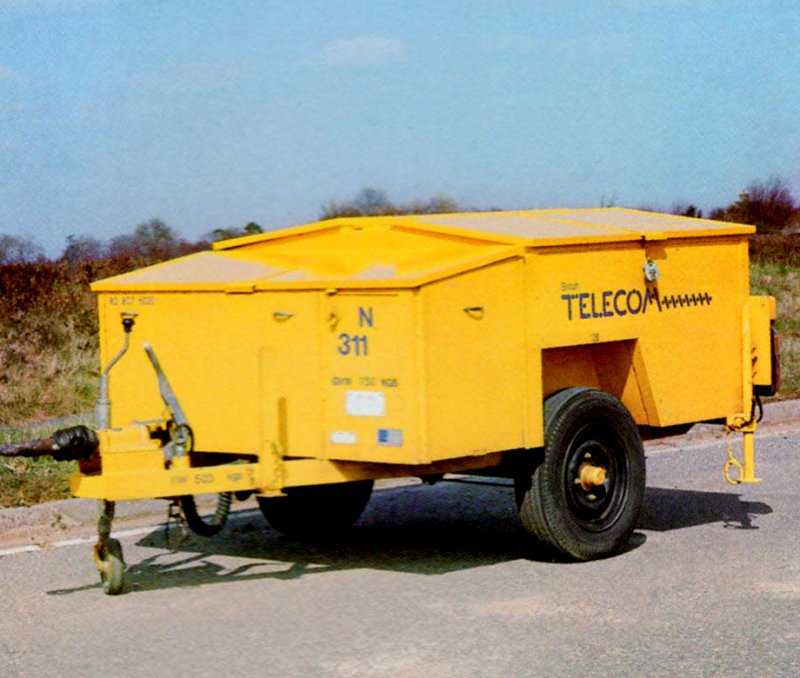

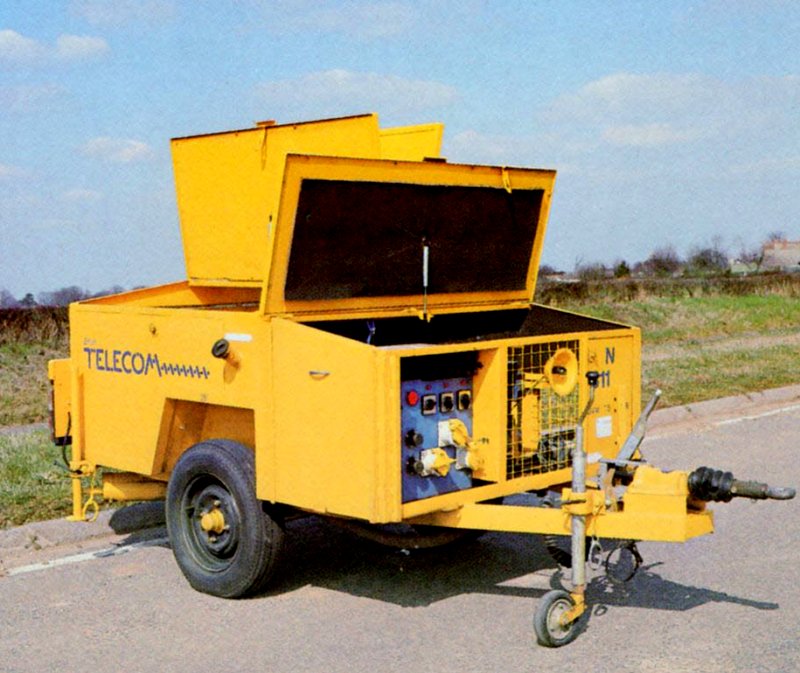

This is a steel chassis trailer, having a box body incorporating side lids and a
drop tailboard. The body is internally shaped to hold the BT range of injection
welding equipment with additional stores space and a full width tool tray.
The generator and compressor are powered by a 8.2kw (11hp)
petrol engine which is started by a manually operated recoil starter. All of
these units are housed in a separate compartment and will operate for eight
hours without the need to refuel.
Trailer data
| Gross weight |
750kg |
| |
|
| Dimensions |
Metres |
| Overall height |
1.15 |
| Overall width |
1.58 |
| Overall length |
2.80 |
| |
|
| Brakes |
Overrun mechanical |
Compressor performance
Pressure 6 bar (87psi)
Air supply 22 litres/mm (0.777cfm)
Generator performance
4kw at 100 volts AC
1 amp at 24 volts DC
Delivery time: 4 months.
Economic service life: 15 years.
Taken from the BT Motor Transport Guide March 1984
|
