Trailer, Cable Drum No's 1, 2A, 3 and 4 |
| Make |
|
| Model |
|
| Type |
|
| Body Builder |
Cable transportation |
| Use |
|
| Registration Number |
|
| Code No's |
858, 860, 859 and 865 |
| Date of picture |
1984 |
Trailer Description
The range of trailer drum trailers (CDT5) comprises No 1 2a, 3 and 4. They are
designed to carry drums of varying weights, diameters and widths. All of the
chassis are of steel construction and each trailer is equipped with hand
operated hydraulic drum handling facilities. The trailers incorporate rear
steady legs and aerial mast supporting brackets. All trailers are fitted with
mechanical safety devices to secure the loaded drum in the raised position.
The No 2 trailer was designed for operating in conjunction
with the R&LC vehicle or other light cabling duties, whilst the No 3 was
primarily designed for use with the PE3 for aerial cabling work.
Trailer data
| Gross weight kg |
No. 1 |
No. 2A |
No. 3 |
No. 4 |
| Gross |
3469 |
980 |
2025 |
6160 |
| Unladen |
884 |
300 |
500 |
1320 |
| Max drum weight |
2585 |
680 |
1525 |
4840 |
| |
|
|
|
|
| Dimensions Metres |
|
|
|
|
| Overall height |
1.72 |
1.54 |
1.14 |
2.12 |
| Overall width |
2.28 |
1.88 |
2.19 |
2.50 |
| Overall length |
3.86 |
2.80 |
3.27 |
4.51 |
| Max drum diameter |
2.30 |
1.07 |
1.52 |
2.75 |
| Max winch width |
1.32 |
1.07 |
1.12 |
1.50 |
| |
|
|
|
|
| Spindle Dimensions (mm) |
|
|
|
|
| Length |
1550 |
1240 |
1530 |
1650 |
| Outside diameter |
75 |
50 |
50 |
75 |
| Inside diameter |
40 |
32 |
25 |
40 |
| |
|
|
|
|
| Brakes |
Overrun mechanical |
Overrun mechanical |
Overrun mechanical |
3 line air |
Delivery time: 3 months.
Economic service life: 15 years.
Taken from the BT Motor Transport Guide March 1984

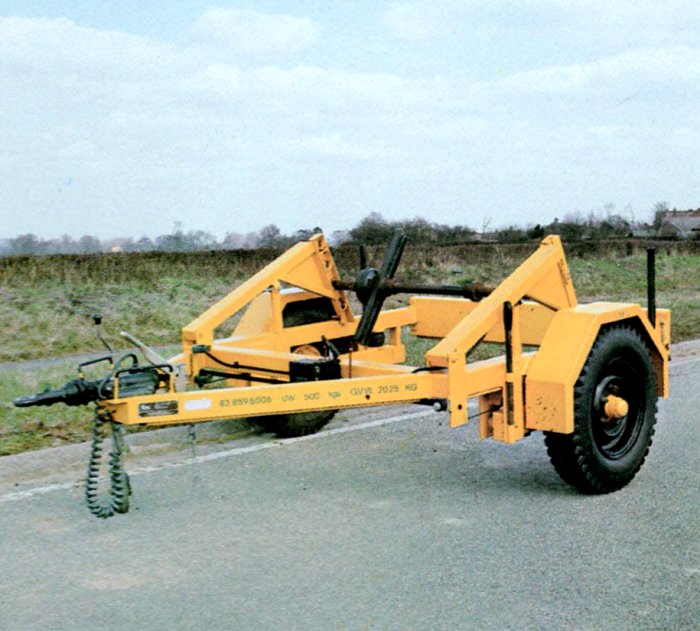

Trailer, Cable Drum No. 2A

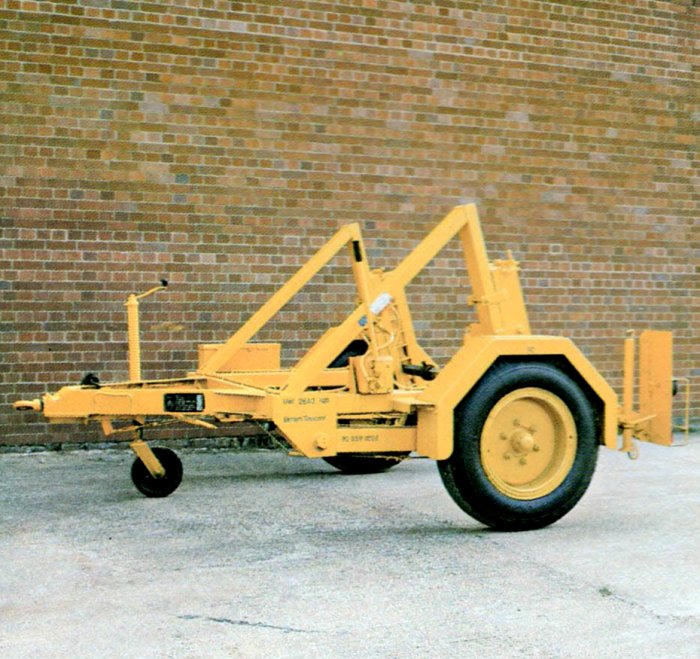

Trailer, Cable Drum No. 2A

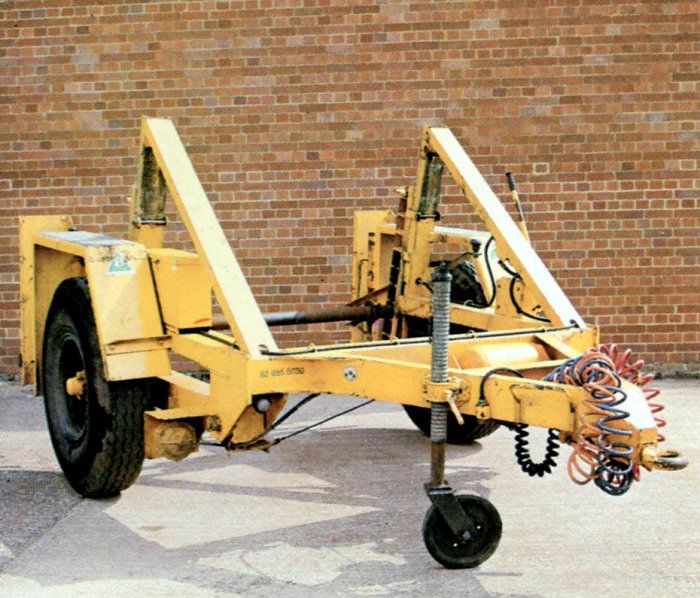

Trailer, Cable Drum No. 1

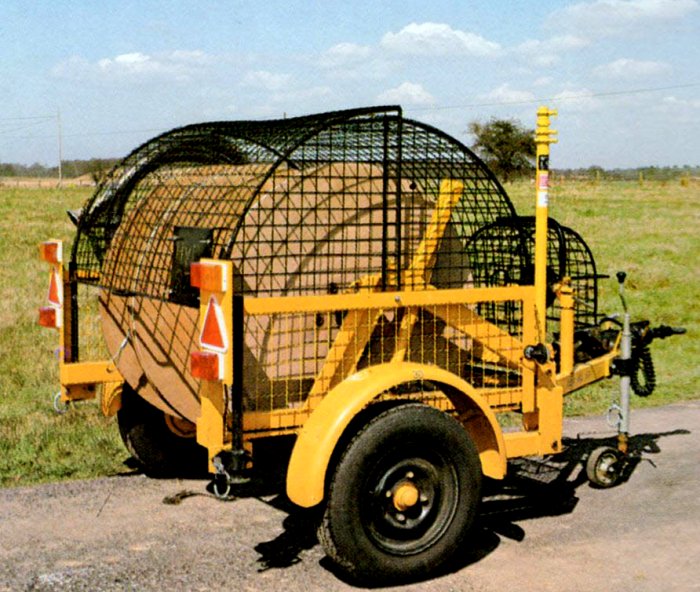

Trailer, Cable Drum No. 3

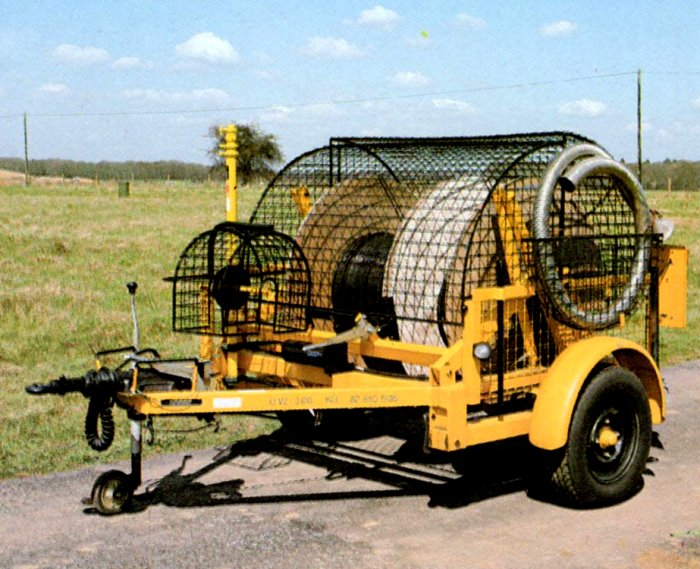

Trailer, Cable Drum No. 4
|
