| Description |
Roller, Vibrating |
| Make |
Greens |
| Model |
|
| Type |
|
| Body Builder |
|
| Use |
Compaction of backfill |
| Registration Number |
|
| Code No. |
739 |
| Date of picture |
1984 |

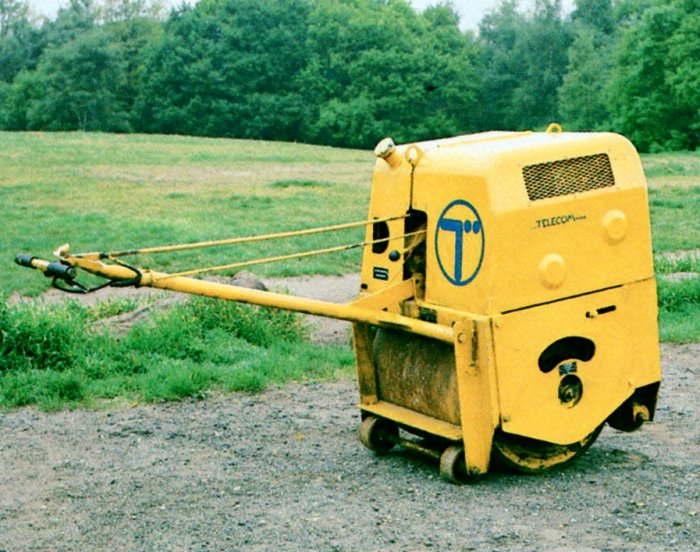

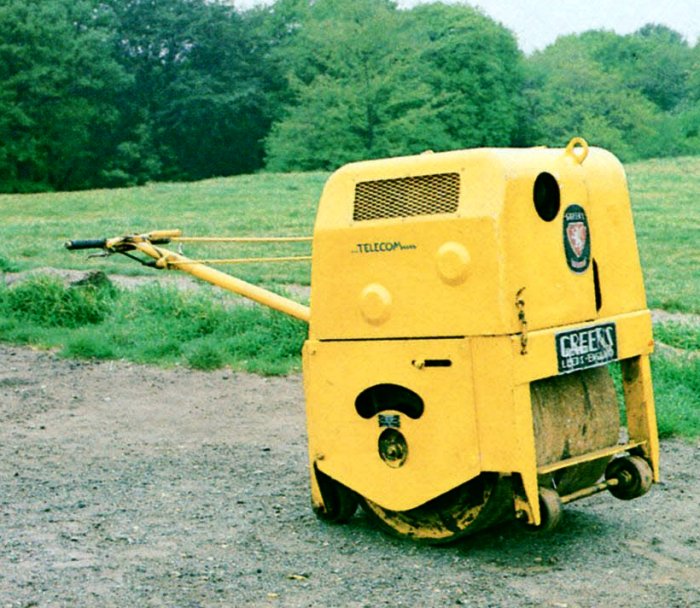

Roller description
This machine is pedestrian controlled and is powered by a 260cc diesel engine.
The roll is approximately 700mm wide and is mounted so that the roller can be
used to compact close to walls and other vertical surfaces. The roller is
equipped with a water tank which supplies a sprinkler bar. A trailer is
available for transportation.
Utilisation
Compaction of backfill.
Trailer data
| Gross weight |
533kg |
| |
|
| Dimensions |
Metres |
| Overall height |
1.22 |
| Overall width |
0.788 |
| Overall length |
2.14 |
| |
|
| Max speed forward and reverse |
|
| Operating |
1.3mph |
| Travelling |
2.4mph |
| |
|
| Water tank capacity |
34 litres (7.5 gals) |
Delivery time: 10 weeks.
Economic service life: 12 years.
Taken from the BT Motor Transport Guide March 1984
|
