BELL No. 65A

Trembler bell used in Telephone No. 306 and 326.

The original coils (1/SCO/337) had the termination tags in line with the base plate.  In 1953 different coils (2/SCO/337) could be fitted which had the termination tags pointing away from the base plate.

Fitted with a Bell-gong No. 2A.

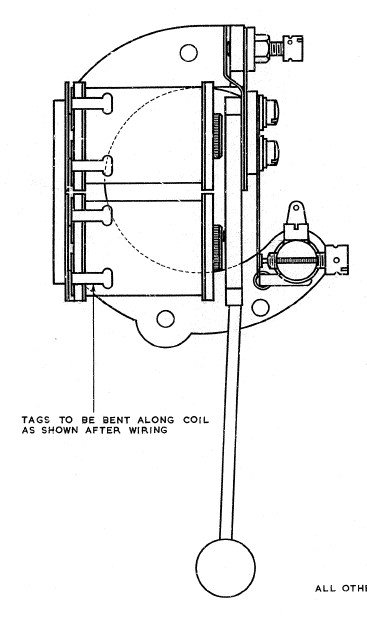

Drawing - 62910 (Dated 1938).

How to adjust the Bell No. 65


1/SCO/337                                                                        2/SCO/337

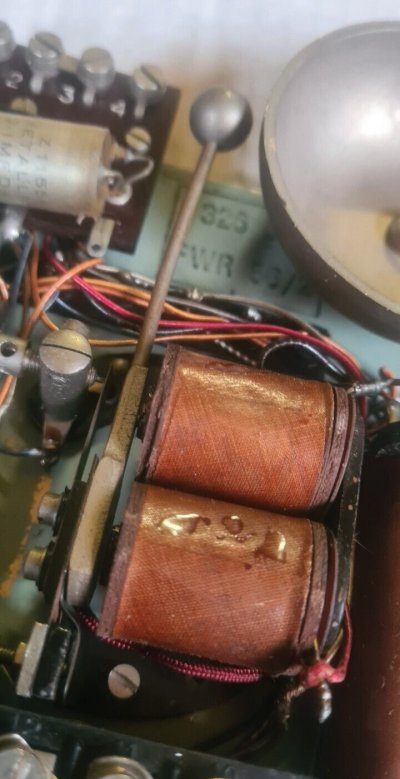

Bell No. 65A fitted on a Telephone No. 326 chassis
