BELL, MAGNETO 1000ohms | ||||||||
|

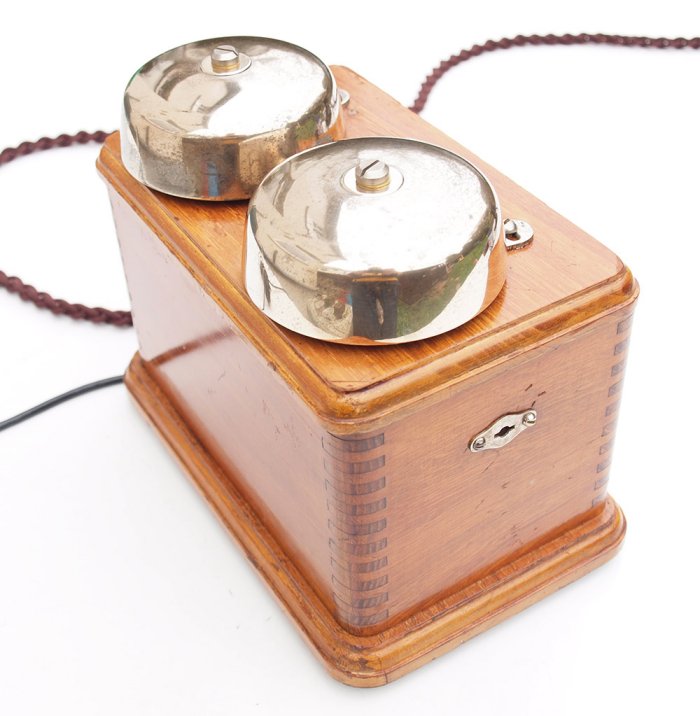

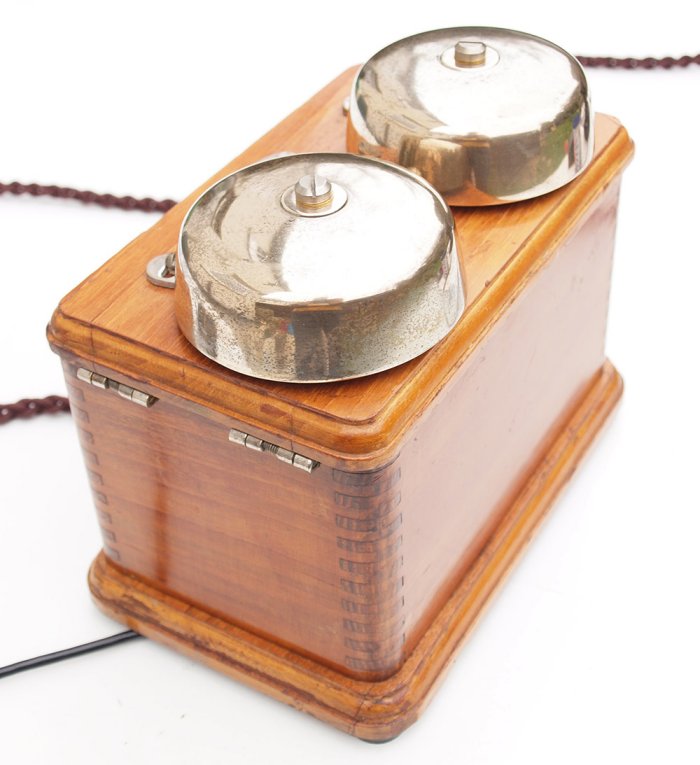

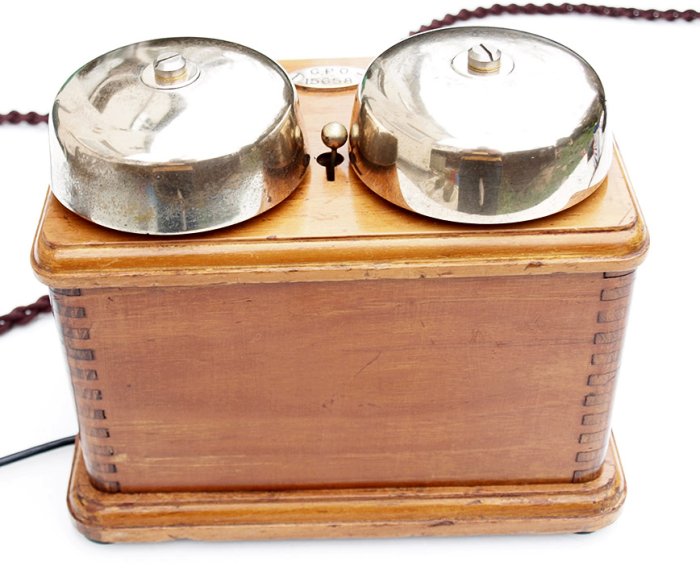

A wooden wall mounted bell, which was used as an extension bell or when a
telephone had no internal ringer.

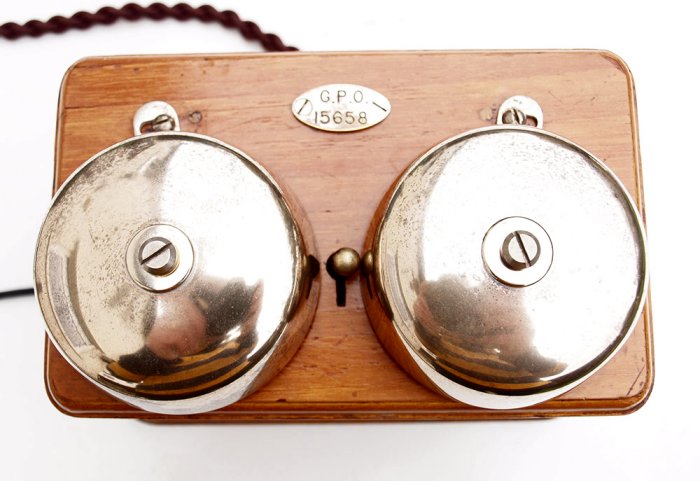

The GPO serial number is normally stamped on the rear and also marked on the front on an oval brass plate. This practice was later stopped when the GPO found it impracticable to document all the serial numbers. The lid is locked by means of a key. Bell resistance is 1000ohms. Superseded by the Bell No. 1. See Also Bell, Magneto 100ohms.

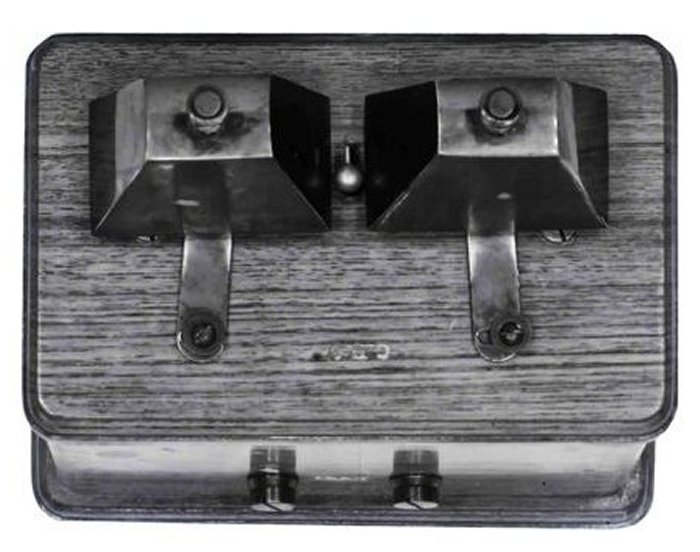

Bell, Magneto with cow gongs

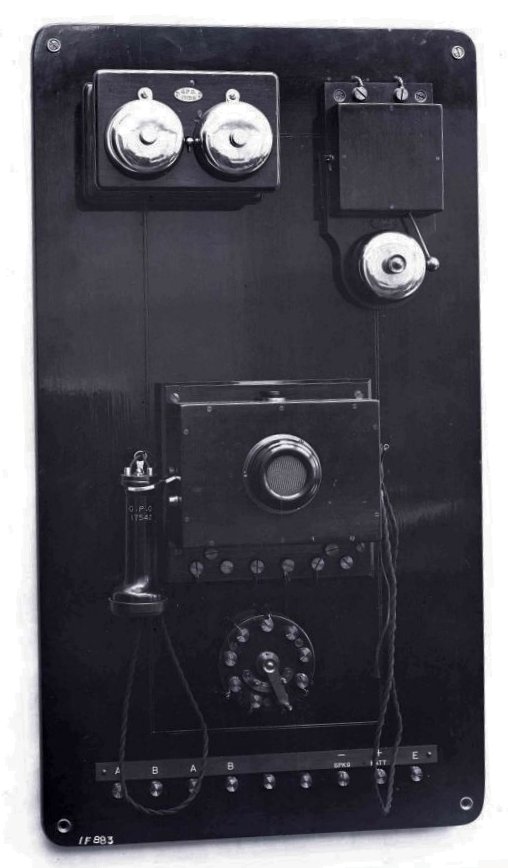

A Bell, Magneto is fixed to the top left of the wallboard

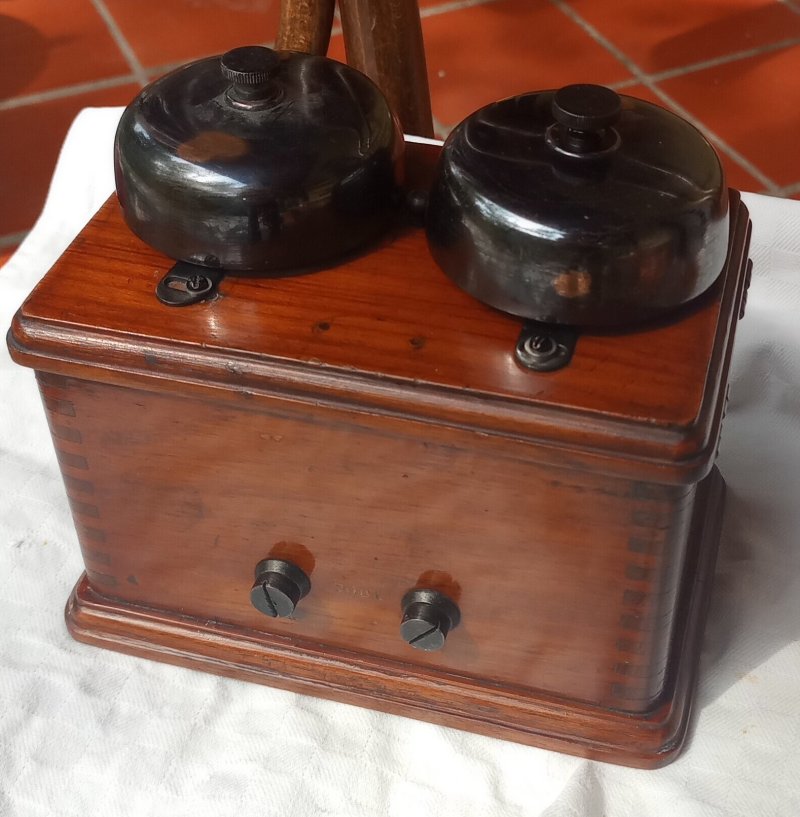

The gongs should be painted black
|
||||||||
