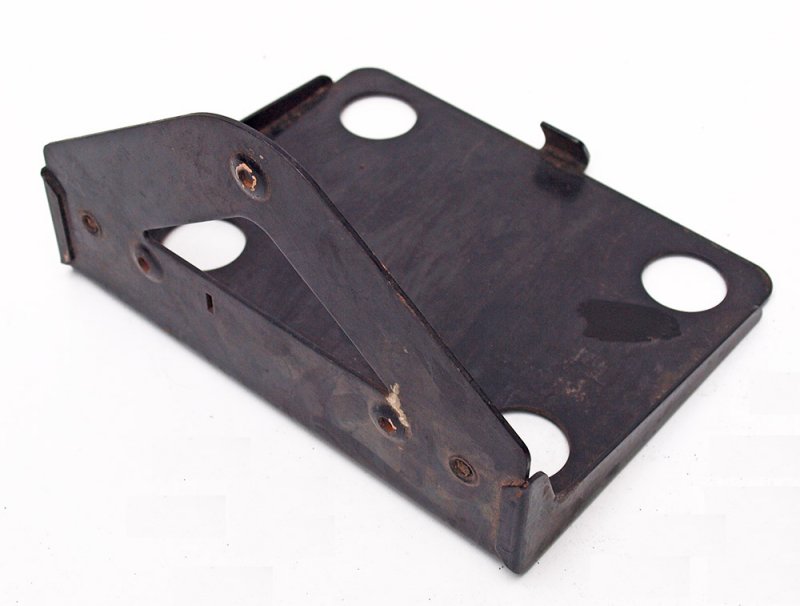

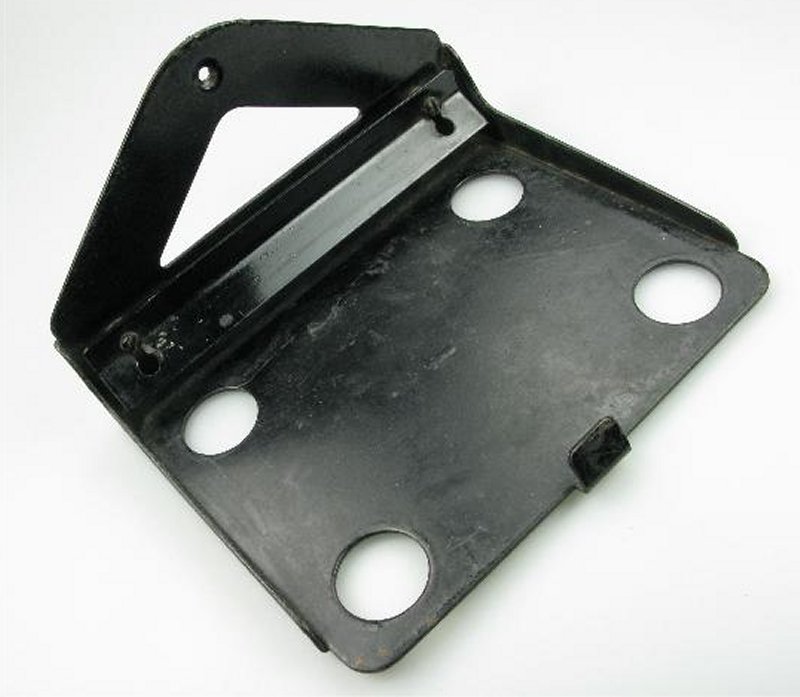

BRACKETS, TELEPHONE No. 12
This steel bracket was used for wall mounting Bakelite handset telephones, of the 100 and 200 series, without a tray.

The clamping plate fixed to the upright is removed, the telephone placed on the shelf and then the clamping plate is replaced and locked in place by the two screws.

The bracket was superseded by the Bracket, Telephone No. 14 except for subscribers Coin Box installations.

Includes:-
3 x screws for fixing.

To be requisitioned as required:-
1 x Hook, Receiver, T, Black, Gilded or Nickelled.

Drawing - 9930.
