BRACKETS, TELEPHONE No. 14
This Bakelite bracket was used for wall mounting Bakelite handset telephones, of the 100 and 200 series, with or without a tray.  Within the body of the bracket are 6 terminations which are covered by a metal plate.

The bracket includes:-
3 x screws for Wood, No. 8, Rd. Hd.

To be requisitioned separately as required:-
1 x Cord, Instrument No. 3/85 M, 9" or 1 Cord, Instrument No. 6/29 M, 9".
1 x Hook, Receiver, Y, Gilded or Nickelled.

This bracket supersedes the Bracket, Telephone No. 12 except for subscribers Coin Box installations.

Colours
Black, Chinese Red, Ivory and Jade Green.

Drawings - 63112 and 63112.

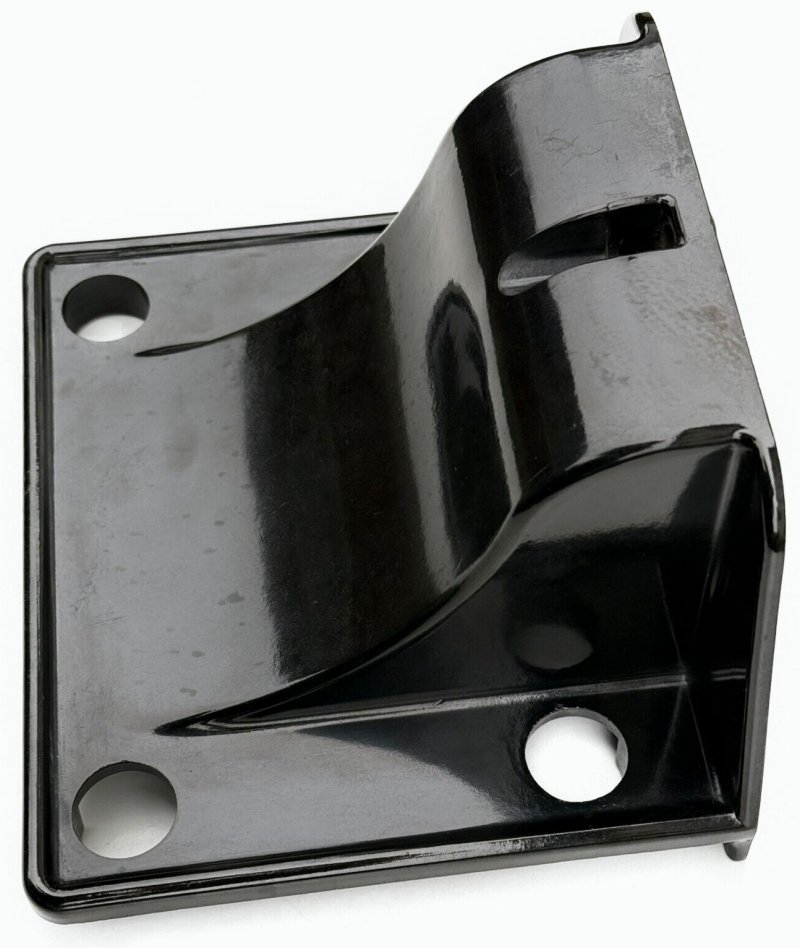

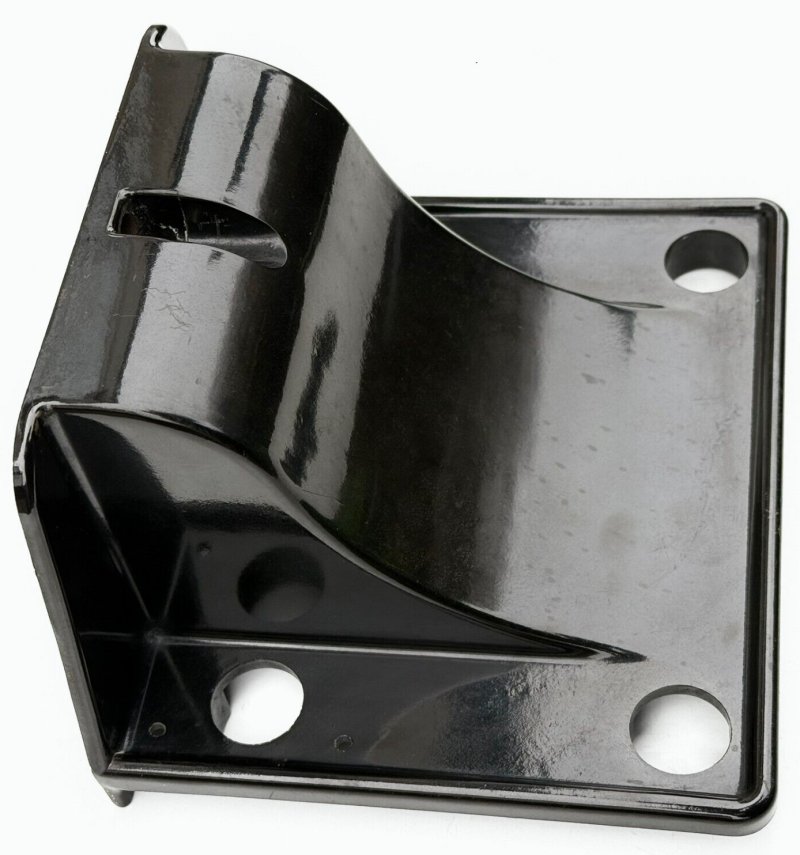

Front view

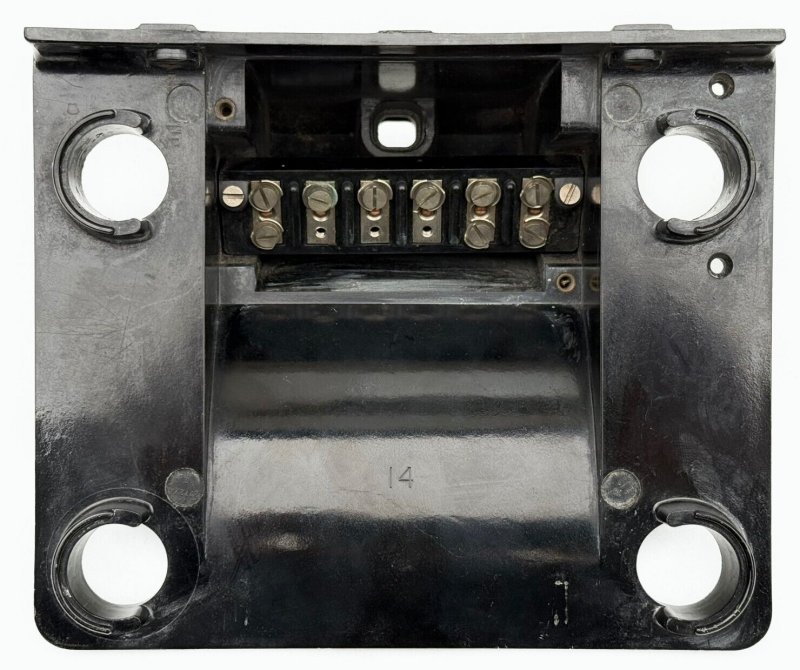

View inside the bracket showing the terminals
The metal cover has been removed

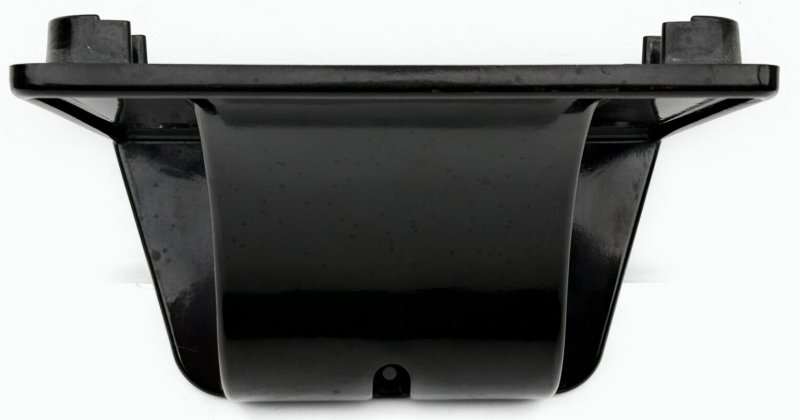

The telephone feet locate in the four large holes
