BELL TELEPHONE MANUFACTURING Co.
(BTMC) ANTWERP
Telephone No. 2264

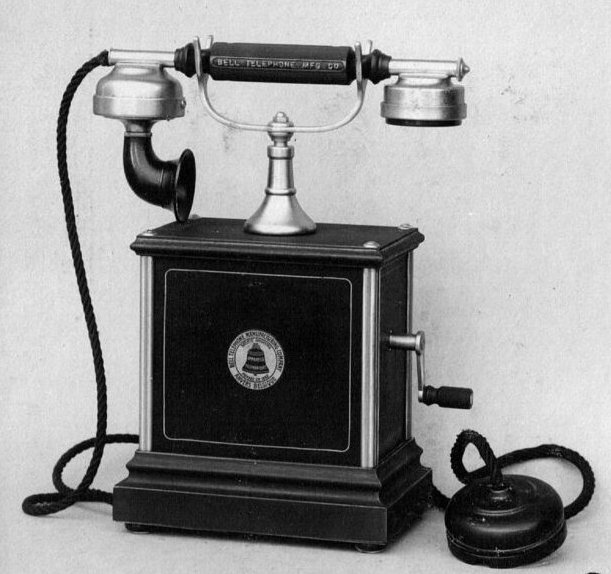

This is a desk top telephone that has all its mechanical components enclosed in a metal casing that protects them from dust and damage.  Known in the UK as a Corporation set.

2264A - Parallel connection with 1000ohm bell ringer.
2264B - Series connection with 120ohm bell ringer.

These telephones were also sold in different combinations.  These are called the Model No. 22264.

Mobile Telephone Set
for local networks and intercity lines
(magnetic calling and local calling)
No. 22264

22264A
A Portable Microtelephone Set for Parallel Connection comprising one Telephone No. 2264A.

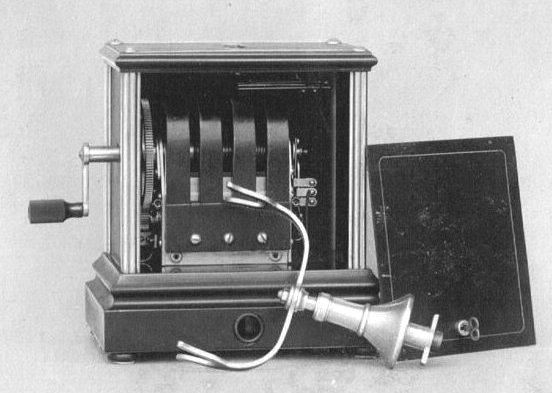

Includes a magneto generator with 4 magnets No. 2039A, polarised ringer No. 2018B (resistance 1000ohms), induction coil No. 2221A, sliding switch No. 2033A, microtelephone no. 2258 A with green silk cord containing 4 conductors No. 2062D, a green silk cord containing 6 conductors No. 2055 and connecting rosette No. 2007.

Dimensions: 354 x 180 x 124 mm.


22264B
The Telephone is constructed as the No. 22264A but for Series connection.

Includes a magneto generator with 4 special magnets No. 2039 and a polarised ringer No. 2018A (120ohm resistance),


Taken from the 1910 BTMC Catalogue
