2352
|
|
2355
|
|
2356
|
|
2357A
A magneto bell (1000ohm resistance), specially constructed for use
in installations where a loud and silent call is desired, and which
can be heard over a considerable distance if necessary. The bell is
protected by a cast iron cover, and the entire assembly is mounted
on a solid metal frame. Several of these bells can be placed in the
same circuit by using a magnetic generator whose voltage is
appropriate for the number of bells to be operated simultaneously
and for the resistance of the line through which the current must
pass.
Nickel-plated metal bell gongs No. 2222A, 175 mm in diameter.
Net weight: approx. 3.9 kg.
|
|
2358A
A
magneto bell identical to No. 2357A, but with bell gongs No. 2223A, 150mm in
diameter.
Net weight: approx. 3.5 kg.
|
|
2359A
A
magneto bell identical to No. 2357A, but with bell gongs No. 2227A, 127mm in
diameter.
Net weight: approx. 3.1 kg.
|
|
2361
|
|
2363
|
|
2364
|
|
2371
|
|
2373A
A bell with gongs mounted on a small metal plate,
comprising: a special polarised ringer No. 2012A (resistance
1000ohms), assembled in a black metallic casing with round bell
gongs No. 2234B.
Height: 202mm.
2373C
A bell
identical in construction to the No. 2373A but with a special
polarised ringer No. 2012C (120ohm resistance).
2373D
The same construction as No. 2373A, but with cow gongs No. 2210.
2373E
The same construction as No. 2373C, but with cow gongs
No. 2210.
|
|
2374B
A Magneto bell in a sealed metal case, with nickel-plated metal parts, comprising: a polarised ringer No. 2020A
(1000ohm resistance), round bell gongs No. 2016 and a key lock.
Dimensions: 168 x 162 x 121mm.
2374C
A bell constructed as
the No. 2374A, but with a polarised bell ringer No. 2020B (120ohm
resistance).
|
|
2375A
A Magneto bell with a polished walnut case including a polarised ringer
No. 2022A (1000ohm resistance), lightning protector No. 2009, round
bell gongs No. 2215 and a screw-on cover.
Dimensions: 146mm x
137 x 118mm.
2375B
The same construction as the No. 2375A
but with a polarised ringer No. 2022B (120ohm resistance).
|
|
2376A
A Magneto bell with a walnut case containing: a polarised ringer
No. 2022A (1000hm resistance), lightning protector No. 2009, round
bell gongs No. 2215 and a lockable lid.
Dimensions: 146 x 137
x 118 mm.
2376B
A bell constructed as the No. 2376A
but with polarised ringer No. 2022B (120ohm resistance).
|
|
2377A
A Magneto bell with a walnut case including: polarised ringer No.
2023A (1000ohm resistance), lightning protector No. 2009, round
bell gongs No. 2206 and a screw-on cover.
Dimensions: 238 x 144 x
119 mm.
2377B
The same device as the No. 2377A but with
polarised ringer No. 2023B (120ohm resistance).
|
|
2378A
A Magneto bell in a walnut box, nickel-plated metal parts.
Comprising: a polarised bell ringer No. 2022A (1000ohm resistance),
cow bell gongs No. 2210 and a screw-on lid.
Dimensions: 152 x 145
x 118 mm.
2378B
A bell similar to the No. 2378A but with a
polarised bell ringer No. 2022B (120ohm resistance).
|
|
2379
|
|
2380
|
|
2382A
DC Bell in a walnut case with a satin finish, complete with
polarized bell (resistance of 1000ohms) and round bell gongs.
On
later models the front cover was fixed by four screws, in the
corners.
Dimensions: 145 x 105 x 117mm.
Net weight: approx.
0.840kg.
|
|
2383A
DC bell, identical to No. 2382A but with cow bell gongs.
|
|
2384B
DC bell in a polished walnut case with a polarized bell
(resistance of 1000ohm) and round bell gongs.
Dimensions (mm): 165
x 140 x 125.
Net weight: approx. 1.25kg.
|
|
2385
Steel cased bell with magneto bell ringer (1000ohms) with two round
gongs.
2385A has no capacitor but all other variants do
contain a capacitor.
Dimensions (mm): 152 x 89 x 117. |
|
2386
Magneto bell containing two polarised ringers. Round
bell gongs on one ringer and cow bell gongs on the other.
|
|
2387
Wooden cased bell with cow gongs.
|
|
2388
Steel cased bellset with magneto bell ringer (1000ohms), 2 gongs
and capacitor.
Dimensions (mm): 159 x 169 x 50.
|
|
2389
Steel cased bellset with 2 magneto bell ringers (1000ohms), 3
gongs and 2 capacitors.
Dimensions (mm): 232 x 155 x
54.
|
|
2413
Dome style bell with one gong.
Diameter - 77mm.
2413A - 3ohms
2413G - 100ohms
2413H - 200ohms
2413J -
500ohms
|
|
2414
|
|
2416
Wooden cased DC bell with one round bell gong.
2416A - 3ohms
2416B - 200ohms
2416J - 500ohms
|
|
2417
Wooden cased DC bell with one cow gong.
Similar to
the 2416.
2417A -
3ohms
2417H - 200ohms
|
|
2418
Dome style bell with one gong.
Diameter - 80mm.
2418A - 3ohms
2418B - 100ohms
2418C - 200ohms
2418D -
500ohms
|
|
| |
|
2488
Steel cased bellset with magneto bell ringer (1000ohms) 2 gongs
and capacitor.
Tropicalised version of the 2388.
Dimensions (mm): 159 x 169 x 50.
|
|
2489
Steel cased bellset with 2 magneto bell
ringers (1000ohms), 3 gongs and 2 capacitors.
Tropicalised version of the 2389.
Dimensions (mm): 232 x 155
x 54.
|
|
2556
|
|
2560
|
|
2612
|
|
2621
|
|
2634
A steel cased Magneto bellset complete with capacitor, induction coil, and
a polarized bell.
|
|
2638
|
|
2676
A steel cased Magneto bellset complete with capacitor, induction coil, and
a polarized bell.
|
|
2680
|
|

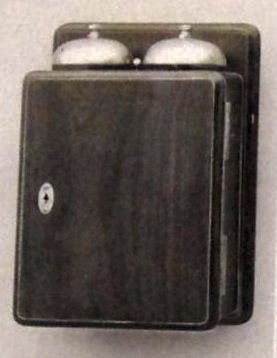

2698
Wooden bellset with Capacitor, Induction Coil,
Ringer (1000ohms) and two gongs.
|
|
2715
Steel cased bellset with bell ringer, capacitor and
induction coil.
2715A
As above but
tropicalised.
|
|
| |
|
