L. M. ERICSSON
TELEPHONE AB 165

AB 165 (Old Catalogue No. 319)

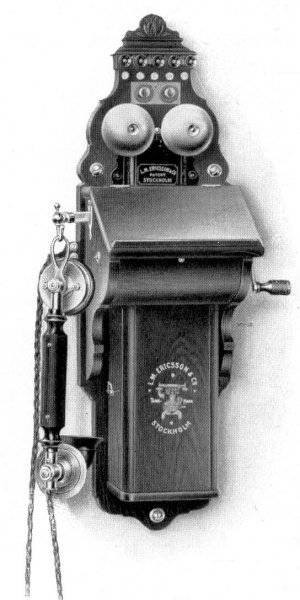

A wall mounted telephone with framework of polished walnut, constructed to hold 2 cells RK 240 or RK 410 (Old Cat. No. 596 or 590).

Micro-telephone RE 4050 (No. 530) with cord RS 6500 (No. 2061) suspended on switch-hook.

Generator RH 3100, 3-magnet, which will ring satisfactorily through the ringer and a line resistance of 15000 ohms.

Ringer of 300ohms resistance.

Dimensions:
Height of Backboard: 575 mm.
Width of Backboard: 170 mm.

Weight: 5.3 kg.

In both the 1905 and 1912 Ericsson Telephone Catalogue
