L. M. ERICSSON
TELEPHONES AB 232 and AB 233
TELEPHONE - WALL

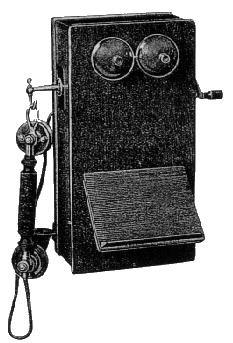

Magneto Telephone

AB232
The AB232 is fitted with a 3 magnet generator and 300 ohm bell.  It is suitable for medium distance working.

AB 233
The AB233 is fitted with a 4 magnet generator and a 1000 ohm bell.  This telephone is suitable for long distance working.

Both telephones have woodwork of matt polished oak, with hand micro telephone No. RE4014 and cord RS6002.  The terminals are enclosed.

Both these instruments, although cheaper and not so elaborate in design and finish as the AB230 or AB535 types, are thoroughly reliable and efficient in service.






Catalogue No. Induction Coil Generator Magnets Ringer Resistance (ohms) Weight (kg)
AB 123 RH 3101 3 300 4,3
AB 124 RH 4381 4 1000 4,8
AB 232 RH 3101 3 300 5,6
AB 233 RH 4381 4 1000 6,1
AB 700 RH 4381 4 300 7,3
AB 702 RH 5602 5 2000 7,8


Taken from the L. M. Ericsson Telephone Catalogue No. 122 (1930)
