L. M. ERICSSON
TELEPHONE No. AC 1010


TELEPHONE - TABLE

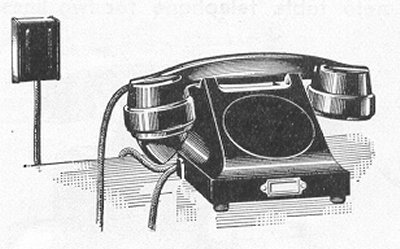

Extension table telephone for LB systems
Small model without generator or bell

AC 1010
This telephone is designed for use in connection with telephones of types AB and AC.  It should be placed where the signals from the main telephone can be heard by the person using the extension telephone.  Calls from one telephone cannot be heard in the other.

Parts:
Microtelephone RE 1042 of black Bakelite with removable capsule transmitter RC 4000/40, 40ohms, and cord RS 6162.
Terminal block RK 8000/5.
Line cord RS 9507.
Case of black Bakelite.

Dimensions:
Height 118mm, width 233mm, depth 150mm.

Weight 1.4 kg.



Taken from the L. M. Ericsson Telephones and Signalling Material Catalogue No. 188 (1934)
