DAL 1001 (replaces AC 570)

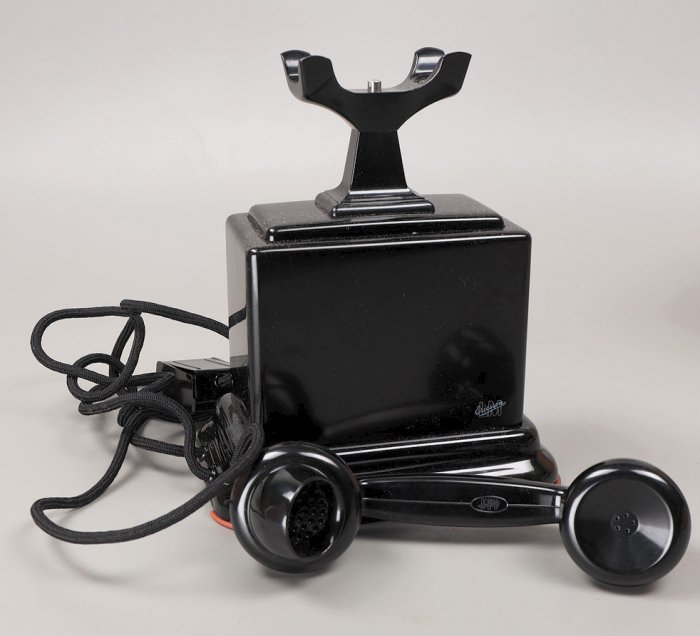

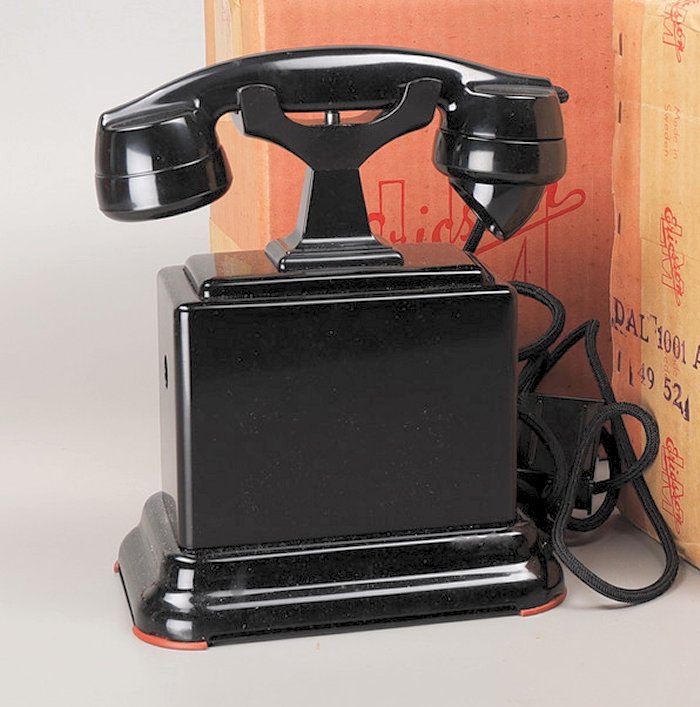

This device has a cover made of black lacquered sheet metal. The has strong generator and is specially intended for very long cables or when several devices are connected terminated in parallel on a long wire. For each device two dry elements BKA 1002 or BKA 2002 are required.

Suitable battery box for these is BKY 1001.

Parts:
Microphone RLF 1020 made of black Bakelite with microphone capsule RLA 1004, 40ohms, and cord TRS 1404, 1250mm.
Transformer REK 10105.
Generator RGH 1401.
Generator crank RGL 1005.
Line cord TRS 1502, 1250mm.
Wall bracket NEF 1006.
Ringer of 2000ohms, consisting of: mechanism KLA 1006.
Bell gong with low tone 0-4951.
Bell gong with high tone 0-4952.

Dimensions:
Height 272mm, width 233mm, depth 150mm.

Weight 5.5 kg.

Taken from the L. M. Ericsson Catalogue No. 610 (1939) - Swedish Translation
