DBA 101
Plastic cased, table, telephone with recall button and bells, called the Diavox telephone.

These were supplied with (Automatic) or without (CB) a dial.

The ringer volume control is in the base.

An article from the Ericsson Review Volume 57 1980

Diavox main page

Known Variants
DBA 101 012/01050 - Dial - Olive green case. Recall.
DBA 101 022/01000 - Dial - Camel case.  Recall.
DBA 101 022/01010 - Dial - Beige case.  Recall.
DBA 101 022/01021 - Dial - Dark red case. Recall.
DBA 101 022/01050 - Dial.
DBA 101 023/01010 - Dial - Beige case.  Recall.
DBA 101 023/01020 - No Dial - Beige case. No recall.
DBA 101 023/01021 - No Dial - Beige case. No recall.
DBA 101 023/01050 - Dial - Olive green case. Recall.
DBA 101 042/01010 - Dial. Recall.

DBA 101 022/01000

DBA 101 022/01000

DBA 101 022/01000

DBA 101 023/01021
Central Battery (CB) variant

Circuit diagram for Dial and CB models
S2 is the dial and when omitted terminals 13 and 14 are linked together
Terminal 2 is the A line wire and terminal 3 is the B line wire.

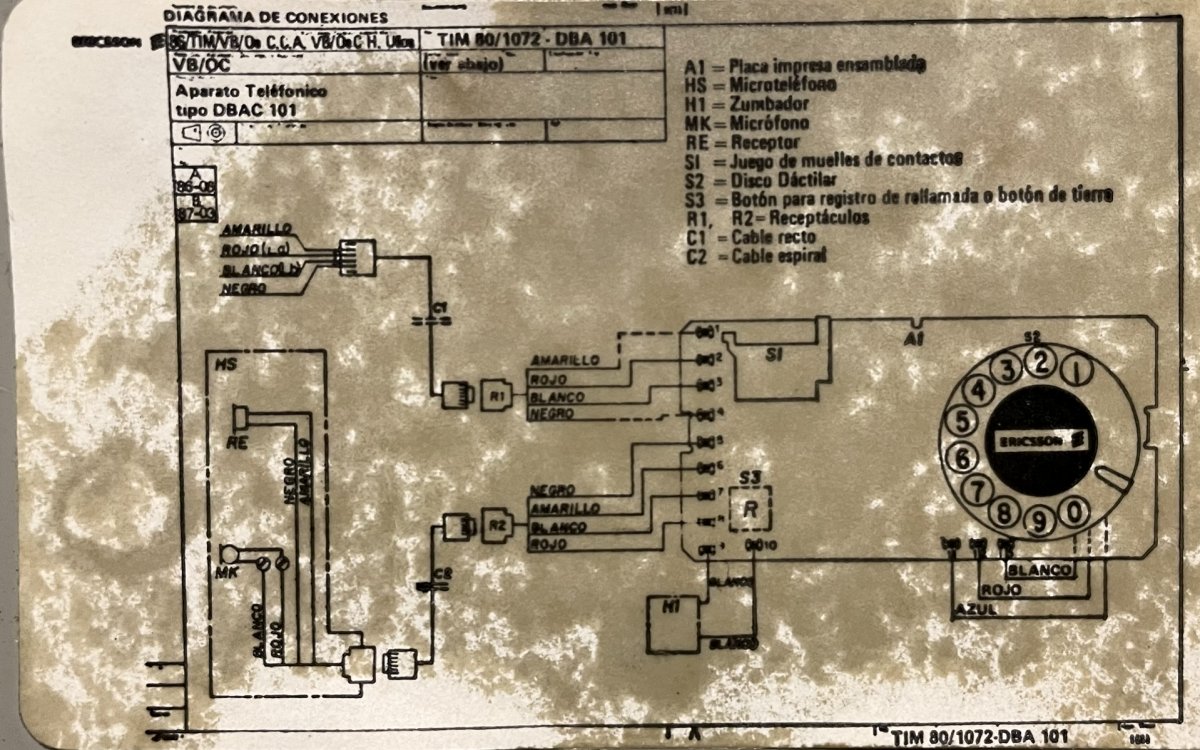

Circuit diagram DBAC 101
Possibly Mexican
Click to enlarge
