DAS 1101 (replaces DE 200)

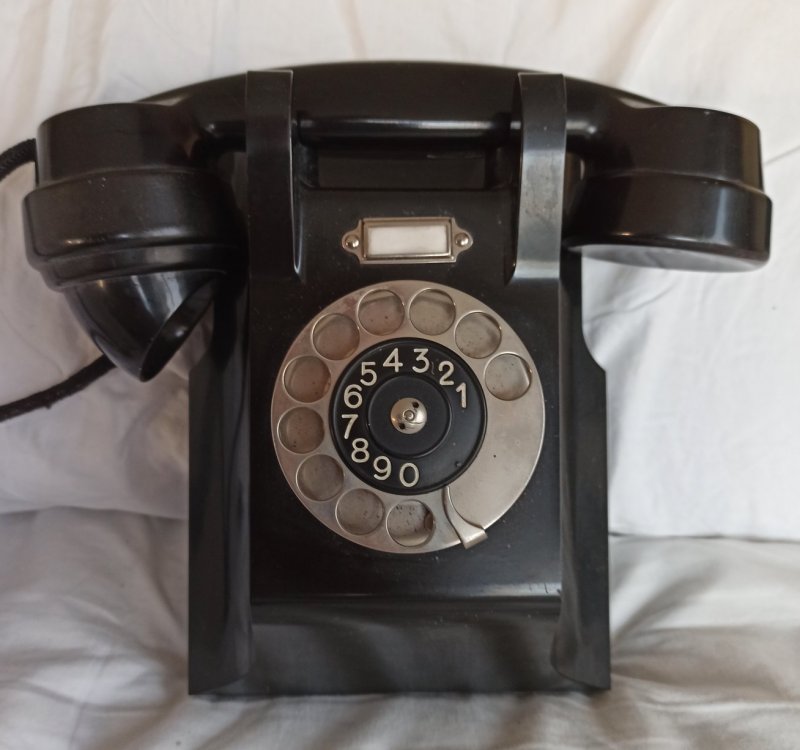

This device in a black backlit cover has a built-in polarized watch with high sensitivity. Whilst similar to the DBN 1001, this telephone has a dial.  The inner parts are mounted on the bottom plate and easily accessible for adjustment.

Parts:
Microtelephone RLF 1001 of black Bakelite with microphone capsule RLA 1001, 200ohms, and cord TRS 1302, 1250mm.
Transformer REK 10104.
Capacitor RKA 7010, 1uF.
Dial RGA 1003.
Ringer of 1000ohms, consisting of: mechanism KLA 1004.
Bell gong with low tone 138 543/l.
Bell gong with high tone 138543/3.

Dimensions:

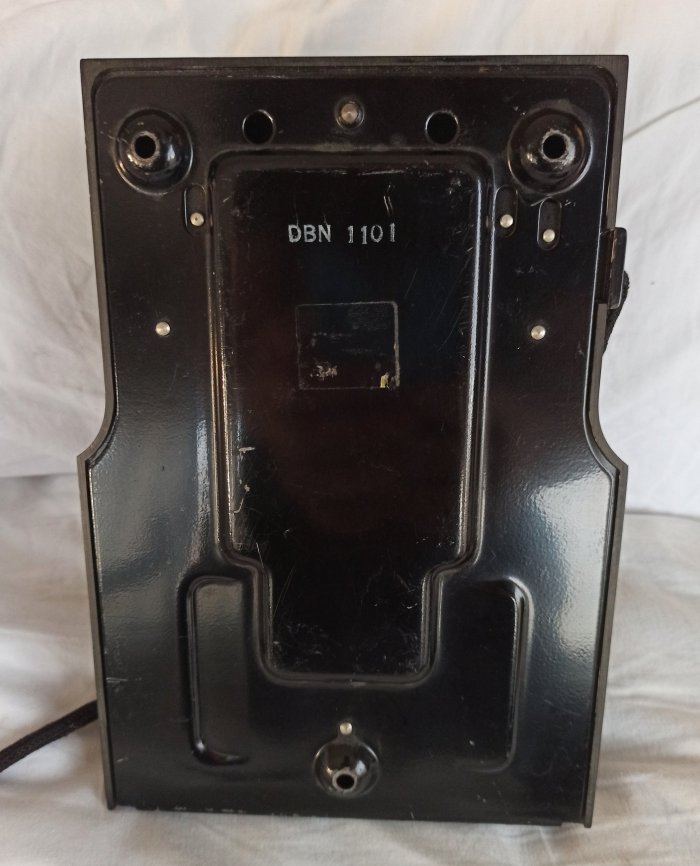

Height 217mm, width 151mm. The dimensions refer to the back plate of the telephone.

Weight 2.5 kg.

Taken from the L. M. Ericsson Catalogue No. 610 (1939) - Swedish Translation

Circuit diagram - 209425.
