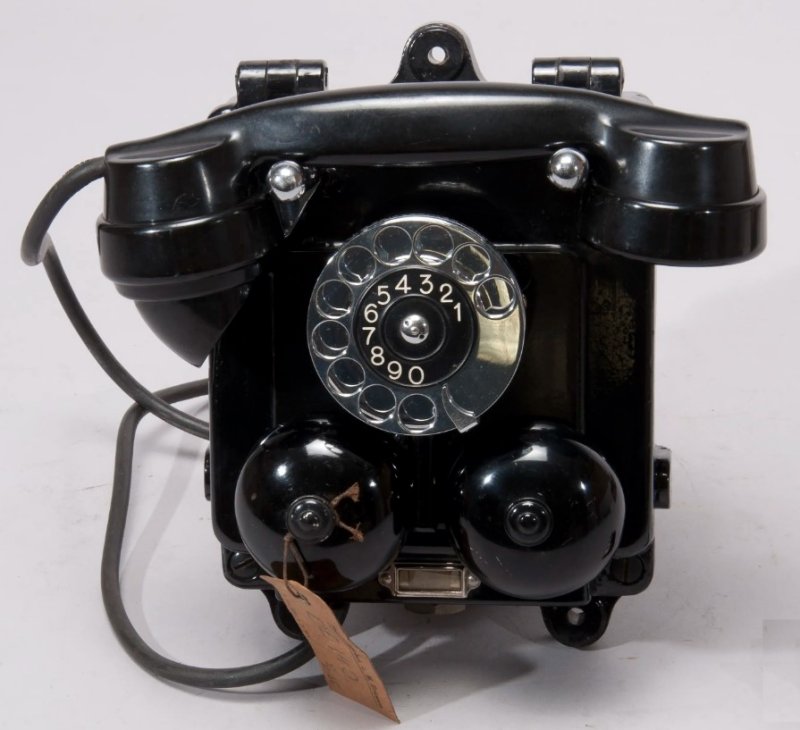

TELEPHONE DBT 2101

TELEPHONE - WALL
Waterproof telephone for CB telephone systems

DBT 2001
This device is intended for use in engine rooms etc.

Similar to the DBT 2011 but is fitted with a dial.

The device has a black lacquered, waterproof cover and is fitted with polarized watch. The cables are inserted to the device from below through waterproof cables screws with gaskets.

Parts:
Handset RLF 1013 made of black Bakelite with microphone capsule RLA 1401, 200ohms, and rubber hose cord TRS 2301, 1500mm.
Dial RGA 2003.
Transformer REK 10104.
Capacitor RKA 7010, 1uf.
Ringer of 1000ohms, consisting of: mechanism KLA 1054.
Bell gong with low tone 138543/7.
Bell gong with high tone 138543/8.

Dimensions:
Height 275mm, width 233mm, depth 160mm

Weight 10 kg.


Taken from the L. M. Ericsson Catalogue No. 610 (1939) - Swedish Translation
