L. M. ERICSSON
TELEPHONE No. 370


TELEPHONE - TABLE
MAGNETO TELEPHONE
FOR TERMINAL STATIONS

No. 370
370.jpg (13661 bytes)This instrument is fitted with a No. 570 transmitter fixed on a movable arm, and a receiver No. 546 with cord No. 2050. A flexible cable No. 2150 is provided between the instrument and the terminal block.

Weight 12.10 lbs.

Price £4 1 0s.

Designed in 1884 by Lars Magnus Ericsson.

In 1890 this telephone was fitted with a handset and called the No. 375.

Renumbered as the AC 100 around 1905




Taken from the Ericsson Telephone Catalogues 1897 and 1903

Introduced in 1885


Designed by Lars Magnus Ericsson this telephone started production in 1885 and was the forerunner to the skeletal telephone 375.  The adjustable swivel arm (swing arm) allowed the user to position the telephone's transmitter in a convenient position for conversing.  The telephone was used by the Australian N.S.W. State Administration in the 1880's and not many are known to exist in Australia.  However, a few still survive in the United States and the United Kingdom, most in private collections.  The primary difference between the two telephones, is that the skeletal (c.1892) employs a handset, whereas the swing arm uses separate components for the transmitter and receiver.

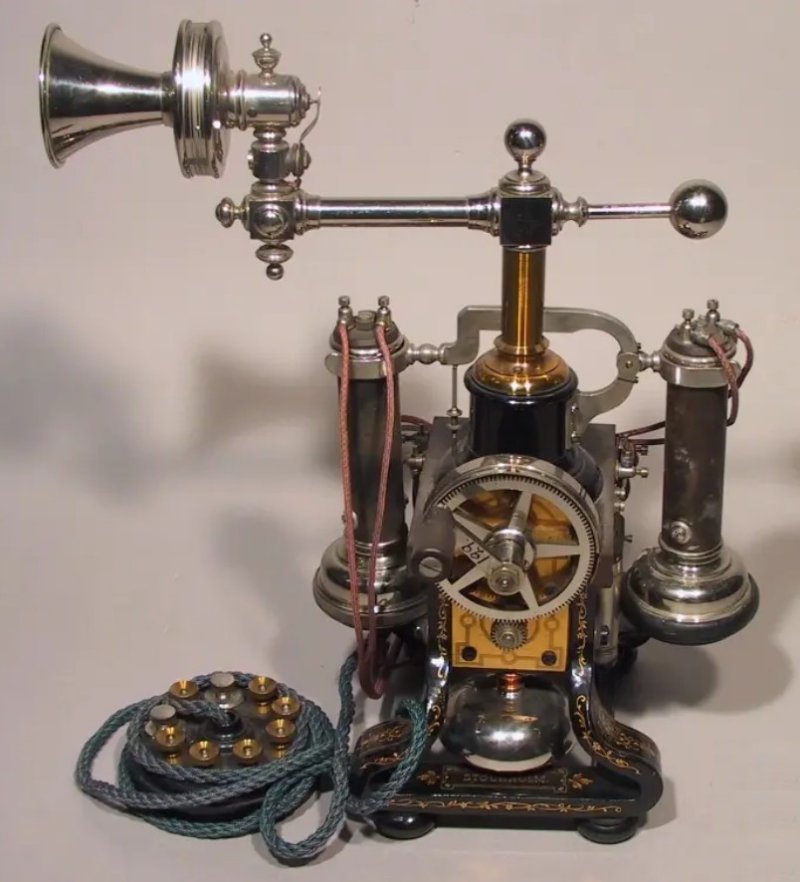

The telephone shown to the right has two receivers.

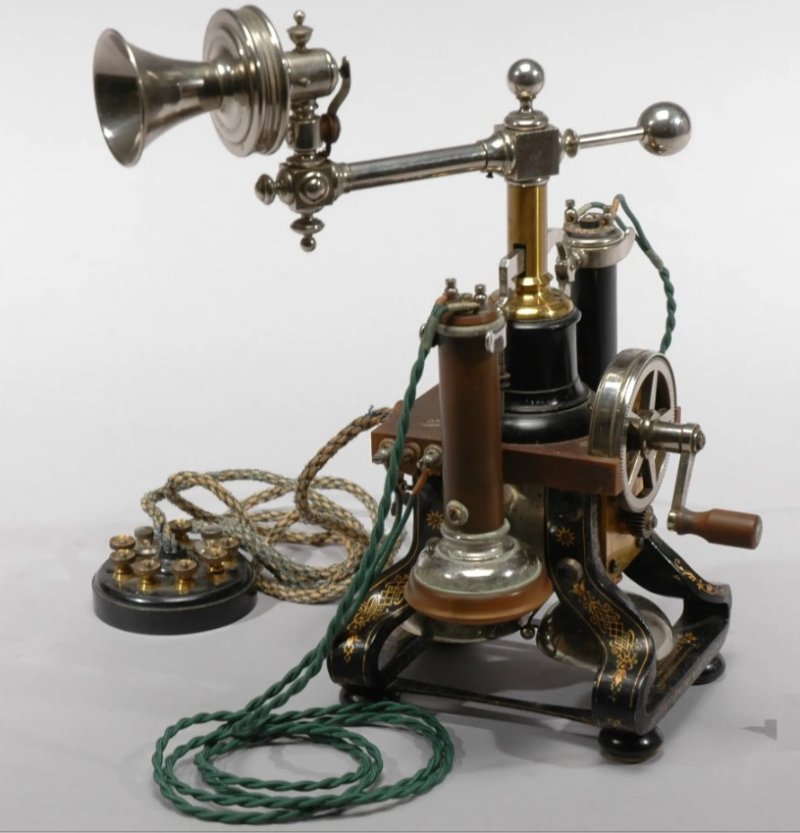

Double receiver



Double receiver

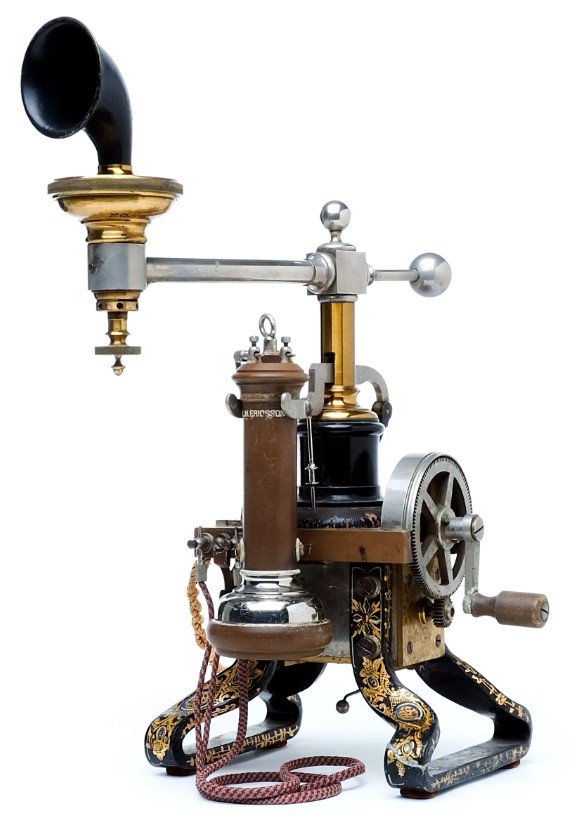

Single receiver
