MICRO-TELEPHONES

HANDSETS and MICRO-TELEPHONES

Originally called a Micro-telephone, the handset made by Ericsson changed over the years and the part numbers changed on regular basis.

There are pictures at the bottom of the page.

Part Number Handle material and type Description and Cordage
490 Ebonite with battery switch 4 way cord (2052) with 4 way plug (Aluminium)
491 Ebonite with battery switch 4 way cord (2052) with 4 way plug (Nickel plated)
492 (RE 3022) Ebonite with switch 4 way waterproof cord (2162) - Portable use on Telephone No. 390
493 (RE 3042) Ebonite with switch 4 way waterproof cord (2124) - Portable use on Telephone No. 391
494 Ebonite with battery switch and suspending eye 4 way cord (2182) with 4 way plug (Aluminium)
495 Ebonite with battery switch 4 way cord (2052) with special connecting loops (aluminium)
496 (RE 9100) Ebonite with telescopic movement 4 way cord (2159) - Portable, used on Telephones 392 and 394
500 Ebonite with battery switch 4 way cord (2052) with 5 way plug (Aluminium) (differentially wound receiver)
501 Ebonite with battery switch and suspending eye 5 way cord (2066) and 5 way plug (differentially wound receiver)
505 Ebonite with no switch 5 way cord (2067) and 5 way plug (differentially wound receiver)
515 Ebonite with no switch 4 way cord (2182) with 4 way plug (Nickel plated)
510 Ebonite with no switch but with suspending eye 5 way cord (2067) and 5 way plug (differentially wound receiver)
512 Ebonite with switch and battery key As 525 but longer in length
515 Ebonite with battery switch and suspending eye 4 way cord (2126) with 4 way plug (Nickel plated)
520 (RE 2002) Ebonite with battery switch 4 way cord (2052) with special connecting loops (Nickel plated)
521 Ebonite with battery switch and suspending eye 4 way cord (2182) with special connecting loops (Nickel plated)
522 Ebonite with switch, battery key and suspending eye 4 way cord (2142) with special connecting loops (Nickel plated)
523 (RE 3500) Ebonite with switch and battery key 4 way cord (2182) with 4 way plug (Nickel plated)
524 Ebonite with battery switch and suspending eye 4 way cord (2182) with 4 way plug (Nickel plated)
525 (RE 3000) Ebonite with switch and battery key 4 way cord (2142) with special connecting loops (Nickel plated)
529 (RE 1050) Ebonite with no switch 4 way cord (2061) (Nickel plated)
530 (RE 4050) Ebonite with no switch but with suspending eye 4 way cord (2061) with 4 way plug (Nickel plated)
531 Ebonite with no switch 4 way cord (2050) (Nickel plated)
532 (RE 4000) Ebonite with no switch but with suspending eye 4 way cord (2050) with special connecting loops (Nickel plated)
N5800 Ebonite with no switch 4 way green Plaited cord 36" (N4000)
N5801 Ebonite with no switch but with suspending eye 4 way green Plaited cord 36" (N4000)
N5802 Ebonite with no switch 4 way green Plaited cord 48" (N4001)
N5803 Ebonite with battery switch 4 way green Plaited cord 48" (N4002)
N5804 Ebonite with battery switch and key 4 way brown cord 48" (N4003)
N5805 Ebonite with battery switch - Telescopic 4 way brown cord 36" (N4005)
N5806 Ebonite with battery switch - Telescopic 4 way brown cord 36" (N4004)
N5807 Ebonite 4 way green Plaited cord 36" (N4000)
N5808 Ebonite 4 way green Plaited cord 48" (N4007)
N5809 Ebonite 4 way green Braided cord 36" (N4006)
N5810 Ebonite with no switch 4 way green Plaited cord 48" (N4012)
N5811 Ebonite with no switch 4 way green Plaited cord 48" (N4008)
N5812 Ebonite with no switch but with suspending eye 4 way green Plaited cord 48" (N4008)
N5813 Ebonite with no switch 2 way green Plaited cord 48" (N4010)
N5814 Ebonite with no switch - Electro-magnetic type 2 way green Plaited cord 48" (N4011)
N5815 Ebonite with no switch - Electro-magnetic type 2 way green Plaited cord 48" (N4010)
N5816 Ebonite with no switch - Electro-magnetic type 2 way green Plaited cord 48" (N4009)
N5829 Ebonite with no switch with inset transmitter N7743 4 way cord - For flameproof telephones
N5829A Ebonite with no switch but with suspending eye 4 way cord - For flameproof telephones
N5852

Bakelite - with  inset transmitter N7752

 3 way brown Plaited cord 42" (N4021)
N5853 Bakelite - with  inset transmitter N7746 3 way brown Plaited cord 42" (N4021)
N5866 Bakelite with press key - with inset transmitter N7752 4 way brown Plaited cord 48" (N4045) - For railway telephones
N5874 Bakelite with press key - with inset transmitter N7753A 3 way cord - For portable telephone No. 1845
N5875 Bakelite - with inset transmitter N7752 3 way brown Plaited cord 42" (N4021) - General use
N5875B1 Bakelite - with inset transmitter N7752 3 way brown Plaited cord 42" (N4021) - General use
N5875B7 Bakelite 4 way cord - For flameproof telephones
N5876B1 Bakelite - with inset transmitter N7752 4 way brown Plaited cord 42" (N4039) - General use
N5876B3 Bakelite - with inset transmitter N7753A 4 way cord - For flameproof telephones
N5876B4 Bakelite - with inset transmitter N7752 4 way cord - For railway type telephones
N5876B9 Bakelite 4 way cord - For flameproof telephones
N5877B1 Bakelite - with inset transmitter N7752 3 way cord - For intercom telephones
N5893 Bakelite - Black or Ivory 4 way Cord - Used on pre 1000 sets - Amplified
N5894 Bakelite - Black or Ivory 4 way Cord - Used on 1000 sets - Amplified
N5898 Bakelite - Black or Ivory - with inset transmitter N7752J 3 way Cord - Used on 1000 sets
N5899 Bakelite - Black or Ivory - with inset transmitter N7752J 4 way Cord - Used on 1000 sets
N9506 Plastic - with inset transmitter N7752L 4 way Coiled Cord - For use on Etelphone
N9508A Plastic - with inset transmitter N7752L 4 way Coiled Cord - For use on Etelphone - Amplified
N9508B Plastic - with inset transmitter N7752L 4 way Coiled Cord - For use on LB Etelphone - Amplified
N9513 Plastic - with inset transmitter N7752L 4 way transparent Coiled Cord
N9514 Plastic - with inset transmitter N7752L 6 way Coiled Cord - Fitted with a press button switch
RE 1000 Ebonite with no switch 4 way Plaited Cord RS6500, 1000mm
RE 1001 Ebonite with no switch 4 way Plaited Cord RS6000, 1000mm
RE 1002 Ebonite with no switch Plaited Cord RS6020, 1250mm
RE 1004 Ebonite with no switch 4 way Plaited Cord RS6010, 1250mm
RE 1005 Ebonite with no switch 4 way Plaited Cord RS6010, 1250mm - Used on Municipal telephones
RE 1006 Bakelite 3 way Cord, 1000mm
RE 1011 Ebonite with no switch Plaited Cord RS6030
RE 1013 Bakelite without Spittoon - Black Braided Cord RS4253, 1000mm
RE 1015 Bakelite without Spittoon - Black Braided Cord RS5081
RE 1017 Bakelite with spittoon 3 way Braided Cord RS5120, 150mm, Black - waterproof
RE 1018 Ebonite with no switch Cord RS6201 - Used in Flameproof telephone AB 2536 and AB 5555
RE 1023 Ebonite with no switch Braided Cord RS5212 - Waterproof
RE 1024 Ebonite with no switch Cord RS6003
RE 1028 Bakelite - Black 4 way Braided Cord RS5081, 1250mm
RE 1034 Bakelite - Black 4 way Cord, 1250mm - with 4 way plug
RE 1035 Bakelite - Black 4 way Cord, 1250mm - with 4 way plug
RE 1036 Bakelite without Spittoon - Black 3 way Braided Cord RS5080, 1250mm, Black
RE 1037 Bakelite without Spittoon - Black 3 way Braided Cord RS5080, 1250mm, Black
RE 1038 Bakelite with Spittoon 3 way Braided Cord RS5081, 1250mm
RE 1040 Bakelite with Spittoon - Black 3 way Braided Cord RS5080, 1250mm, Black
RE 1041 Bakelite with Spittoon - Black 3 way Braided Cord RS5080, 1250mm, Black
RE 1042 Bakelite with Spittoon - Black 4 way Braided Cord RS6162, 1250mm, Black
RE 1044 Bakelite with Spittoon - Black 4 way Braided Cord RS6160, 1250mm, Black - Used mainly on Municipal telephones
RE 1046 Bakelite with Spittoon - Black 3 way Braided Cord RS5081, 1250mm
RE 1048 Bakelite with Spittoon - Black 3 way Braided Cord RS5120, 1500mm, Black - Rubber insulated
RE 1050 Ebonite with no switch 4 way Plaited Cord RS6500, 1000mm - See 529
RE 1051 Ebonite with no switch 4 way Plaited Cord RS6500, 1000mm
RE 1060 Bakelite with Spittoon - Black 4 way Braided Cord RS6162, 1250mm
RE 1500 Wincrantz type Braided Cord RS5058
RE 2002 Ebonite with battery switch 4 way Plaited Cord RS7021, 1250mm - See 520
RE 2056 Ebonite with battery switch 4 way Plaited Cord RS7501 - Used on Telphones MC 100, 200
RE 3000 Ebonite with switch and battery key 4 way Braided Cord RS8001, 1250mm - See 525
RE 3022 Rubber mouthpiece 4 way Plaited Cord RS7000 - See 492 - Used on Telphones MB 100, 110, 120
RE 3042 Rubber mouthpiece 4 way Plaited Cord RS8000 - See 493 - Used on Telphones MB 115, 125
RE 3062 Rubber mouthpiece 4 way Plaited Cord RS8010 - Used on Telphones MB 200, 210, 220
RE 3086 Ebonite with battery switch 4 way Plaited Cord RS8020 - Used on Telphones MB 230, 235
RE 3350 Ebonite with switch 4 way Braided Cord RS8100 (Nickel plated)
RE 3352 Ebonite with switch 4 way Braided Cord RS8101
RE 3500 Ebonite with switch and battery key 4 way Plaited Cord RS8500 with 4 way plug (Nickel plated) - See 523
RE 3516 Ebonite 4 way Plaited Cord RS8021 - Used on Telephone MC 110
RE 4000 Ebonite with no switch but with suspending eye 4 way Plaited Cord RS6000, 1000mm, with special connecting loops (Nickel plated) - See 532
RE 4001 Ebonite with no switch but with suspending eye 4 way Plaited Cord RS6000, 1000mm
RE 4004 Ebonite with suspending eye 4 way Plaited Cord RS6000
RE 4007 Ebonite with no switch but with suspending eye Plaited Cord RS6021
RE 4011 Ebonite with no switch but with suspending eye Plaited Cord RS6001 - Waterproof
RE 4012 Ebonite with no switch but with suspending eye 4 way Plaited Cord RS6000
RE 4014 Ebonite Braided Cord RS6002
RE 4023 Ebonite with no switch but with suspending eye Braided Cord RS6140
RE 4030 Bakelite with suspending eye - Black 3 way Braided Cord RS5080, 1250mm, Black
RE 4031 Bakelite with Spittoon and suspending eye - Black 3 way Braided Cord RS5080, 1250mm, Black
RE 4032 Bakelite with Spittoon and suspending eye - Black 4 way Braided Cord RS6162, 1250mm, Black
RE 4033 Ebonite with no switch but with suspending eye Braided Cord RS6140
RE 4034 Bakelite with Spittoon and suspending eye - Black 4 way Cord, 1250mm
RE 4035 Bakelite with Spittoon and suspending eye - Black 4 way Cord, 1250mm
RE 4036 Bakelite with no spittoon but with suspending eye - Black 3 way Braided Cord RS5080, 1250mm, Black
RE 4037 Bakelite with no spittoon but with suspending eye - Black 3 way Braided Cord RS5080, 1250mm, Black
RE 4050 Ebonite with no switch but with suspending eye 4 way Plaited Cord RS6500, 1000mm, with 4 way plug (Nickel plated) - See 530
RE 4051 Ebonite with suspending eye 4 way Plaited Cord RS6500, 1000mm
RE 5058 Ebonite 4 way Plaited Cord RS7021, 1250mm
RE 6000 Ebonite with switch and suspending eye 4 way Plaited Cord RS8001, 1250mm
RE 6010 Ebonite with switch and suspending eye 4 way Plaited Cord RS8001, 1250mm
RE 6050 Ebonite 4 way Plaited Cord RS8500
RE 9100 Telescopic with flap on mouthpiece 4 way Plaited Cord RS7010 - Used on Telphones MA 10, 20, 30, 80, MB 300
RE 9110 Telescopic with flap on mouthpiece 4 way Plaited Cord RS7010 - Used on Telphones MA 50, 60
RE 9112 Telescopic with flap on mouthpiece 4 way Plaited Cord RS7050 - Used on Telphones MA 200, 210
RE 9210 Ebonite Cord RS6100
RE 9300 Ebonite with switch 3 way Braided Cord RS4250 - Used on parlour telephones
RE 9302 Ebonite with no switch 3 way Braided Cord RS4252 - Used on parlour telephones
RE 9310 Ebonite with switch 3 way Braided Cord RS4250 - Used on parlour telephones
RE 9312 Ebonite with switch 3 way Braided Cord RS4252 - Used on parlour telephones


Pictures

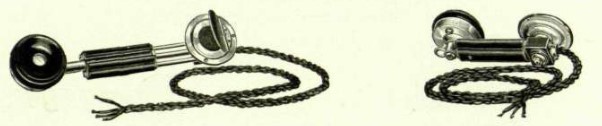

496

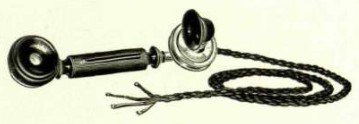

520

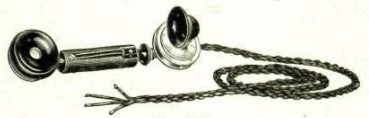

525

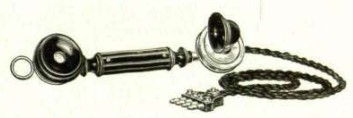

530

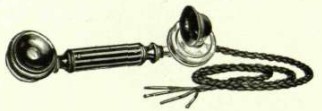

531

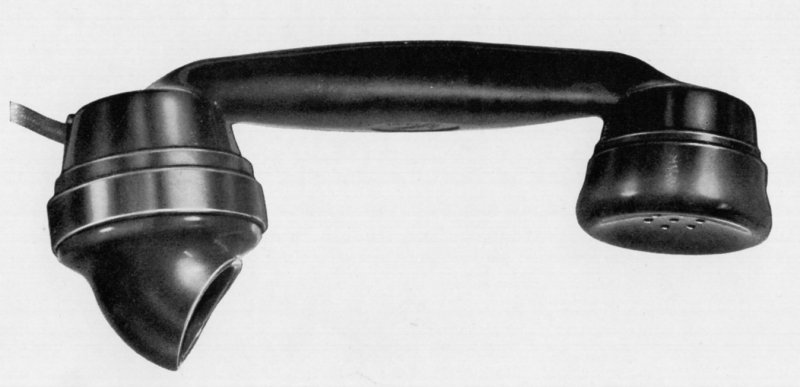

N5875B1

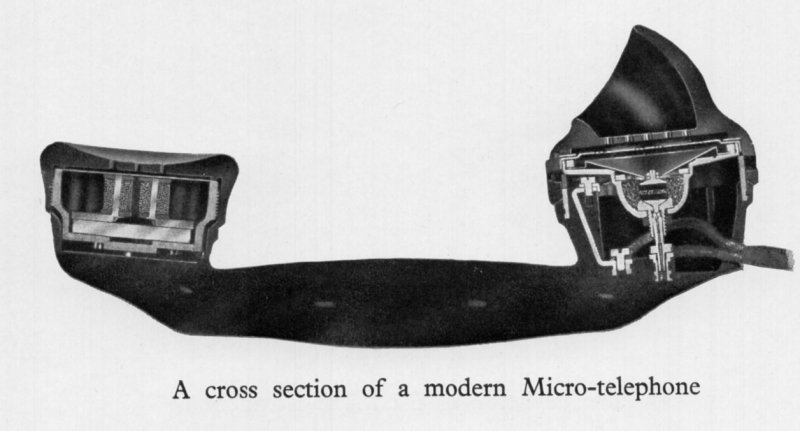

N5875B1

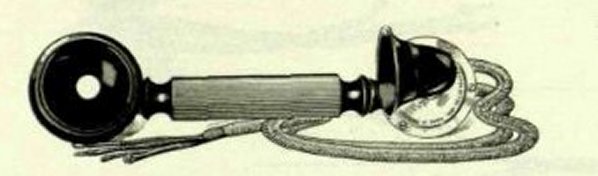

RE 1002

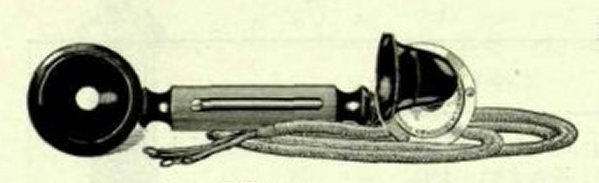

RE 2002

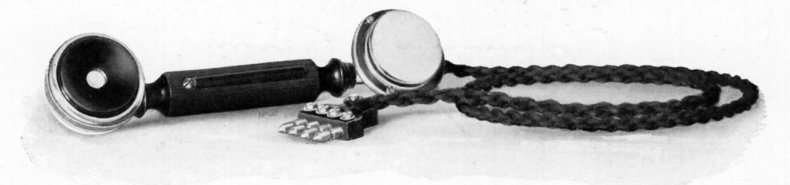

RE 2056 - For portable telephones

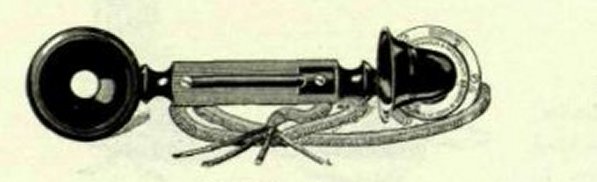

RE 3000

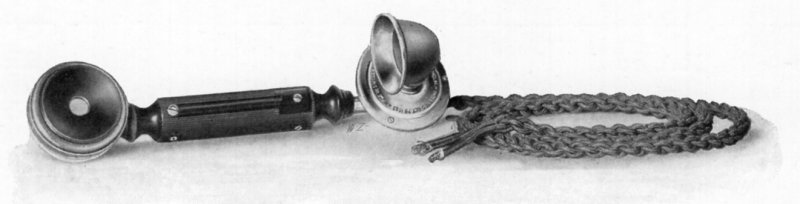

RE 3042 - For portable telephones

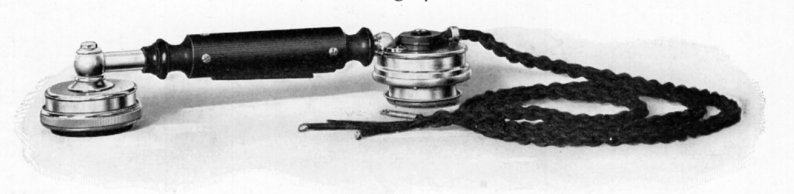

RE 3086 - For portable telephones

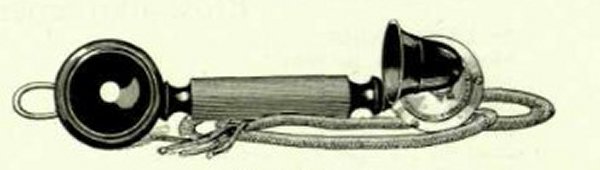

RE 4000

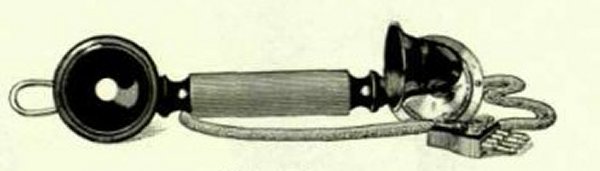

RE 4050

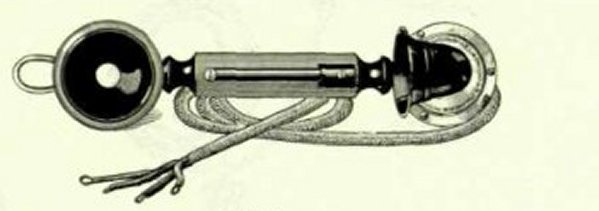

RE 6000

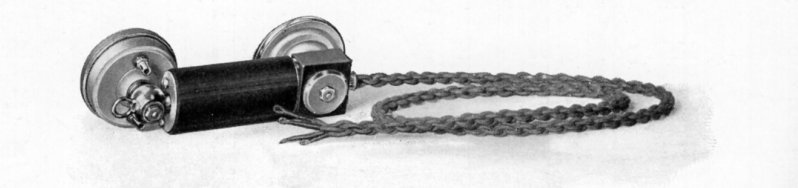

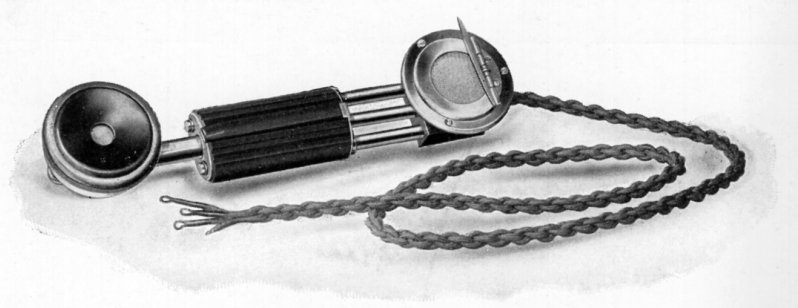

RE 9100, 9110 and 9112 - For portable telephones



RE 9100, 9110 and  9112 - For portable telephones
