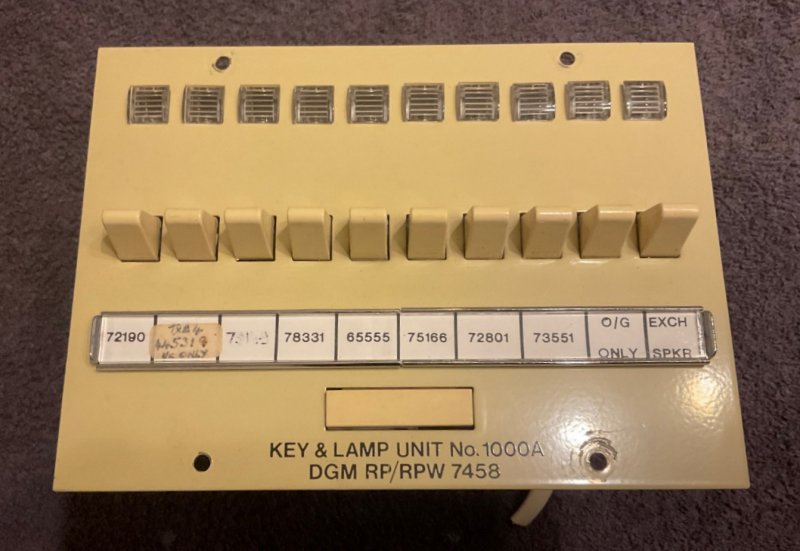

KEY AND LAMP UNIT
| ||||||||
|
Rack mounted
Key and Lamp Unit used in large exchanges and repeater stations, with a
capacity of 10 lines and using 700 type telephones.. Known as Multiple Access Telephone Equipment (MATE), this later model superseded the early model, that was based on the No. 192 telephone. Conforms to 62-type rack practice. Introduced in the 1970's. Drawing - 79977. Circuit diagram - RP7458. Specification - RC6329 and RC95118. Description of both MATE systems

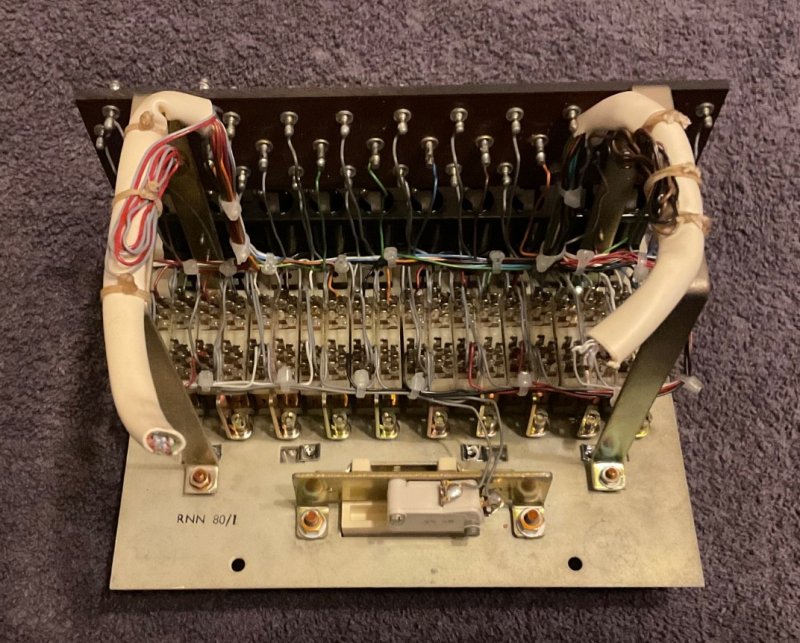

Rear view
Rear view |
||||||||
