HOOK, RECEIVER




Drawing No. 10015.

Hook, Receiver No. A

For Watch Receivers on Telephone No's 20, 22, 24 and 26.


Hook, Receiver No. B

For Watch Receivers on Telephone No's 2 (old pattern) and 12.


Hook, Receiver No. C

For Watch Receivers on Telephone No's 16 or 125.




Hook, Receiver No. D

For use with Receivers, Watch No. 1B on Telephone No's 2 or 4.

Drawing No. 62251.





Hook, Receiver No. E

For use on intermediate panels of Section Switch. Detachable hook for Receivers, Watch No. 1B. Used with Switch Receiver, No's 1 to 3




Hook, Receiver No. F

Detachable hook (oxidized) for Receivers, Bell, No. 1A. Used with Switch, Receiver, Nos. 1 to 3.

Used on Telephone No's 1, 2, 3, 4, 10, 11, 55, 65, 72, 76, 77, 79, 82, 121, 136, 150, 156 and 160.

Drawing No. 62251.


Hook, Receiver No. H

For Watch Receivers on all wall Telephones when required.


Hook, Receiver No. J

For Watch Receivers on Telephones No's 53, 67, 71, 97 or 99 with Receivers, Bell No's 1A or 3G.


Hook, Receiver No. K

Detachable hook (oxidized) for Receivers, H.G., at subscribers.  Used with Switch, Receivers, Nos. 1 to 3

Used on Telephone No's 1, 2, 3, 4, 10, 11, 55, 65, 72, 76, 77, 79, 82, 121, 136, 150, 156 and 160.



Hook, Receiver No. L

Used with Receiver, Watch No. 6L on 100 and 200 type Bakelite Telephones.

This is a clamp (fits around the telephones neck) with a rod attached.

Nickelled finish.


Hook, Receiver No. M

Side of switchboards.  Detachable hook used with Switch Receiver No's 1 to 3.  Used with Telephone No. 184.


Hook, Receiver No. N

Switchboards, panels etc. For Telephone No. 184.

Also used on Cases, Switch, Fire-Telephone.


Hook, Receiver No. S

As for M above


Hook, Receiver No. T

For use with Brackets, Telephone No. 12.
For Receiver, Watch No. 6L.


Hook, Receiver No. U

For use on Units, Telephone, PA No's 1 to 4.
Detachable hook for Telephone No. 164.


Hook, Receiver No. V

For use on Units, Telephone, PA No. 6.
Detachable hook for Telephone No. 164


Hook, Receiver No. W

For use on Units, Telephone, PA No. 7.
Detachable hook for Telephone No. 164.


Hook, Receiver No. X

For Watch Receivers on 300 type Bakelite Telephones.

This hook just slides down and locates on the flutes at the rear of the telephone case.

Chromium plated.


Hook, Receiver No. Y

For use with Brackets Telephone No. 14.  Used with Receiver Watch No. 6L.


Hook, Receiver No. Z

For use on Telephone No. 47 (Mark 4).
Detachable hook for Telephone No. 184.

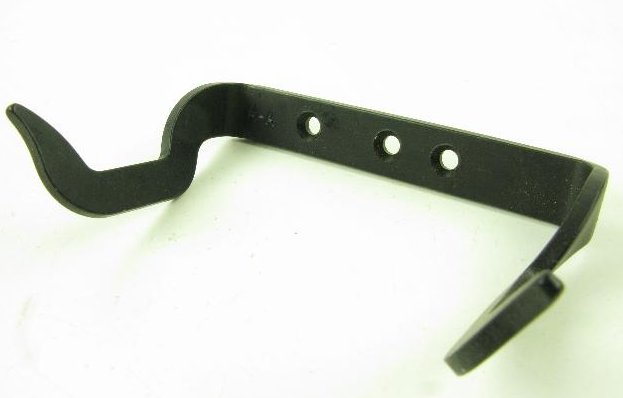

Hook, Receiver No. AA

Used on Key & Lamp Unit SA4062 - 10/10   FUW Telephone No's 164 and 184.



Hook, Receiver No. AF

Used on Switchboards, CB873 (5+20).



Hook, Receiver No. AG

For Watch Receivers on Telephone No's 706 and 710.

This hook takes the place of the normal case fixing plate.



Hook, Receiver No. AH

For Watch Receivers on Telephone No. 711.


Hook, Receiver No. AK

For Watch Receivers on 740 and 746 Telephone No's 740 and 746.

This hook is fitted in the finger slot.  The screw fed through ventilation slots found under the integral case handle.
