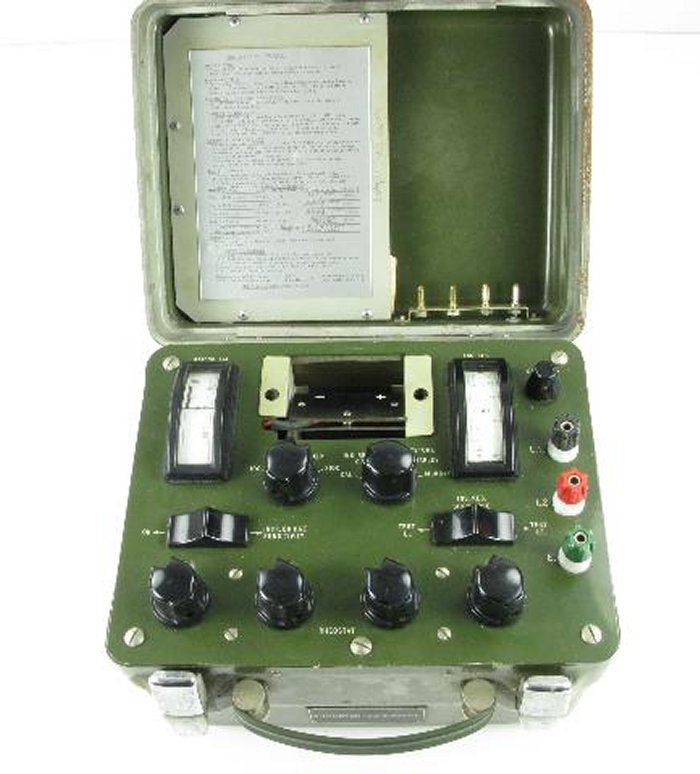

OHMMETER No. 15
This is a portable insulation and resistance tester, powered by an internal dry battery of 9 volts.

Testing voltage:-
250 volts and 500 Volts.

Ranges:-
Insulation: 0 .01-20 ohms and 20-1000M ohms.
Wheatstone Bridge: 001-9999K ohms.
Also Murray and Varley tests.

To be requisitioned separately:-
1 x Battery, Dry No 29.

To be requisitioned separately as required:-
1 x Cord, Test No. 1/36H.
1 x Cord, Test No. 1/36.J.
1 x Cord, Test No, 1/36K.
2 x Clip, Test No. 38A.
2 x Spike, Testing No. 10

This Ohmmeter superseded the Tester SA9004.

Dimensions
10" x 8" x 6".

Drawings - 92157 and 92162.

Specification - D2211.

Ohmmeter No. 15B Operation - TI E3F1053
