 The
KX-T616 was produced very briefly and almost immediately replaced by the
KX-T61610. The KX-T616 also has an additional Amphenol 50-pin
connector for the extensions. The KX-T616 was less flexible than the
KX-T61610 in terms of features and almost immediately obsoleted by it.
KX-T616 and KX-T61610 is native 6 lines and 16 telephones which can be
analogue phones with either pulse or DTMF dials, or Panasonic proprietary
multi-line phones. No expansion cards are required or available. All six lines and
16 extensions are built in and terminate on individual RJ11 style jacks.
On the KT-T616 The extensions could also be wired out by means of a 25 pair
Amphenol connector which plugged into the rear of the unit.
Both models supported music on hold, paging and a serial port but only the
KX-T61610 could have the optional doorphone connected.
It requires at least one Featurephone, the KX-T7130E for programming
purposes.
The telephones can be programmed as "hotline" or auto-ringdown for
non-dial common-battery manual sets where it will automatically ring a
specific extension or outside number when going off hook.

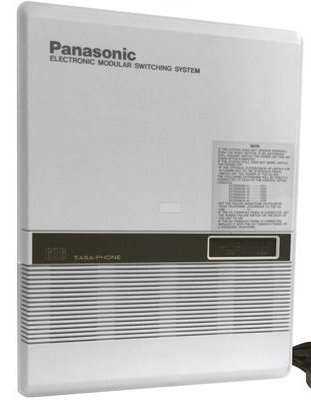

Panasonic refers to these as an Electronic Modular
Switching System.
There was also a baby brother to the KX-T61610, the KX-T30810 with three
lines and eight telephones. This system had the same features as the KX-T61610.
The Panasonic KX-T61610 phone system is compatible with
these Panasonic analogue system phones: KX-T7730, KX-T7030, KX-T7131,
KX-T7020, and the KX-T7750 Desk Phones.
LJU Wiring (KX-T308/T616/T61610)
|
LJU 2/3A
|
|
Wire colour
|
|
2
|
- |
Red
|
|
3
|
- |
Black
|
|
4
|
- |
Yellow
|
|
5
|
- |
Green
|
Extensions and lines are terminated at the system end on RJ11 plugs,
which should be supplied with the system. On the KX-T616 the extensions
could also be wired out by means of a 25 pair Amphenol connector which plugged
into the rear of the unit.
Panasonic Telephones that CAN be used to programme a 308/616 system
KX-T30830
KX-T61630
KX-T123230
KX-T7030
KX-T7130
Panasonic Telephones that CANNOT be used to Programme a 308/616 system
KX-T30820
KX-T30850
KX-T61620
KX-T61650
KX-T123220
KX-T123250
KX-T7020
KX-T7050
KX-T7120
KX-T7150
The telephones below are older models and were originally sold with the KX-T30810,
KX-T61610 and KX-T1232 systems.
KX-T30820 - Featurephone telephone (3 CO).
KX-T30830 - Featurephone telephone with LCD (3 CO).
KX-T30850 - Featurephone telephone (3 CO).
KX-T61620 - Featurephone telephone (6 CO).
KX-T61630 - Featurephone telephone with LCD (6 CO).
KX-T61631 - Featurephone telephone with LCD (6 CO).
KX-T61650 - Featurephone telephone (6 CO).
KX-T123220 - Featurephone telephone (12CO).
KX-T123230 - Featurephone telephone with LCD (12CO).
KX-T123250 - Featurephone telephone (12CO).
Also
KX-T7055, KX-T7020, KX-T7030, KX-T7130, KX-T7135, KX-T7320, KX-T7320 and
KX-T7335

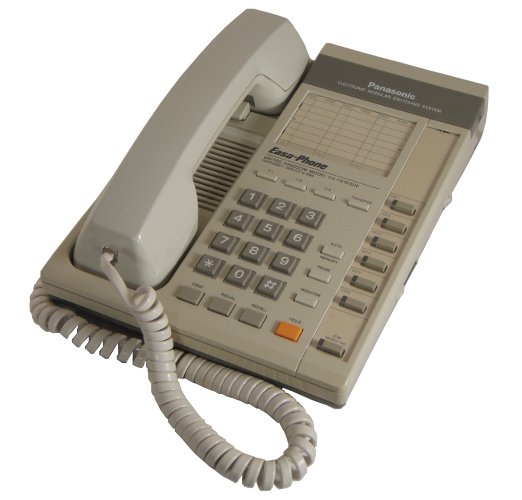

KX-T61650E
|
Panasonic KX-T 616 Programming
Codes
Move switch in cabinet to
PROGRAM. Use station 10 phone to program |
|
Code |
Description |
|
00 |
Time/Date |
|
01 |
System Speed Dial 00 to
99 |
|
02 |
System Speed Dialing –
Class Assignment |
|
03 |
DSS Console Assignment |
|
04 |
Dial Mode Tone/Pulse |
|
05 |
System Switching Mode
Automatic/Manual |
|
06 |
System Switching Time |
|
07 |
Outward Dialing Day |
|
08 |
Outward Dialing Night |
|
09 |
Ringing, Day |
|
10 |
Ringing, Night |
|
11 |
Toll Restriction Class
Assignment |
|
12 |
Toll Restriction, Deny
Codes |
|
13 |
Toll Restriction, Allow
Codes |
|
14 |
Host PBX Access Codes |
|
15 |
Preferred Line
Assignment |
|
16 |
Programmable Call
Waiting |
|
17 |
Delayed Ringing |
|
18 |
Delayed Ring Count |
|
19 |
Intercom Alert Tone |
|
20 |
Door Phone Ringing |
|
21 |
Dial Call Pickup Group |
|
22 |
Account Code Entry Mode |
|
23 |
Call Duration Start
Timer |
|
24 |
SMDR Communication
Parameters |
|
25 |
System Data Dump |
|
26 |
SMDR Incoming/Outgoing |
|
27 |
Automatic Answer Mode |
|
28 |
Hold Recall Time |
|
29 |
External Pager Access
Tone |
|
30 |
Programmable Secret
Speed Dials |
|
31 |
Hook Flash Time |
|
32 |
Disconnect time 1.5
Seconds or 4.0 Seconds |
|
33 |
Calling Party Control |
|
34 |
DSS Button Mode
With/Without Transfer |
|
35 |
DTMF Receiver Check |
|
36 |
Transfer Recall Time |
|
37 |
Parallel connection of a
SLT with a Proprietary Telephone |
|
38 |
F1/Save Changes the F1
key to a Save Key |
|
39 |
F3/FWD Key Sets F1 to a
FWD key |
|
40 |
Executive Bust Override |
|
41 |
Automatic CO Line
Access, Outgoing |
|
42 |
Programmable Call
waiting Tone Type |
|
43 |
Door Opener |
|
45 |
Carrier Codes Assignment |
|
99 |
System Data Clear |
|
