TELEPHONE No. 47

Telephone No. 47	Telephone No. 47 Mark 4

CB Fire telephone used for direct connection between buildings and the local Fire Station.

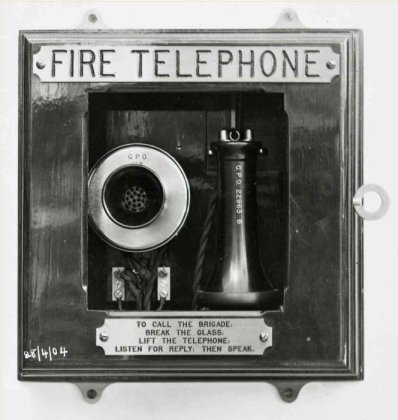

The original Telephone No. 47 was used in private buildings connected directly to the London Fire Brigade Stations.

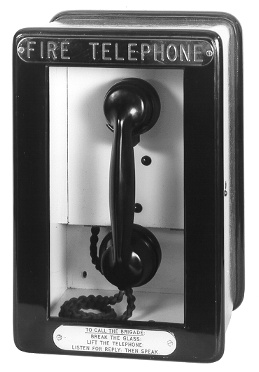

The later Mark 4's handset (shown to the right) was a Telephone No. 184.

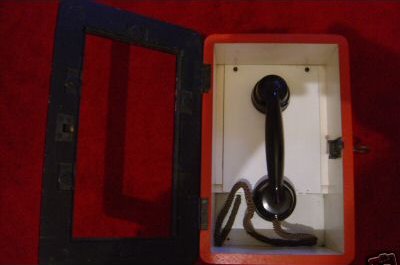

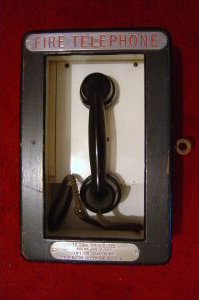

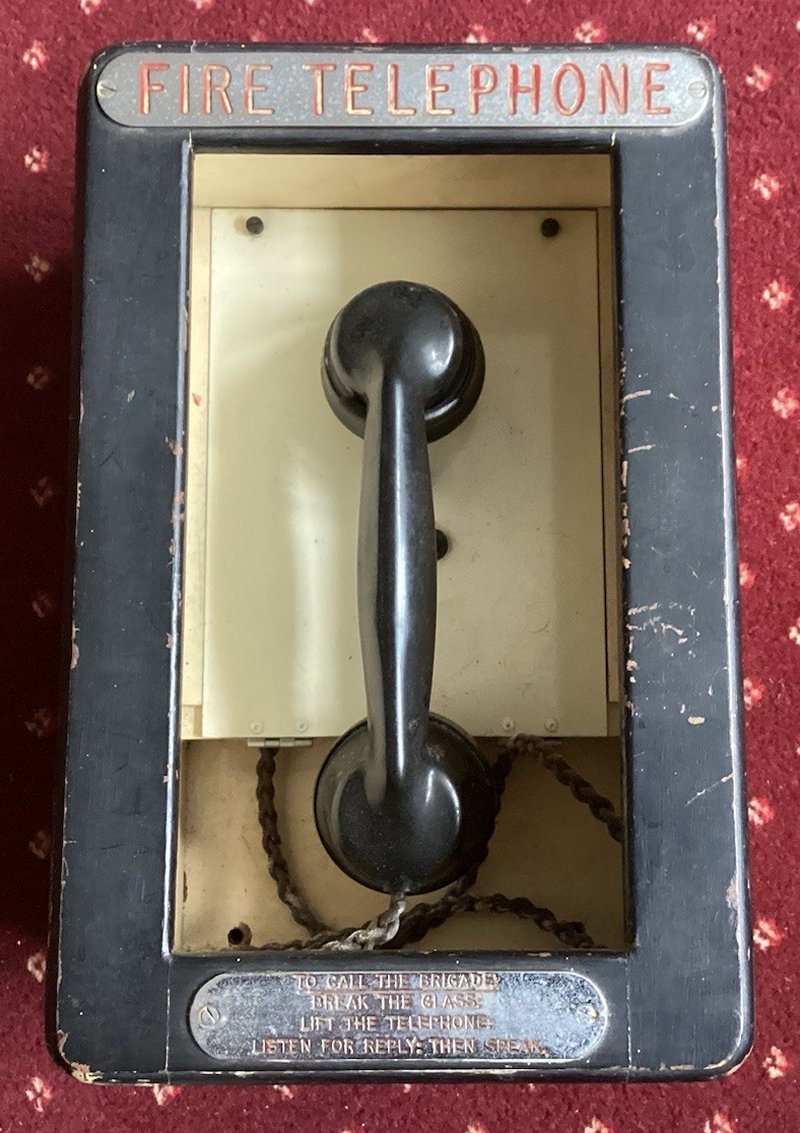

The Mark 4 was introduced in 1937 and had a Teak casing which was painted red (BS 381, Tint No. 538).

This telephone was not available in the 1956 Rate Book.

Circuit Diagram - F.A. 26.
Circuit Diagram - N147.

Drawings - 63001 and 63002 (Mark 4).

Specification - S12.

Telephone includes (1928 & 1933):-
1 x Condenser, M.C. No. 1.
1 x Key for Telephone No. 47.
1 x Cord, Instrument No. 222.
1 x Receiver, Bell No. 1A.
1 x Glass No. 13.
1 x Transmitter No. 9.

Mark 235 includes also :-
1 x Hook, Receiver F.
1 x Switch, Receiver No. 2.
1 x Transmitter, No. 1 with Adapter, Transmitter in place of Transmitter, No. 9.

Telephone includes (1947):-
1 x Clip No. 29.
1 x Key, Locks, Telephone No. 47.
1 x Coil, Induction No. 18.
1 x Lock for Telephone No. 47.
1 x Condenser, M.C. No. 102.
1 x  Switch, Receiver No. 2.
1 x Glass No. 48.
1 x Hook, Receiver Z.
1 x Telephone No. 184, with Cord, 4/42A, Brown, 28".
