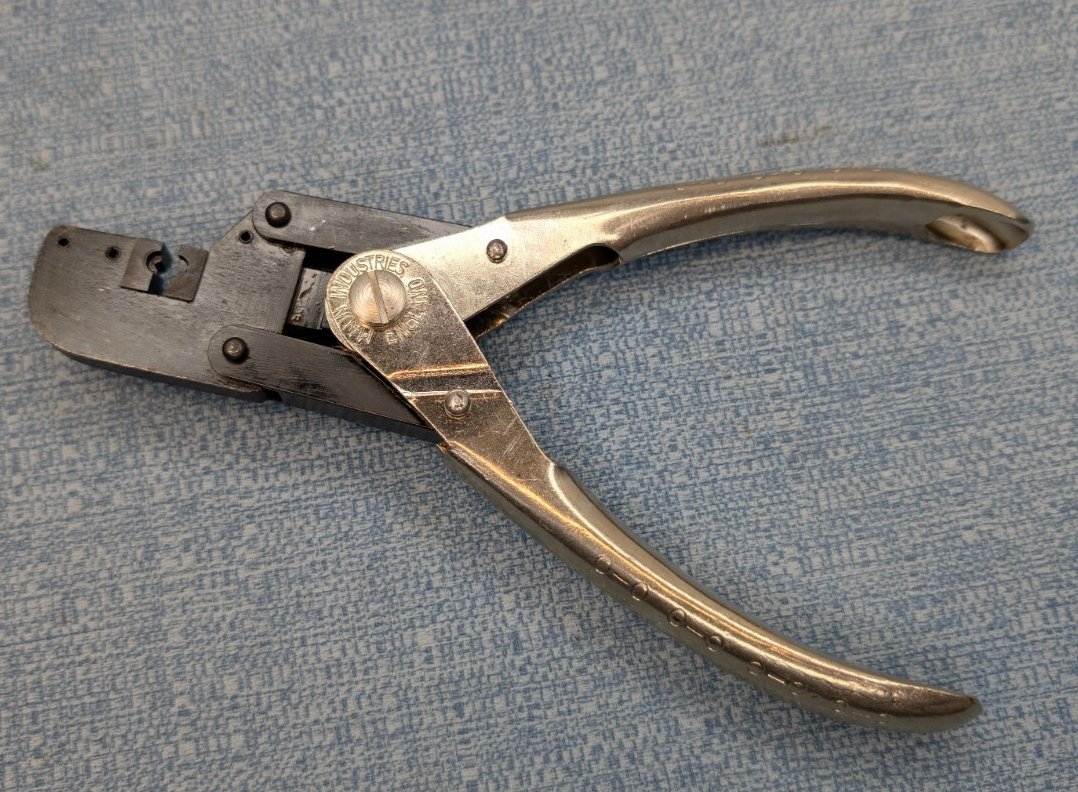

Pliers, Crimping No. 1
Used with
Connectors No. 100, 101 and 102 which are used on the PMBX 2
series.
|
|

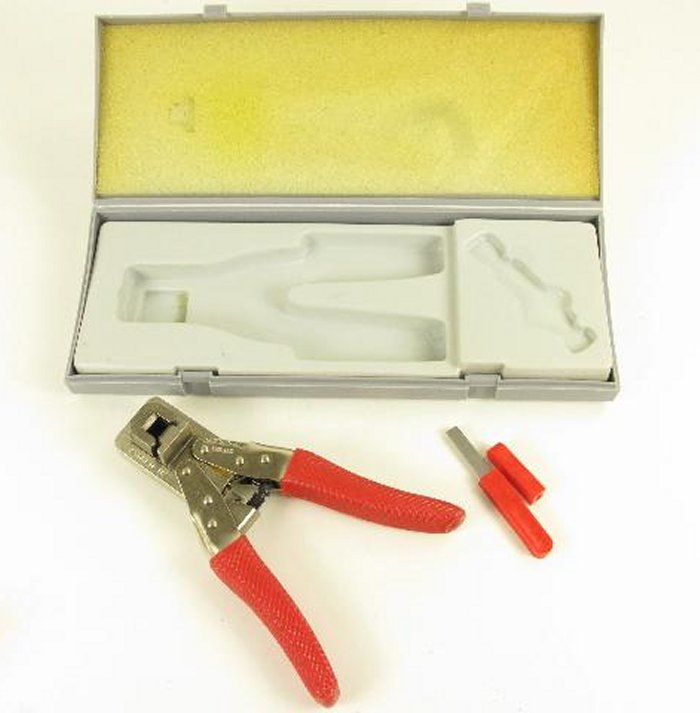

Pliers, Crimping No. 2
Used with
Connectors, Wire, Insulated No. 1.
TI A2 H2603
|
|
Pliers, Crimping No.
3A
Used for crimping 500 type Coaxial Cable.
Drawing - CD4514.
|
|
Pliers, Crimping No. 5A
Used with
AMP cable connectors in TXE4 Exchanges.
|
|

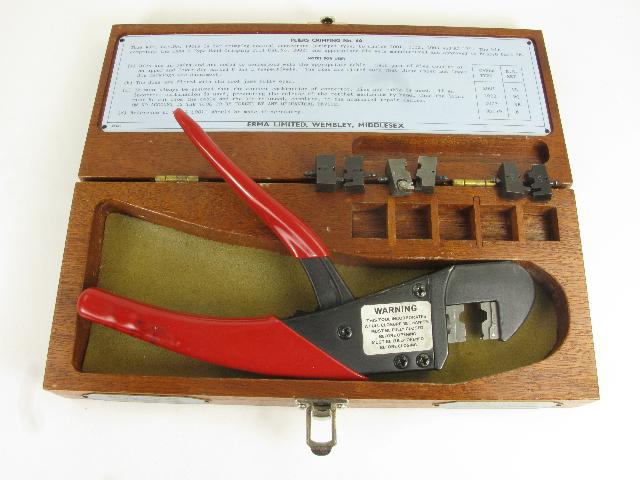

Pliers, Crimping No. 6A
Used with
Connectors No's 31 and 43.
TI A4 D0011
|
|

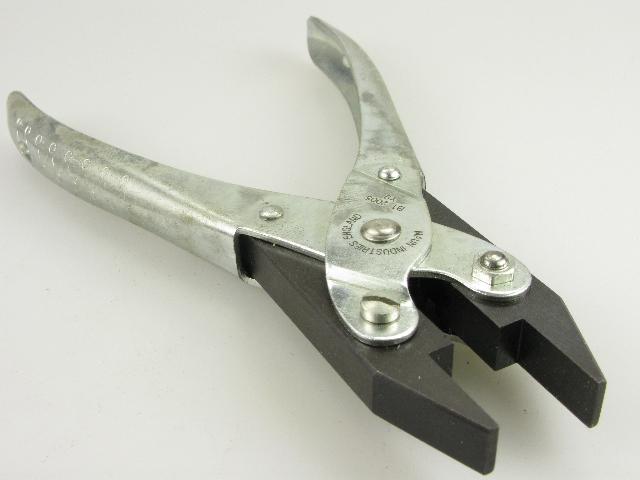

Pliers, Crimping No. 7A
Used with
Connectors No. 224C.
|
|
Pliers, Crimping No.
8A, 8B and 8D
Pliers Crimping No. 8A are
parallel action pliers. The gap between the jaws of the pliers
shall be 12 mm when open and 4 mm when closed.
Used to
crimp Connectors Wire
Insulated No. 8.
Pliers, Crimping No. 8B are made by
Wilkinson and No. 8D made by 3M.
See TI
A2 H2604
|

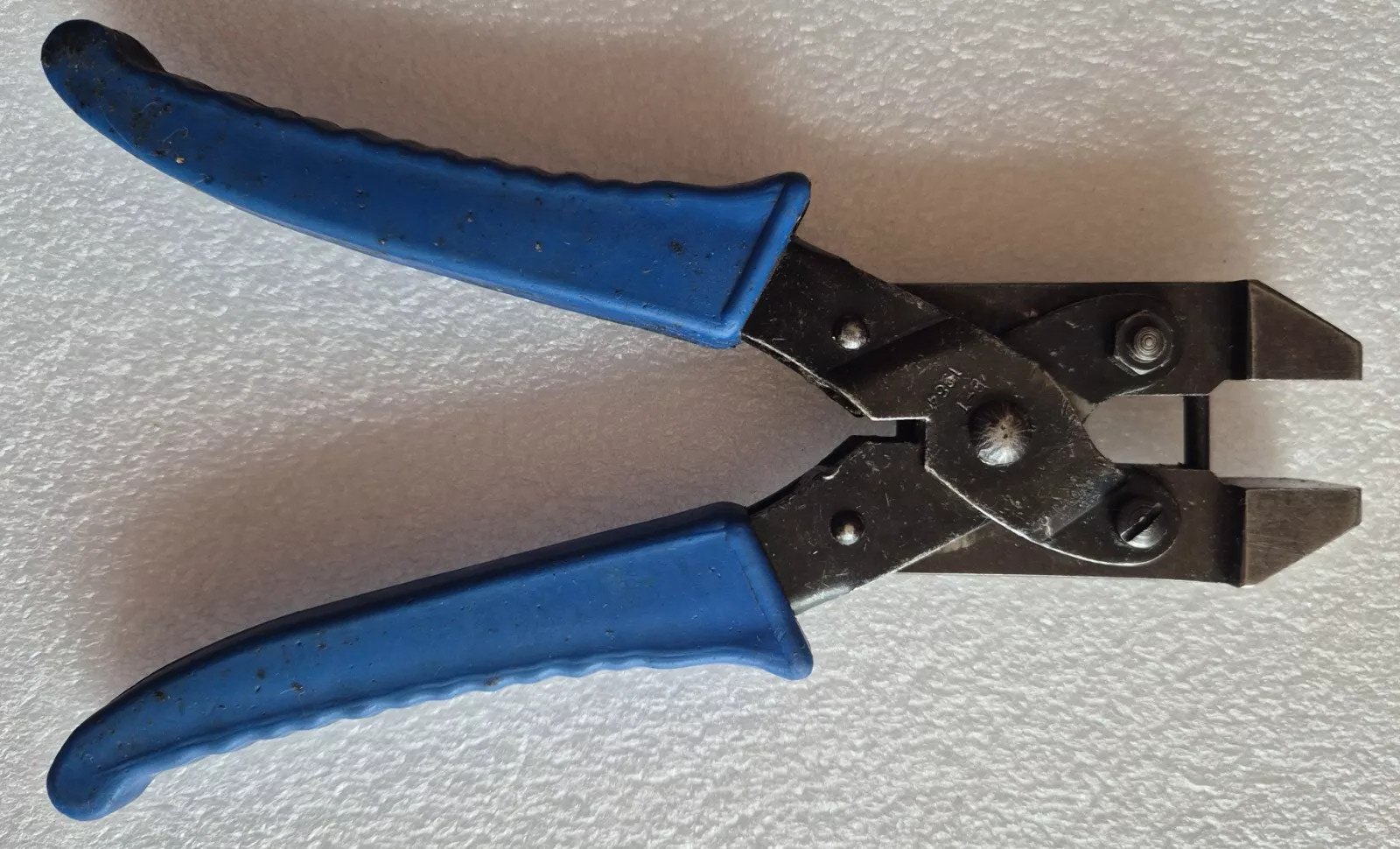

Pliers, Crimping No. 8A

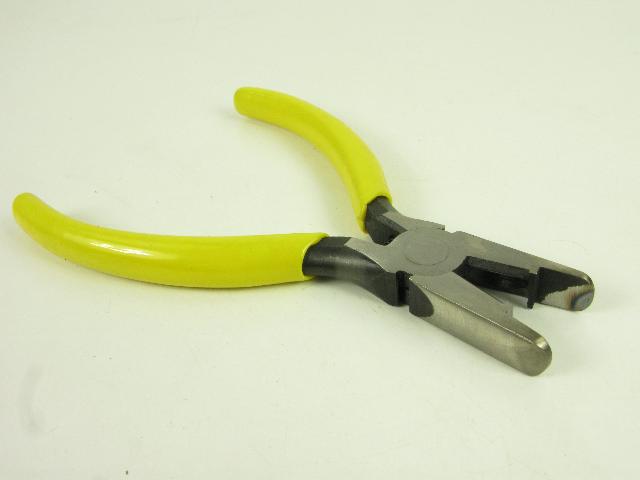

Pliers, Crimping No. 8B
|

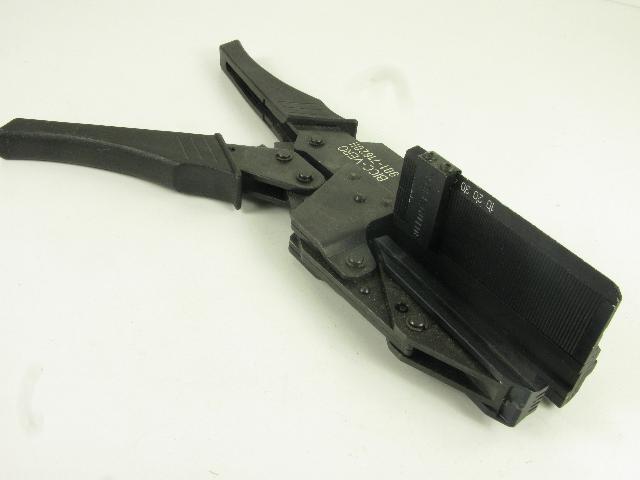

Pliers, Crimping No.
9A
Used to crimp Connectors No. 226 to flat
under carpet cable.
|
|
Pliers, Crimping No.
10A
Used to install Connections Screen No. 1A on
the transverse screen cable.
It is a parallel action
plier type of tool with a ratchet action, and plain jaws having
a crimping area of 1/2" x l/2". They are used by operating the
tool until the ratchet action releases itself thus ensuring that
the connector is fully crimped.
Overall length 8
1/2".
|
|
Pliers, Crimping No.
12A
Used for terminating various plugs and jacks
associated with "New Plan" wiring.
|
|
Pliers, Crimping No.
13A
Used for crimping the outer sleeve of Plugs
Coaxial 46/5A.
|
|

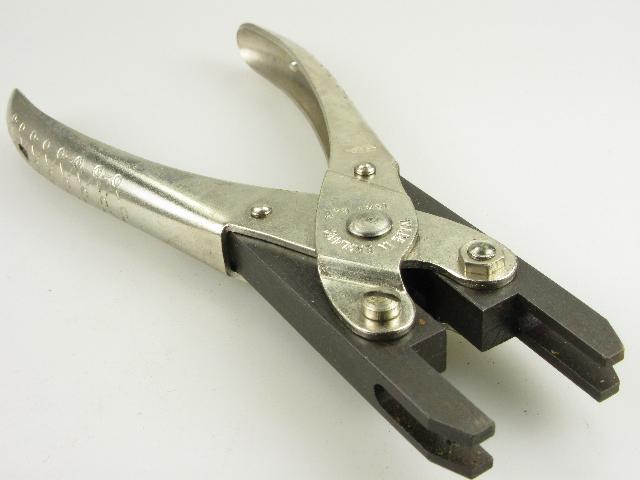

Pliers, Crimping No.
14A
Used for terminating Connector No. 222 to
cables.
|
|

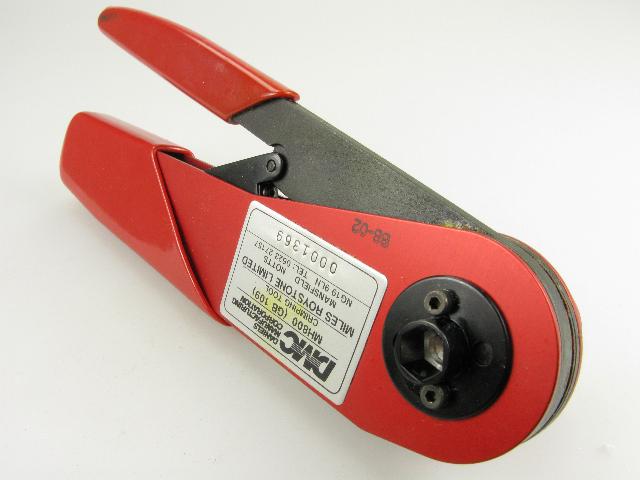

Pliers, Crimping No.
19A
Used on the crimped centre contact version
of Plug Coaxial No. 43.... Crimps the centre contact onto the
centre conductor of the
coaxial cable.
|
|
Pliers, Crimping No.
25A
UTerminating Kit for 222IDC Connector range.
Manufactured by ITT Cannon (UK).
Supplied in a
case with 2 hand tools plus accessories.
|
|
