TELEPHONE SPECIAL RANGE No. 1006

SPECIAL RANGE TELEPHONE (SRT)
Deltaphone and Deltaphone Deluxe by STC

This instruction deals with the physical description, field of use, title and identification of the telephone.

DESCRIPTION

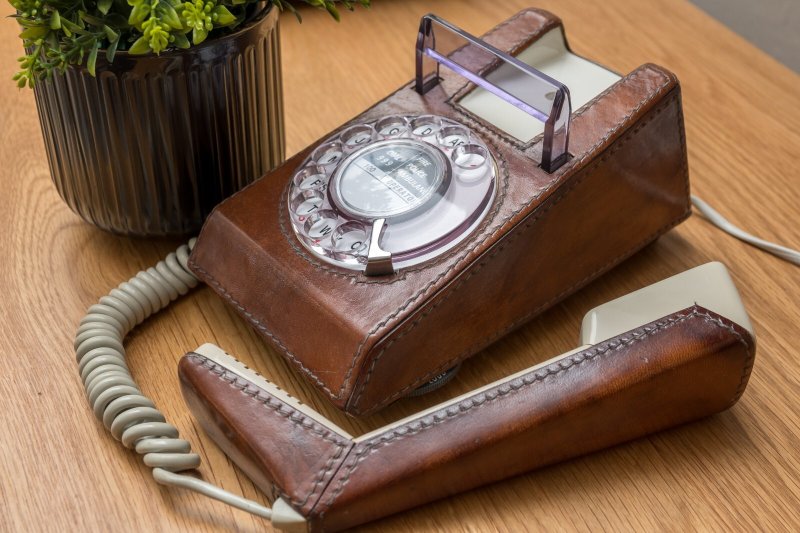

The Deltaphone and Deltaphone Deluxe are respectively standard Post Office rotary dial and push button Trimphones, with the main body of the telephones and the back of the handsets covered with genuine leather.  The leather covering cannot be removed. The Deltaphone will be available in Brown leather only, and the Deltaphone Deluxe in Red and Green leather versions.  Each telephone is supplied fitted with a five way line cord, three metres long when fully extended, terminated with a Plug No. 505.  Alternative cords cannot be provided.  These telephones use standard telephone number labels.

DIMENSIONS
Height 109 mm, Width 246 mm, Depth 220 mm and Weight 810 gm.

FIELD OF USE
Type A: Exclusive and shared exchange lines; PBX extensions without recall facility; and main stations and extensions of Plans 1A and 4 including Plan 4 off 1A.

IDENTIFICATION AND TITLE
The marketing titles are Deltaphone by STC and Deltaphone Deluxe by STC.  These titles will be used in all advertising and publicity material), for the telephone and in contacts with the general public.  The PO engineering titles are Telephone SR No. 1006A for the Deltaphone and Telephone SR No. 1016A for Deltaphone Deluxe. Post Office ownership can be confirmed against the appearance of this number, the year of manufacture, and the words 'Post Office Property' which are marked on the base.

TNkD/TMH2.3.8

Additional Information

Another ill-fated attempt to give the Trimphone another lease of life came when some bright spark had the idea of cladding the telephones in leather.  The cases discoloured rapidly from finger grease and other contaminations but this did not deter the Post Office from including these unfortunate instruments in their Special Range in 1980 under the Deltaphone name.

Made by STC, the Deltaphone was just a leather covered Trimphone, with a Plug No. 505.  This plug was inserted into the jack socket and was then covered with a small sheaf, which was supposed to stop the plug being removed from the socket.

Manufacturer: STC

Variants:

TSR No. 1006A - DELTAPHONE with dial, mid-brown (see above).

TSR No. 1016A - DELTAPHONE DELUXE with push button keypad. Red, green.

TSR No. 8006A - As TSR 1006A but with PST line cord.

TSR No. 8016A - As TSR 1016A but with PST line cord.

More information on Telephones Special Range

Sales Brochure - PH2523

Country of Origin - Belgium (ATEA).

Introduced in 1981.
