KTV
TELEPHONE BC 301

TELEPHONE - TABLE
For CB telephone systems

BC 301

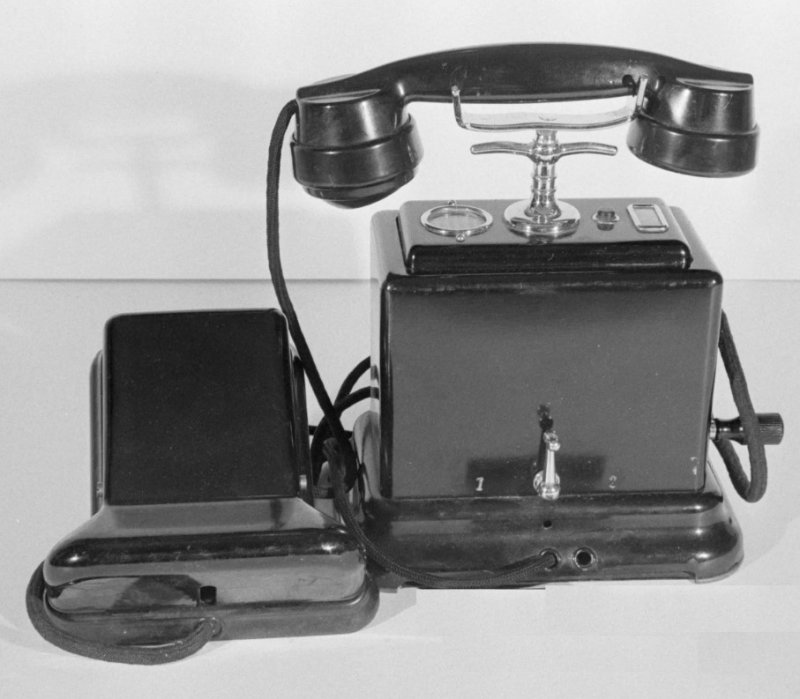

This is a table model with a steel case and handset of Bakelite.  It is an intermediate station set for central battery.  It has a switch and an indicator.  The incoming bell is contained in a wall mounted Bellset.

This set can be connected to two extensions via the front switch.

When the switch is placed in the centre position, the two wires are connected. In the left (1) and right (2) positions, the device is connected to the respective extension.  Calls between two devices cannot therefore be intercepted by the third.

Made by KTV.
