Case No. 1
A wooden case used with Bellsets No. 1, 15 and Telephone No.
121.
Constructed of American
Walnut, Black Chuglam, Pyinma, Haldu, Tasmanian Myrtle or African Mahogany.
The pictures shows a case with bell
components installed.
Drawing - 7276.
Dimensions -
9.5" x 6.75" x 3.5". |
|
Case No. 2
Wooden case used with generators and wall sets.
Wall
fixing holes are in each corner and not hidden within the case.
Constructed of American
Walnut, Black Chuglam, Pyinma, Haldu, Tasmanian Myrtle or African Mahogany.
Drawing - 7277.
Dimensions - 9.5" x 7.5" x 5.25".
|
|
Case No. 3
A wooden case used for small Bells.
Dimensions - 8 inches high by 6.75 inches across.
The pictures shows a case with bell components installed.
|
|
Case No. 7
A wooden case used with Bellsets (Bellset No. 23,
with components installed, shown in picture).
Constructed of American
Walnut, Black Chuglam, Pyinma, Haldu, Tasmanian Myrtle or African Mahogany.
Introduced circa 1929.
Drawing - 9107.
Dimensions -
10.5" x 6.75" x 3.7".
|
|
Case No. 8 and 8A
An oblong wooden case constructed of Mahogany, with a
strengthened top.
The door is
secured with a Lock, Screw No. 1C.
Introduced circa 1932.
Drawing - 9231.
Dimensions (No. 8) - 10" x 6" x 7".
Dimensions (No. 8A) - 10" x 8" x 8".
|
|

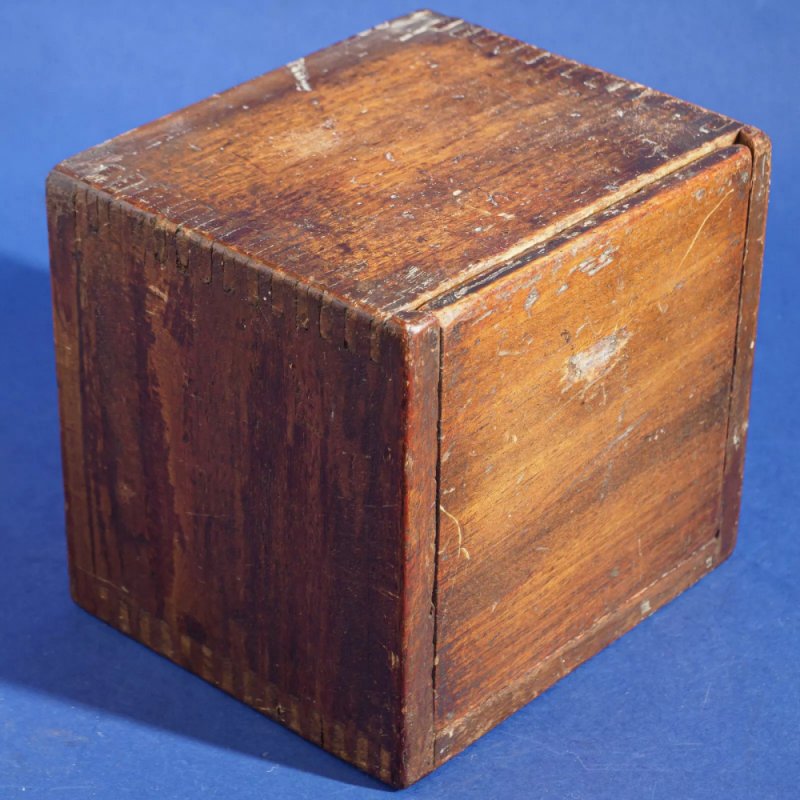

Case No. 9
These were fitted on or close to PMBX Switchboards.
They
were used to house a spare dial.
|
Click to
enlarge
|
Case No .10
A wooden case used with Bellsets.
They could be constructed of American
Walnut, Black Chuglam, Pyinma, Halou, Tasmanian Myrtle or African Mahogany.
Drawing - 9461
Dimensions - 11.1" x 6.75" x 2.75".
|
|
Case No. 13A
A case for use with Ohmmeter No. 17A and 19A Mark 1.
Drawing - 92632.
|
|
Case No. 14B
A case for use with Ohmmeter No. 19A Mark 2.
Drawing -
CD2334.
|
|
Case No. 24
This is a small wooden cabinet that is normally used to accommodate meters,
rotary switches or a Lamp, Alarm Indicating No. 4.
Dimensions - 8.4" x 5.2" x 2.9".
Drawing - 63702.
Click here for additional information |
|

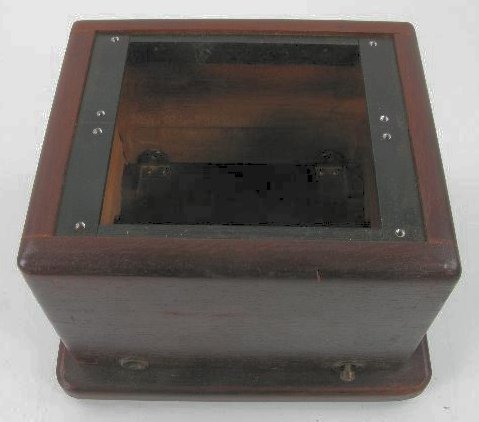

Case No. 30
Small wooden case that can accommodate 5 lever keys, vertical
type, on a Key-mtg., KG with a Key-mtg., KG, dummy, or alternatives
Dimensions -
4.5" x 7.25" x 6.25".
Drawing - 71013.
|
|

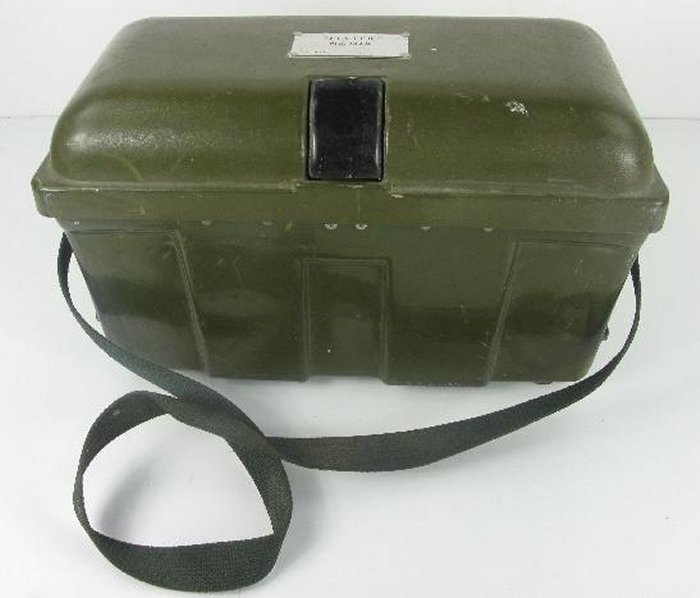

Case No. 110A
This is a case designed to hold all the parts required for a
Tester No. 132.
Made of
Acrylonitrile Butadiene Styrene they can be coloured Green or
Yellow.
Drawings - CD1453, 91770, 91824 and 91828.
|
Click here for more pictures
|
Case No. 200A
This wall mounted, plastic case, is used to house a small
quantity of passive line terminating transmission equipment (62 type
sub units) at
customers premises. The front of the case contains two 'snap'
off covers.
To be requisitioned separately if required:-
1 x Mounting D 79021.
Drawing - RPA6951 and 79010.
Circuit diagrams - RP/RPW6902.
Dimensions - 7.25" x 6.5" x 3".
Click here for
additional information
|
|

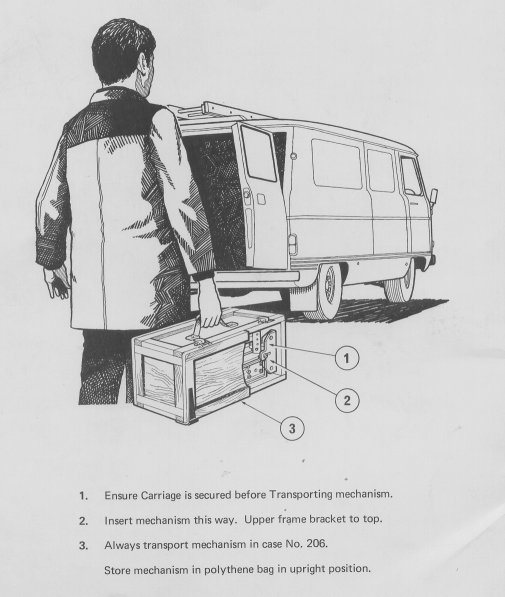

Case No. 206
Used for the transportation of Coinbox Mechanisms - Mechanisms
No. 20 and 24.
Made
of plywood and painted battleship grey.
Drawing - 300129. |
|
Case No. 228
A case for mounting 62 type transmission equipment at customers
premises.
Provides 36 modules of mounting space. Similar
applications to Case No. 200 and Case No. 204.
|
|
Case No. 231
Used when a Bell No. 75B is fitted externally.
|
|
Case No. 232
The Case 232A is designed for use at customers' premises for
wall-mounting 62-type cards. Internal accommodation comprises 2
frameworks, one vertically above the other, each providing for 2, 12
'module' 62-type cards.
Drawing - CD2635.
|
|
