GENERATORS

Generators can be identified by numbers with one or two suffix letters.  The number is the generator model followed by a letter which signifies the resistance (A to L used), whilst the additional suffix letter (N to Z) will signify that the generator is mounted in some way.

The resistance letters are:-
A = 500 ohms
B = 450 ohms
C = 400 ohms
D = 300 ohms
E = 200 ohms
F = 110 ohms
G = 60 ohms

Refer to diagram for explanation of the Connection Code - Diagram T. L. 707. or N1200.

Handles are fixed by means of a screw, bayonet connection or by a threaded spindle.  To remove the handle on a threaded spindle, turn the handle anticlockwise - or give it a quick flick anticlockwise.


Generator No. 2A

Generator of 500ohms with three magnets.

Connection code K.

Diagram - T. L. 707. or N 1200.

Weight - 5lb 2oz.

Includes:-
1 x Handle, Generator No's 2A, 7, 9, 15, 19, 20 or 21.

Used on the Telephone No's 13 and 25.

Superseded by No. 8A.

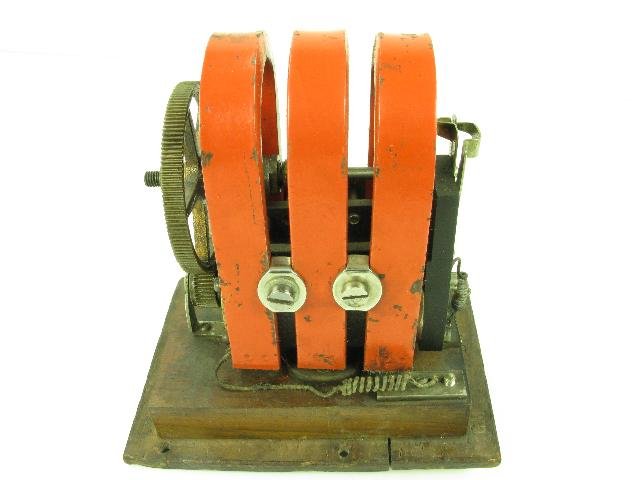

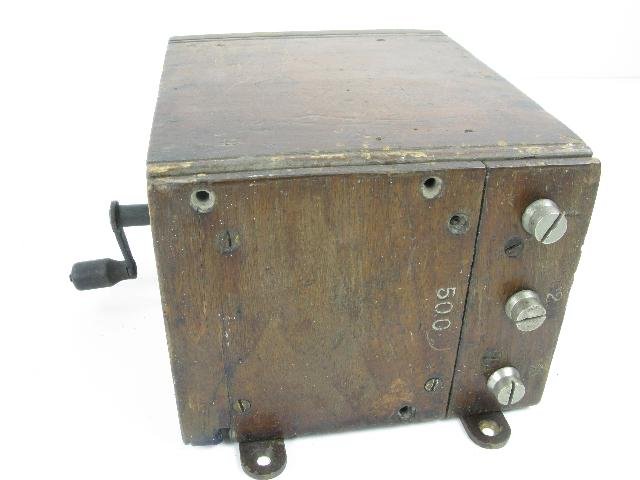

Generator No. 2AN

A wooden cased, wall mounted generator of 500ohms with three magnets.

Connection code K.

Diagram - T. L. 707. or N 1200.

Includes:-
1 x Generator No. 2A.
1 x Handle, Generator No. 9.

Superseded by Generator No. 8AN.

Click here for more information




Generator No. 3A

Generator of 500 ohms with four magnets.

Connection code L.

Diagram - T. L. 707. or N 1200.

Includes:-
1 x Handle, Generator No. 4.

Superseded by Generator No. 8A.

War Department part - YA6809.

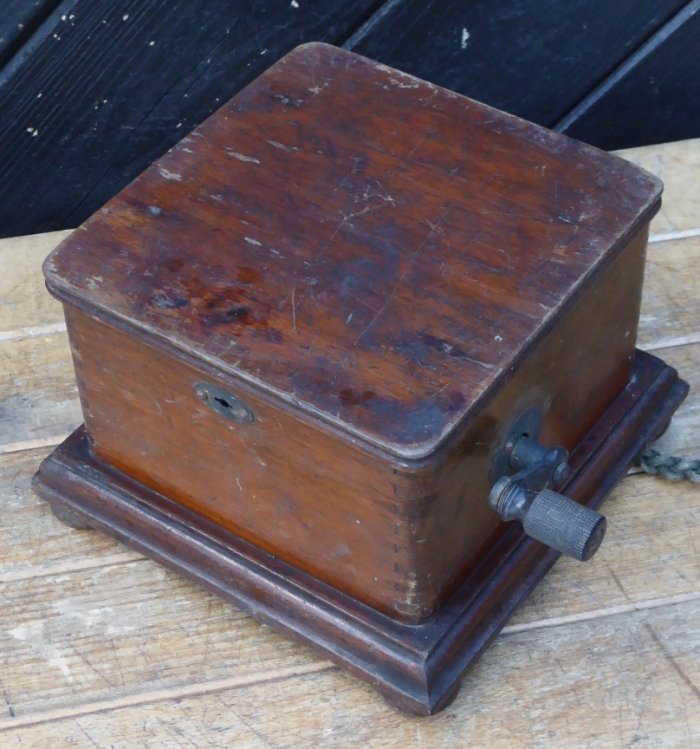

Generator No. 3AN

Cased generator for table or wall fixing.  The Mark 234 includes a Generator No. 3A.

Connection code L (Mark 234).
Connection code F (Mark 2013A).
Connection code B (Mark N.T.9).
Connection code E (Mark GNH).

Diagram - T. L. 707. or N 1200.

Superseded by Generator No. 8AN.




Generator No. 4C

2 magnet (Marks 234 and 235) or three magnet (Mark 236).

Coil resistance is 400ohms.

Connection code K.

Diagram - T. L. 707. or N 1200.

Includes:-
1 x Handles, Generator No. 6.

Used on the Telephone No's 11 and 13.

Drawing - 62970 (Mark 4).





Generator No. 4CN

Table or wall fixed generator in a wooden case.

Connection code K.

Diagram - T. L. 707. or N 1200.

Includes:-
1 x Generator No. 4C.
1 x Handles, Generator No. 6.

Connection would be via a Cord, Instrument No. 3/13B 54".

Used with Telephone No's 4 and 26.

Made by Ericsson, their part N8480A (diagram N10567) or GEC (diagram KS7172).

Drawing - 8641.

These were also used in Australia.

Click here for more information



Generator No. 4CO

For use on Telephone No. 59 (Mark N.T. 8).




Generator No. 4CP

Table or wall fixed generator in a wooden case. As the No. 4CN but has a capacitor fitted in the case.

Connection code K.

For external extension stations on circuits connected at the main station to a Bellset, No. 20 or No. 39.

Diagram - N1597.

Includes:-
1 x Generator No. 4C.
1 x Condenser, M.C., No. 1 or No. 102.
1 x Handle, Generator No. 6.

Connection would be via a Cord, Instrument No. 3/13B 54".

These were also used in Australia.

Made by Ericsson, their part N8480 (diagram N10567) or GEC their part C1897 (diagram KS7172).

Drawing - 8641.

Weight - 4lb 10oz.

Click here for an internal view



Generator No. 5E

Generator of 200ohms with four magnets.

Diagram - T. L. 707. or N 1200.

Includes:-
1 x Handle, Generator No. 12.




Generator No. 5EN

Wall mounted generator.

Connection code O.

Diagram - T. L. 707.

Includes:-
1 x Generator No. 5E.




Generator No. 8A

Generator of 500ohms with four magnets.

Connection code K.

Diagram - T. L. 707. or N 1200.

Includes:-
1 x Handle, Generator No. 16 (mark 2010).
1 x Handle, Generator No. 13 (mark 234).

Supersedes Generator No's 2A, 3A and 20A.

Drawing - 8800.

Click on the picture for more information





Generator No. 8AN

For table or wall fixing.

Connection code K.

Diagram - T. L. 707. or N 1200.

Includes:-
1 x Generator No. 8A.
1 x Handle, Generator No. 7.

Supersedes Generator No's 2AN, 3AN and 20AN.

Used on Call Bell Systems and when a Generator No. 4 in insufficient.


Generator No. 10G

Generator of 60ohms with nine magnets.

Connection code O.

Diagram - T. L. 707. or N 1200.

Used on Call Bell Systems.


Generator No. 11A

Generator of 60ohms with nine magnets.

Connection code O.

Diagram - T. L. 707. or N 1200.

Includes:-
1 x double pulley.




Generator No. 11AN

Generator with "Busy back gear".

Includes:-
1 x Generator No. 11A.




Generator No. 12A

Generator of 500 ohms with four magnets.

Connection code P.

Diagram - T. L. 707. or N 1200.




Generator No. 12AN

Generator with 4 magnets for wall fixing.

Connection code P.

Diagram - T. L. 707. or N 1200.

Includes:-
1 x Generator No. 12A.




Generator No. 13F

Generator of 110 ohms with five magnets.

Connection code K.

Diagram - T. L. 707. or N 1200.




Generator No. 13FN

Wall mounted generator of 110ohms with five magnets, used on fire systems.

Connection code K.

Diagram - T. L. 707. or N 1200.

Includes:-
1 x Generator No. 13F.
1 x Handle, Generator No. 19.

Used on Call Bell Systems.




Generator No. 15

Generator of 500 ohms with four magnets.

Connection code F.

Diagram - T. L. 707. or N 1200.

Used on switchboards.
AN, AP and AQ variants.

Obsolete in 1947.

Superseded by Generator No. 26....




Generator No. 20A

Generator of 500 ohms with four magnets.

Connection code D or F.

Diagram - T. L. 707. or N 1200.

Includes:-
1 x Handles, Generator No. 13.
1 x Handles, Generator No. 16 (Mark 2013).




Generator No. 20AN

Table or wall fixing.

Connection code D.

Diagram - T. L. 707. or N 1200.

Includes:-
1 x Generator No. 20A.

Superseded by Generator No. 8AN.




Generator No. 23A

Generator of 500 ohms with four magnets.

Connection code C.

Diagram - T. L. 707. or N 1200.




Generator No. 24A

Generator of 500 ohms with four magnets.

Connection code M.

Diagram - T. L. 707. or N 1200.




Generator No. 26A

Generator of 500ohms with one magnet (Alnico).  They are generally installed inside apparatus like telephones and switchboards and are supplied without any casing.

Connection code K.

Drawing - 62257

Diagram - T. L. 707. or N 1200.

Specification - D1529.

In general use from the 1930's onwards.

These superseded Generator No's 4C & 8A.

Ericsson Part No. N4649.

There were three iterations of this generator: Mark 1, Mark 2 and Mark 3.

War Department number - YA2287.





Generator No. 26AN

Generator for table or wall fixing.  The four case fixing screws are captive.

Includes:-
1 x Generator No. 26A.
1 x Handle Generator No. 20.

Ericsson Part No. N8486A1.

Drawing - 63753.

Diagram - LD121 (Mark 3).

Specification - D1529.

War Department number - YA2287

Click here for more information



Generator No. 26AP

Generator for table or wall fixing.   The four case fixing screws are captive. Similar to the No. 26AN but has a capacitor fitted.

Used on extension telephones, on long circuits, connected at the main station to Bellset No. 20 when Generator No. 4CP is not powerful enough.

Includes:-
1 x Condenser, M.C., No. 102.
1 x Clip, No. 14.
1 x Generator No. 26A.
1 x Handle, Generator No. 20.

Ericsson Part No. N8486A2.

Drawing - 63753.

Diagram - LD121.

Specification - D1529.

Click here for more information



Generator No. 28H

Generator - uncased.

Includes:-
1 x Handle, Generator No. 19.
1 x Generator No. 28H.

Used on Call Bell Systems.

Drawing - 62370 (Mark 1).

Specification - D1721.




Generator No. 28HN

For table or wall fixing and fitted with a case No. 54.

Used in call-bell systems.

Includes:-
1 x Case No. 54.
1 x Handle, Generator No. 19.
1 x Generator No. 28H.

Used on Call Bell Systems.

Drawing - 63269 (Mark 1).

Diagram - LD121 (Mark 1).

Specification - D1721.

The Generator No. 28HN (Mark 1) was made by Ericsson, their part number N8486C.





Generator No. 106

Click on the picture for more information.
