The GPO used wallboards for many purposes and this meant that a number of standard boards were made available.  These were ordered by size. i.e. Wallboard 12" x 7".

In the mid 1930's specialist wallboards for coin boxes where introduced and these were prefixed by the letter "D".

Standard Wallboards

When using standard wallboards engineers would refer to dimensioned layout drawings when using the appropriate wall board.  These wallboards were supplied with no fittings.

Available from circa 1912.

Corner stand off blocks were approximately 3/4inch thick (if fitted).

Wallboards available (Inches):-

Early Wallboards

Height Width Depth Finish Drawing
12 7
15 14
16 10
21 15
24 16 5/8
27 24
33 18
34 27
48 29.75 3/4 Walnut 8700
53 30
57 30


Later Wallboards
(Plywood with 3/4" corner standoffs)

Height Width Depth Finish Drawing
12 9 7/8 Grey Paint or Walnut 7123
18 14 7/8 Grey Paint or Walnut 7123
21 15 7/8 Grey Paint or Walnut 7123
24 16 7/8 Grey Paint or Walnut 7123
33 18 7/8 Grey Paint or Walnut 7123
34 27 7/8 Grey Paint or Walnut 7123
36 24 7/8 Grey Paint or Walnut 7123



Wallboard Pre-fixed with the Letter "D"
These wallboards were used with coinbox apparatus and would be ordered by number. i.e. Wallboard D60577.  Some wallboards had items fitted and many required additional items to be fitted on installation.


D60577 - Early type
See also D63747 and D63858)
A wallboard of 48" x 29" overall, comprising of two parts and finished in black and chromium.
For Telephone Cabinets and Kiosks.

Drawings - EC1851 and 60577.

To be requisitioned as:-
1 x Wallboard D1/60577 {upper part) and/or 1 x Wallboard D2/60577 (lower part)

To be requisitioned separately as required:-
Battens for Wallboard D60577 (Used in Kiosks, Nos. 2 and 4)
1 x Desk No. 19
1 x Label No. 231 - (For C.B. circuits with Press-Button for Emergency Calls)
1 x Part 1/SCA/1 - (For C.B. circuits with Press-Button for Emergency Calls)
1 x Partition D60967
8 x Screws for wood, iron, blued, No. 14 Round Head 1.5"
(When Wallboard is to be fitted in a Kiosk other than No.6).


D1/60577 - Pre 1960
Upper part of Wallboard D60577. Fitted with notice and mirror frames.

Dimensions are 30" x 29".

Drawing - 60577

Fitted with:-
1 x Frame, Mirror No. 1
2 x Frames, Notice No. 29 (with pasteboard sheet)
1 x Frame, Notice No. 30 (with Glass No. 50 and pasteboard sheet)
1 x Frame, Notice No. 31 (with Glass No. 51 and pasteboard sheet)
1 x Mirror No. 1
Note:- Glasses No. 49 must be obtained separately.


D1/60577 - Post 1960
Upper part of Wallboard D60577. Fitted with notice and mirror frames.

Dimensions are 30" x 29".

Drawing - 60577

Fitted with:-
1 x Frame, Mirror No. 1
3 x Frames, Notice No. 29 (with pasteboard sheet)
1 x Frame, Notice No. 31 (with Glass No. 51 and pasteboard sheet)
Note:- Glasses No. 49 must be obtained separately.


D2/60577 - Pre 1960
Lower part of Wallboard D60577.
Fitted with directory and parcels receptacles, the tops of which form desks for directory and telephone respectively.

Dimensions are 18" x 29".

Drawing - 60577

Includes:-
Containers Nos. 1 and 2.


D2A/60577 - Post 1960
Lower part of Wallboard D60577.
For mounting Boxes C.C. No. 705 in kiosks Nos. 1, 2, 3, & 6 and Standard Cabinets in provincial areas.
Fitted with one parcels receptacle, the top of which forms a desk.

Dimensions are 18" x 29".

Drawing - 60577

Includes:-
1 x Brackets, Mounting D91092
1 x Container No. 2.


D3/60577 - Post 1960
Lower part of Wallboard D60577.
For mounting Boxes C.C. No. 705 in kiosks Nos. 1, 2, 3, & 6 and Standard Cabinets in provincial areas.

Drawing - 60577

Includes:-
1 x Bracket, Mounting D91092
1 x Container No. 5.


D4/60577 - Post 1960
Lower part of Wallboard D60577.
For mounting Boxes C.C. No. 705 in kiosks Nos. 1, 2, 3, & 6 and Standard Cabinets in STD areas in London.

Drawing - 60577

Includes:-
2 x Bracket, Mounting D91092
1 x Holder, Directory No. 5.

To be requisitioned separately as required:-
Labels No. 400, 400A to 400D.


D60577 (Later model)
For Telephone Cabinets and Kiosks.
Comprises of two parts.

To be requisitioned as:-
Wallboard D6/60577 (upper part) and
Wallboard D9/60577 (lower part).

To be requisitioned separately as required:-
Battens for Wallboard D60577 (used in Kiosks No. 2 and 4)
8 x Screws for Wood Zinc plated, countersunk slotted 1.5in. size 16.
Lower Wallboard for STD areas in London.
Includes: Holder Directory No. 5.

To be requisitioned separately as required:-
Label No. 400.


D6/60577
Upper part of Wallboard D60577.

Fitted with:-
3 x Frames Notice No. 29 (with pasteboard sheet)
1 x Frames Notice No. 31 (with pasteboard sheet)

To be requisitioned separately:-
Glass No. 49
Glass No. 51


D9/60577
Lower part of Wallboard D60577.
For mounting kits No. 177A in Kiosks Nos. 1, 2, 3, 6 and 8 and in STD cabinets.

To be requisitioned separately as required:-
Container No. 5 or Holder Directory No....


D63747
A wallboard composing of two parts and finished in black and chromium.

For layout of apparatus in telephone cabinets where width is insufficient to accommodate a D60577.

Dimensions are 48" x 26" overall.

Drawing - 63747.

To be requisitioned as:-
Wallboard D1/63747 (upper part) and
Wallboard D2/63747 (lower part).


D1/63747
Upper part as for Wallboard D1/60577 except only used here width is insufficient to accommodate a D60577.

Dimensions are 30" x 26".

Drawing - 63747.

Fitted with:-
2 x Bracket, Mounting DH 6.5"
2 x Bracket, Mounting DH 8.1"
1 x Frame, Mirror No. 1
2 x Frame, Notice  No. 29 (with Glass No. 49 and pasteboard sheet)
1 x Frame, Notice  No. 30 (with Glass No. 50 and pasteboard sheet)
1 x Frame, Notice  No. 31 (with Glass No. 51 and pasteboard sheet)
1 x Mirror No. 1


D2/63747
Lower part as for Wallboard D2/60577 except only used here width is insufficient to accommodate a D60577.
Fitted with directory and parcels receptacles, the tops of which from desk for directory and telephone, respectively.

Dimensions are 17.9" x 26".

Drawing - 63747.

To be requisitioned separately as required:-
1 x Desk, No. 19
1 x Label No. 231 - (for C.B. circuits with press-button for emergency calls)
1 x Part No. 1/SCA/1 - (For C.B. circuits with Press-Button for Emergency Calls)
1 x Partition, D60967
8 x Screws for wood, iron, blued, No. 14, round head, 1.25" when the wallboard is to be fitted in a kiosk other than No. 6.


D63859

For alternate use to Wallboard D60577 as a war-time measure.
For telephones in telephone cabinets and kiosks.

Dimensions are 48" x 29" overall.

Diagram - EC1872.

To be requisitioned separately:-
1 x Bracket, Telephone No. 12
1 x Desk No. 21

To be requisitioned separately as required:-
Battens, Wallboard 60577 (Used in Kiosks Nos. 2 and 4).
1 x Label No. 231 - (For C.B. circuits with Press-Button for Emergency Calls)
1 x Part No. 1/SCA/l  - (For C.B. circuits with Press-Button for Emergency Calls)
8 x Screws for wood, iron, blued, round head, No. 14 x 1.25"
(when the wallboard is to be fitted in a kiosks other than No. 6)
1 x Box, Battery, Leclanché WK 4, 2-cell, C.O. (for C.B.S. call-office ccts).
2 or 3 Cells, Leclanché DR 2 (for C.B.S. call-office ccts).


D90650
For subscribers coin box installations (LONDON).

Drawing - 90650.

Includes:-
2 x Frames, Notice No. 30
1 x Frames, Notice No. 31
Brackets, Mounting DH, DQ, FC, as required.
Glasses No.... with pasteboard sheet.

To be requisitioned separately:-
1 x Bracket, Telephone No. 12, Black.
1 x Part No. 1/SBA/2, Black.
3 x Screws wood, iron, countersunk. flat head, No. 12 x 2.5"
1 x Screws wood, iron, round head, No. 12 x 2.25"


D90651
For subscribers coin box installations (Provinces).

Drawing - 90651.

Includes:-
1 x Frames, Notice No. 30
1 x Frames, Notice No. 31
Brackets, Mounting, DH, DQ, FC, as required.
Glasses No.... with pasteboard sheet.

To be requisitioned separately:-
1 x Bracket, Telephone No. 12, Black.
1 x Part No. 1/SBA/2, Black.
3 x Screws, wood, iron, countersunk flat head No. 12 x 2.5”
1 x Screws, wood, iron, round head No. 12 x 2.5"


D91128
For Boxes C.C. No. 705 in subscribers premises.

Dimensions are 32.25" x 16".

Drawing - 91128.

Includes:-
1 x Frame, Notice No. 30
1 x Frames, Notice No. 31
2 x Brackets Mounting DH
2 x Brackets, Mounting DQ
1 x Glass No. 50
1 x Glass No. 51


D1/95073 - Post 1981
Steel interface plate for fitting Coin Telephone No. 22 in Kiosk No. 6 or No. 8.

Drawing - 95073/1.

To be requisitioned separately:-
1 x Wallboard D2/95073
1 x Wallboard D3/95073 or D4/95073 as appropriate.


D2/95073 - Post 1981
Wallboard when fitting Coin Telephone No. 22 in Kiosks No. 6 or No. 8.

Drawing - 95073/2.

To be requisitioned separately:-
1 x Wallboard D1/95073
1 x Wallboard D3/95073 or D4/95073 as appropriate.


D3/95073 - Post 1981
Upper wallboard used when fitting Coin Telephone No. 22 in Kiosk No. 6 or 8A or 8B.
For Kiosk No. 8C or 8D use Wallboard D4/95073.

Drawing - 95073/3.

To be requisitioned separately:-
1 x Wallboard D1/95073
1 x Wallboard D2/95073.


D4/95073 - Post 1981
Upper wallboard used when fitting Coin Telephone No. 22 in Kiosk No. 8C or 8D.
For Kiosk No. 6 or 8A or 8B use Wallboard D3/95073.

Drawing - 95073_4.

To be requisitioned separately:-
1 x Wallboard D1/95073
1 x Wallboard D2/95073.


D97043 - Post 1983
Interface plate for fitting Coin Telephone No. 24 in Kiosks Nos. 6 or 8.

Drawing - 97043.

To be requisitioned separately as required:-
1 x Wallboard D97044.
1 x Kit No. 557A or 558A as appropriate.


D97044 - Post 1983
Wallboard used when fitting Coin Telephone No. 24 in Kiosks Nos. 6 or 8.

Drawing - 97046.

To be requisitioned separately as required:-
1 x Wallboard D97043.
1 x Kit No. 557A or 558A as appropriate.

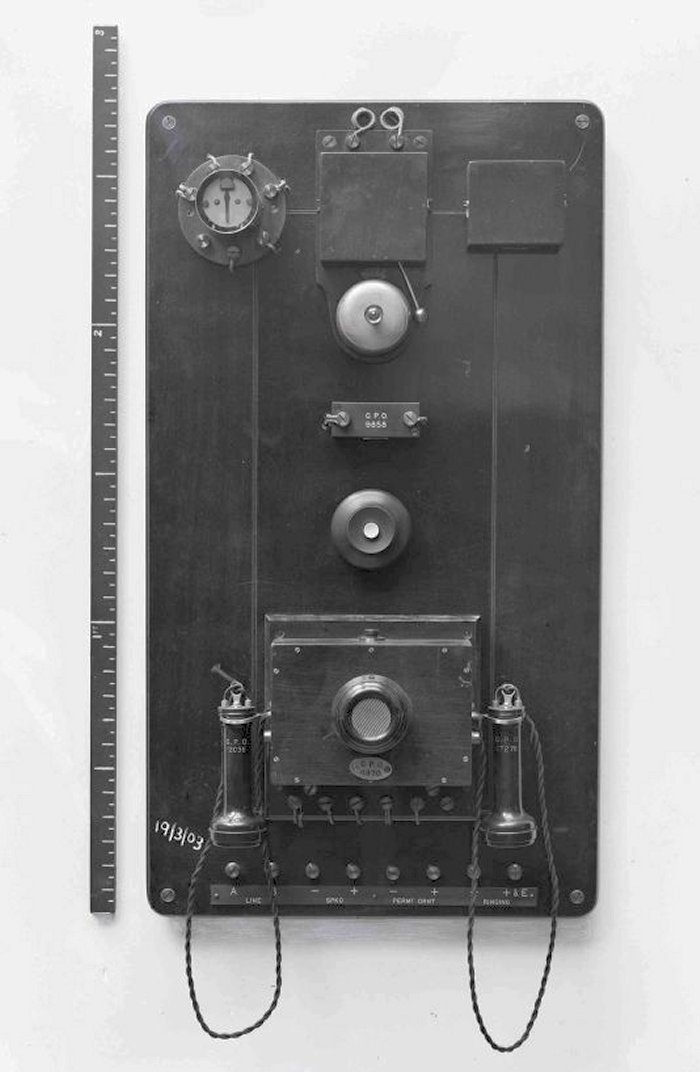

Typical use of a Wallboard
In this case a 33inch x 18inch board is used to wall mount a telephone and associated equipment
