When the GPO took over the NTC they
inherited all their equipment. Most NTC telephones were renamed as
"Instruments, Subscriber, Wall/Table, N.T. No. X. Many of these were made
obsolescent relatively quickly but some were also subsumed into the equivalent GPO
telephone numbered type, bypassing the "Instruments, Subscribers" stage.
This section is
built from the GPO Rate Books and NTL diagrams, with the
descriptions split into Table and Wall models. For clarity, NTL
telephones that did not fit the new GPO Rate Book descriptions have also
been added but no GPO title is shown.
Aligning descriptions with the
instrument pictures was also difficult as no definitive documents are
available. Corrections gratefully accepted.
| GPO/NTC Title |
Description |
|
TABLE TYPES |
|

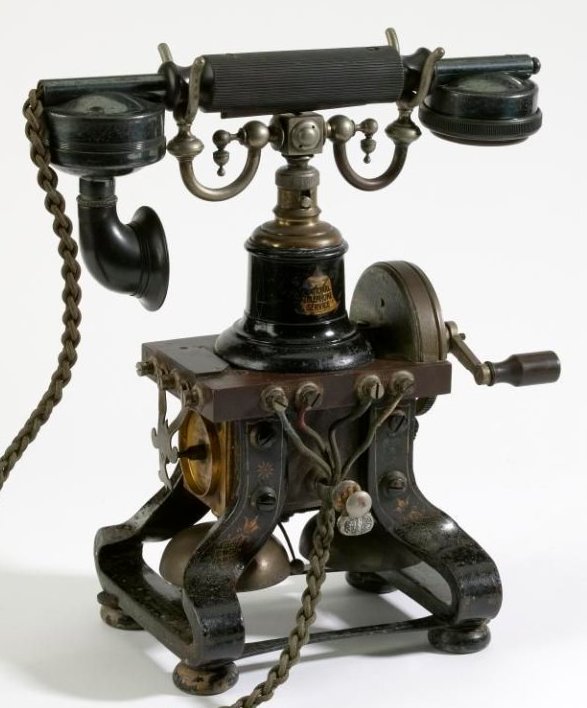

Instruments,
Subscribers', Table, N.T. No. 1
Click picture to enlarge
|
Corporation style telephone for Magneto or
CBS circuits (metal or wood
case). Manufactured by Ericsson.
NTC called
this the Telephone, Table No. 1 or Subscriber's, Table, Instrument L.B. (S.L. 1).
Superseded by the
NTC Subscriber's, Table, Instrument L.B. (S.L. 13).
The GPO
renamed this as the "Instrument, Subscriber's, Table NT No. 1".
Diagram N.T. 9370.
NTC type includes:-
1 x Bell, N.T.,
No. 1004A.
1 x Hand Micro-telephone.
1 x Coil, Induction 1/25.
1 x
Generator 500ohms, includes a Handle, Generator No. 17.
1 x Cord
No. 26 (6 conductor).
Added to the GPO Rate
Book as their
Telephone No. 88 or
Telephone No. 90.
GPO Diagram N302.
|
| Instruments,
Subscribers', Table, N.T. No. 2
|
For Magneto Circuits on call wire systems.
Manufactured by Ericsson.
NTC called this the Telephone,
Table No. 2.
Diagram N.T. 9371.
GPO type includes:-
1 x Bell N.T. No.
1003A.
1 x Coil, Induction 1/25.
1 x Cord,
Instrument No. 802.
1 x Generator 500ohms.
1 x
Key for call wire (non Rate Book).
1 x Telephone No. 28.
Added to the GPO Rate Book as their Telephone No. 16.
|
|
NTC, Telephone, Table No. 3 |
Metal cased table telephone
with handset and Call/Clearing Relay.
Manufactured by
Ericsson.
NTC called this the Telephone, Table No. 3.
Superseded by
the NTC Telephone, Table No. 14.
NTC type includes:-
1 x 1000ohm
Bell.
1 x Hand Micro-telephone.
1 x Induction Coil.
1 x
Generator 500ohms.
1 x Call and Clearing Relay 250ohms.
1 x
Cord No. 26 (6 conductor).
|

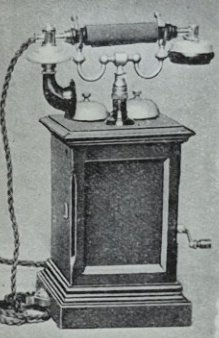

NTC, Telephone, Table No. 4
Click on picture to enlarge
|
Wooden cased Corporation style telephone for
Magneto or CBS circuits. Manufactured by British Ericsson.
NTC called this the
Telephone, Table No. 4 or Subscriber's,
Table, Instrument L.B. (S.L. 4).
The bells on this instrument
are external and fitted on the top or front of the case. The
handset could also be on the top or the left hand side of the case.
NTC type includes:-
1 x
1000ohm Bell.
1 x Hand Micro-telephone.
1 x Coil, Induction.
1 x
Generator 500ohms.
1 x Cord No. 26 (6 conductor).
Made
obsolescent by 1911.
|
| NTC, Telephone, Table
No. 5 |
Metal cased table telephone.
Manufactured by Ericsson.
NTC called this the Telephone, Table No. 5.
Superseded by the NTC Telephone No.
15.
NTC type includes:-
1 x
1000ohm Bell.
1 x Hand Micro-telephone.
1 x Induction Coil.
1 x
Generator 500ohms.
1 x Clearing Key.
1 x Cord No. 26 (6
conductor).
|
Instruments,
Subscribers', Table, N.T. No. 6
|
Used on Magneto party line circuits (wood case).
Manufactured by Western Electric.
NTC called this the
Telephone No. 6.
Diagram N.T. 9375.
GPO type includes:-
1 x Bell, Magneto, 1,000ohms.
1 x Coil, Induction, 1/25.
1 x Cord,
Instrument, No. 422.
1 x Plug, Instrument, N.T. No. 1.
1 x
Telephone No. 28, with Cord No. 421.
|
| NTC Telephone, Table
No. 7 |
Wooden cased, table, automatic
call box telephone used on party lines. Manufactured by
Ericsson.
NTC called this the Telephone, Table No. 7.
NTC type includes:-
1 x
1000ohm Bell.
1 x Hand Micro-telephone.
1 x Coil, Induction.
1 x Automatic Call Box.
1 x Cord No. 57.
|
| NTC Telephone, Table
No. 8 |
Wooden cased, table, telephone.
Manufactured by Ericsson.
NTC called this the Telephone,
Table No. 8.
NTC type includes:-
1 x 100ohm Bell.
1 x Hand Micro-telephone.
1 x Induction
Coil.
1 x Cord No. 57.
|

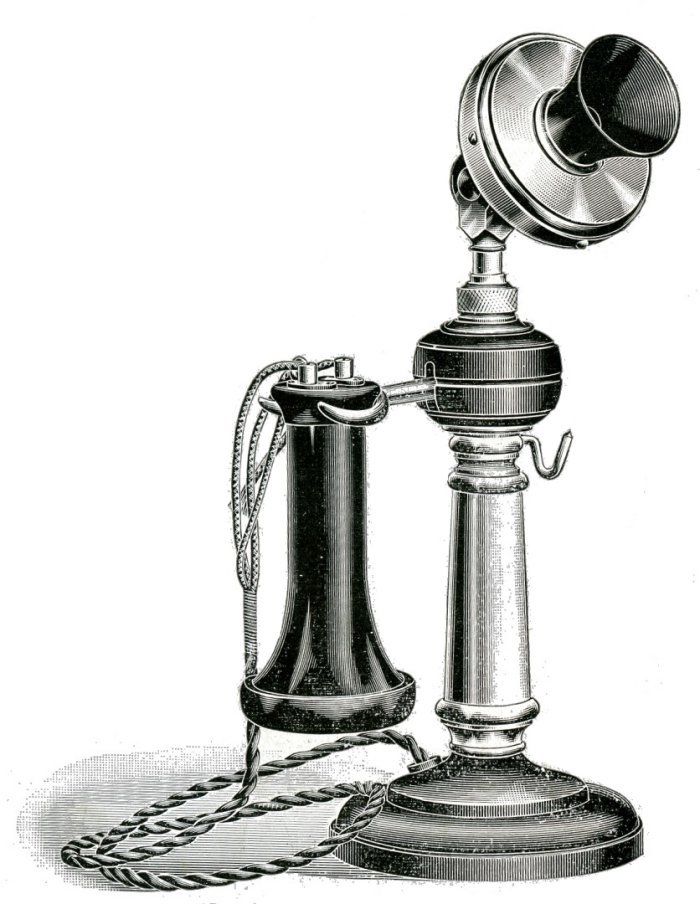

Instruments,
Subscribers', Table, N.T. No. 9
|
Pedestal telephone for CB
working. Manufactured by Western Electric.
NTC
called this the Telephone, Table No. 9 or Subscriber's, Table, Instrument C.B. (S.L. 9).
This was probably a Golfball style pedestal telephone as the
diagram shows a round terminal block inside the telephone.
Superseded by
the NTC Subscriber's, Table, Instrument C.B. (S.L. 11).
Diagram N.T. 9377.
NTC type included:-
1 x Solid Back Transmitter.
1 x
Receiver No. 10 (60ohm Bell Receiver).
1 x Cord No. 10 (3
conductors).
1 x Cord No. 33 (2 conductors).
This instrument was connected to Bell Case (S.L. 10), which housed a
1000ohm bell ringer, a 2.5uf capacitor and 17/26 Induction coil.
Add to the GPO Rate Book as
their
Telephone No. 2.
|
| NTC, Bell Case No. 10 |
NTC Bell Case No. 10.
Used on CB circuits. Manufactured by Western Electric.
This was superseded by the NTC Bell Case No. 12.
|
|

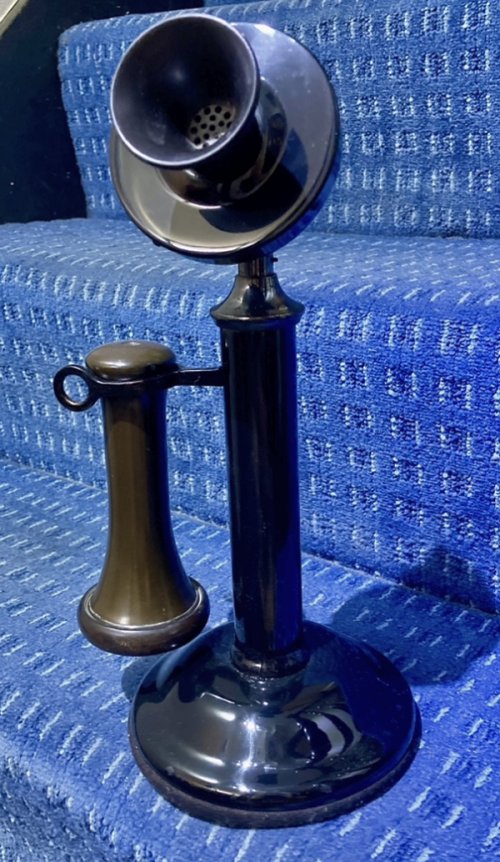

Instruments,
Subscribers', Table, N.T. No. 11
Click to enlarge picture
|
Pedestal type telephone used on
C.B. circuits. Finished in black vulcanite and bronze. Manufactured by Western Electric.
NTC called this
the Telephone, Table No. 11 or Subscriber's, Table, Instrument C.B.
(S.L. 11).
Superseded by the NTC Telephone No. 16.
Diagram N.T. 9378.
NTC type included:-
1 x Solid Back Transmitter.
1 x
Receiver No. 10 (60ohms).
1 x Detachable switchhook.
1 x Cord No. 43.
This instrument required connection to a Bell Case (S.L. 10 or
S.L. 12), which housed a
1000ohm bell ringer, a 2uf capacitor and a 17/26 Induction coil.
Added to the GPO Rate Book as
their
Telephone No. 2.
|
| NTC, Bell Case No. 12 |
NTC Bell case No. 12 for use on CB
circuits. Manufactured by Western Electric.
Used with
Telephone, Table No's 9, 11 and 16.
|
Instruments,
Subscribers', Table, N.T. No. 13
Click on picture to enlarge
|

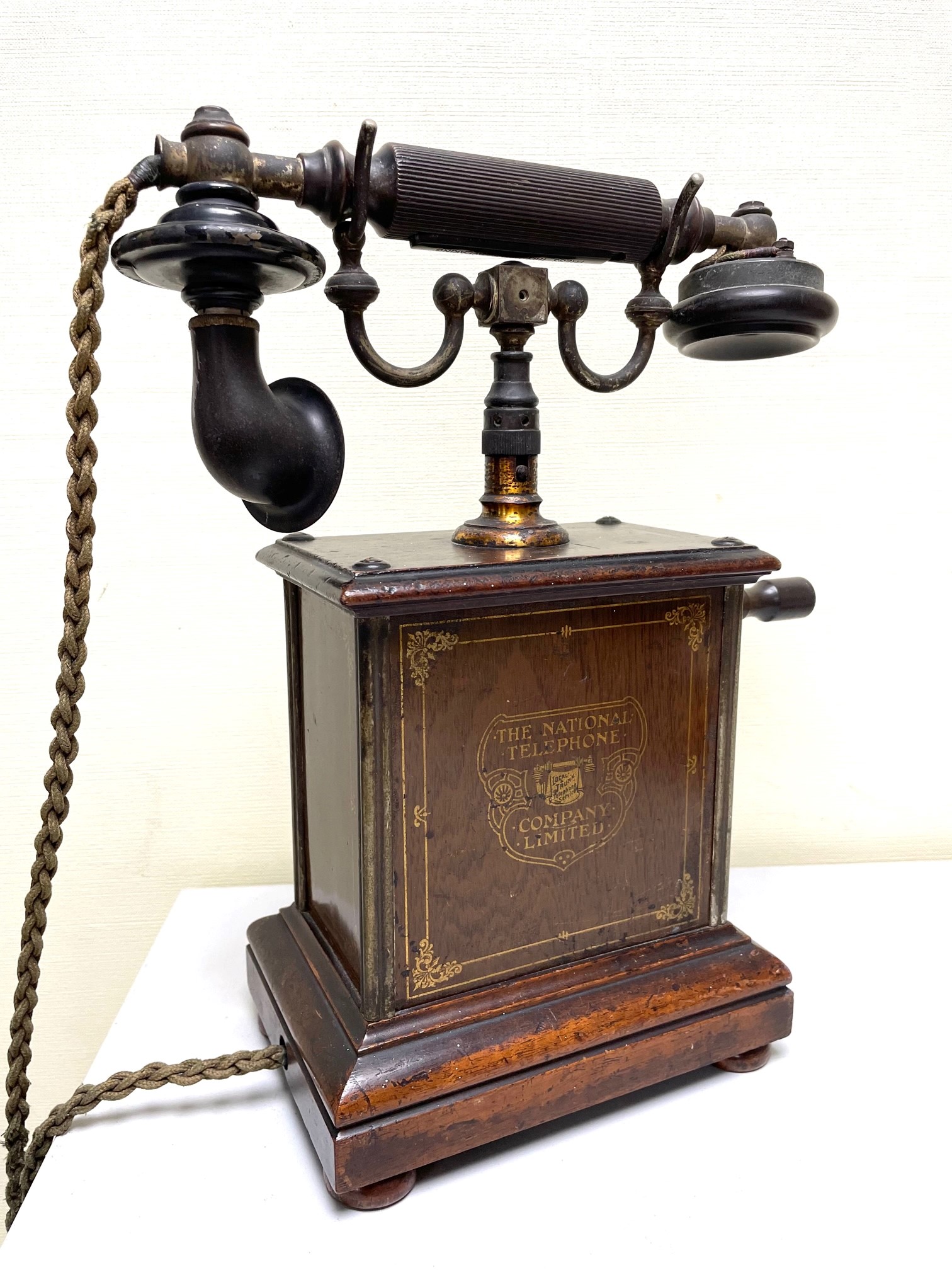

Corporation style telephone for Magneto or
CBS circuits (metal or wood
case). Manufactured by Ericsson.
NTC called this the
Telephone, Table No. 13 or the Subscriber's, Table, Instrument L.B. (S.L. 13).
The GPO renamed this as the "Instrument, Subscriber's, Table NT
No. 1".
Diagram N.T. 9370.
GPO type includes:-
1 x Bell, N.T.,
No. 1004A.
1 x Coil, Induction 1/25.
1 x Cord,
Instrument No. 606.
1 x Cord NT No. 56.
1 x Frame, Notice No. 1, nickelled.
1 x
Generator 500ohms includes 1 Handle, Generator No. 17.
1 x Glass No. 3.
1 x Rosette No. 5.
Added to the GPO Rate
Book as their
Telephone No. 88 or
Telephone No. 90.
Used in the
Ireland and the UK.
GPO Diagram
N302.
The GPO also
superseded this telephone with the GPO No. 16.
|
Instruments,
Subscribers', Table, N.T. No. 14
|
For Magneto circuits, with Electro-Magnetic
calling and clearing Key (metal case frame). Manufactured by
Ericsson.
NTC
called this the Telephone, Table No. 14.
Diagram N.T. 9372.
GPO type includes:-
1 x Bell, N.T., No. 1004A.
1 x Coil, Induction,
1/25 (to sample).
1 x Cord, Instrument..No. 606.
1 x Frame,
Notice, No. 1, nickelled.
1 x Generator 500ohms.
1 x Glass No. 3.
1 x Key, N.T., No. 46.
1 x Rosette No. 5.
1 x Telephone No. 28.
|
|

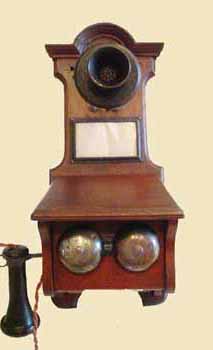

Instruments,
Subscribers', Table, N.T. No. 15
Click on picture to enlarge
|
For Magneto circuits with simple call key.
Manufactured by Ericsson.
NTC
called this the Telephone, Table No. 15.
Diagram N.T. 9374.
GPO type includes:-
1 x Bell, N.T., No. 1004A.
1 x Coil, Induction, 1/25.
1 x Cord, Instrument, No.
606.
1 x Frame, Notice, No. 1, nickelled.
1 x Generator 500w.
1 x Glass No. 3.
1 x Key.
1 x
Rosette No. 5.
1 x Telephone No. 28.
|
Instruments,
Subscribers', Table, N.T. No. 16
|
Pedestal telephone used on C.B.
circuits. It has a metal body finished in dull black enamel
and bronze. Manufactured by Western Electric. It
required a Bell Case No. 10, 12, 17 or 19.
NTC
called this the Telephone, Table No. 16.
NTC type included:-
1 x Solid Back Transmitter.
1 x Receiver No. 10.
1 x
Detachable switchhook.
1 x Cord No. 66.
1 x Cord No. 68.
Added to the GPO Rate Book as their Telephone No. 2.
|
Instruments,
Subscribers', Table, N.T. No. 17
|
Formally the NTC Bell Case No. 17.
Used on CB circuits. Made by Western Electric.
It was
an L.B. bell set that was convertible to C.B.
Diagram N.T. 7651.
Used with GPO Telephone No. 2 with a Generator
N.T. No. 9 and a speaking battery.
GPO type includes:-
1 x Bell,
Magneto, 1000ohms (non Rate Book)
1 x Coil, Induction, N.T. No. 1001
(1.75/18.5 ohms).
1 x Condenser, M.C., No. 1.
To Convert to C.B., replace Coil,
Induction, N.T. 1001 by a Coil, induction, No. 3, or No, 14. Alter
connections and recover Generator and speaking battery.
|
Instruments,
Subscribers', Table, N.T. No. 18
|
Formally the NTC Table
Telephone No. 18. It was known as the "Adjustaphone" and was
used on C.B. circuits. Manufactured by Western
Electric. For use with Bell Case No. 10, 12, 17 and 19.
NTC called this the Telephone, Table No. 18.
NTC type
included:-
1 x Solid Back Transmitter.
1 x Receiver No. 10.
1 x Detachable switchhook.
1 x Cord No. 66.
1 x Cord No. 68.
Added to the GPO Rate Book as
their Telephone No. 64.
|
| |
NTC Bell Case No. 19.
Used on CB circuits.
|
Instruments,
Subscribers', Table, N.T. Bristol Pattern, I.S.T.F C.B.
|
Added to the GPO Rate Book as
their Telephone No. 74. |
HOTEL TYPES
|
|
Instruments,
Subscribers', Hotel, Wall, N.T. No. 1
|
A small, wall mounted CB
telephone with a circular iron base, generally used in hotel rooms. There was no room in the case
for components so these were fitted in an adjacent bellset.
Manufactured by Western Electric.
Formally
called the Telephone, Hotel No. 1 or the Hotel, Wall, Instrument C.B. (S.L. 1) by NTC. This
instrument was connected to a Buzzer Case No. 1 or a Bell Case (S.L. 2).
These are fitted with a
1000ohm bell ringer (Bell Case), 1000 ohm Buzzer (Buzzer Case), 2uf capacitor and
a 17/26 Induction coil. Manufactured by Western Electric.
Diagram N.T. 9400.
NTC type includes:-
1 x Circular Iron case.
1 x
Switchhook.
1 x
Receiver No. 10 (Double Pole).
1 x Solid Back Transmitter.
Added to the GPO Rate Book as
their Telephone No. 63.
|
WALL TYPES
|
|
| Instruments,
Subscribers', Wall, N.T. No. 1
Click on pictures to enlarge
|
For ordinary Magneto circuits.
Manufactured by Western Electric.
NTC called this the
Telephone, Wall No. 1 (W.S. 2)
Diagrams N.T. 9390, Irish P&T TX1070, GPO CBS221 and
GPO N301.
GPO type includes:-
1 x Bell N.T. No. 1001A and No. 1002A.
1 x Coil, Induction, N. T. No. 2 or N.T. No. 12.
1 x
Generator 500ohms.
1 x Jack No. 8.
1 x Plug,
Instrument, N. T. No. 1.
Superseded by the GPO
Telephone No. 59 and sometimes rewired as the GPO
Telephone No. 69 (which has the generator
removed).
Also used by the Irish P&T as their
Telephone No. 101M Mark 551.
|
Instruments,
Subscribers', Wall, N.T. No. 2

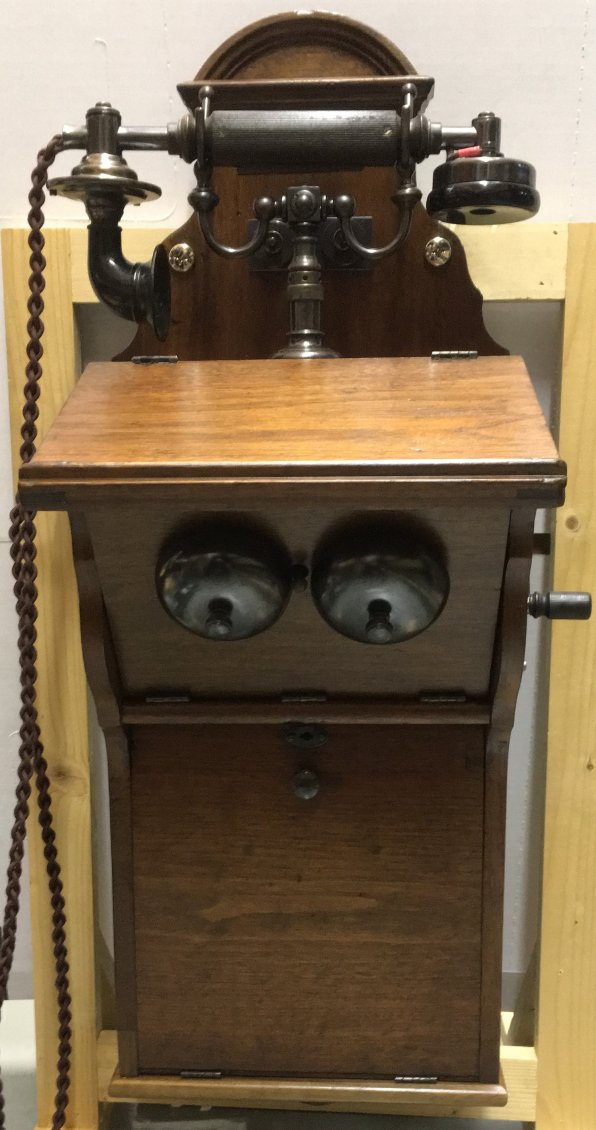

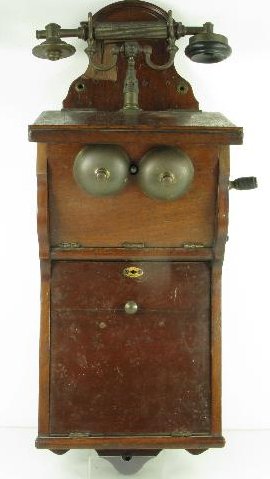

Click on picture to enlarge
|
This was one of the N.T.C. wall
telephones that were later rewired and renamed as the
GPO
Telephone No. 59 (with generator) or the
GPO
Telephone No.
69 (without generator). Manufactured by Ericsson.
NTC
called this the Telephone, Wall No. 2 or the Telephone, Wall No. 2 (W.S. 3).
NTC
type included:-
1 x Bell, Magneto, 1000ohms.
1 x
Induction Coil No. 2.
1 x Generator,
500ohms.
1 x Hand Micro-telephone.
1 x Cord No. 57.
GPO Diagram
N301.
|
Instruments,
Subscribers', Wall, N.T. No. 3
|
Magneto telephone with calling
wire key. Manufactured by Ericsson.
NTC called this the
Telephone, Wall No. 3 or the Telephone, Wall No. 3 (W.S. 3B)
GPO Diagram N303.
GPO type includes:-
1 x Bell, Magneto, 1000ohms.
1 x Hand
Micro-telephone.
1 x Coil,
Induction, 1/25.
1 x Generator, 500ohms.
1 x Call Wire Key.
This telephone has 6 terminals at the top of the backboard.
|
| NTC, Telephone, Wall
No. 4 |
This was a wall mounted telephone with a
handset and automatic call box. Manufactured by Ericsson.
NTC called this the Telephone, Wall No. 4 (W.S. 3C).
NTC
type included:-
1 x Bell, Magneto, 1000ohms.
1 x
Induction Coil.
1 x Generator,
500ohms.
1 x Hand Micro-telephone.
1 x Automatic Call Box.
Made obsolescent by 1911.
|
Instruments,
Subscribers', Wall, N.T. No. 5
|
For Magneto circuits with Electro-Magnetic
Key calling and
clearing. Manufactured by Ericsson.
NTC called this the
Telephone, Wall No. 5 (W.S. 3D).
Diagram N.T. 9394.
GPO type includes:-
1 x
Bell, Magneto, 1000ohms (to sample).
1 x Coil, Induction, 1/25
(to sample).
1 x Generator, 500ohms (to sample).
1 x Key N.T.
No. 40.
1 x Plug, Instrument, N.T. No. 1.
1 x Telephone, No.
28, with Cord No. 421.
|
Instruments,
Subscribers', Wall, N.T. No. 6
|
For Magneto circuits with simple call key.
Manufactured by Ericsson.
NTC called this the Telephone, Wall
No. 6 (W.S. 3E)
GPO type includes:-
1 x Bell, Magneto, 1000ohms.
1 x
Coil, Induction, N.T. No. 2, or N.T. No. 12.
1 x Generator,
500ohms.
1 x Call Key.
1 x Plug,
Instrument, N.T. No. 1.
1 x Telephone, No. 28, with Cord No. 421.
|
|

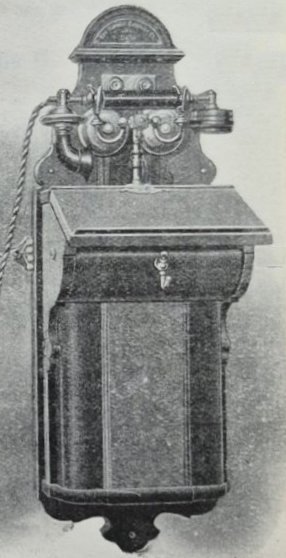

NTC, Telephone, Table No. 7
Click on picture to enlarge
|
NTC Telephone, Wall No. 7 (W.S.
3F). A wall mounted telephone with an 100ohm bell ringer and
handset. Manufactured by Ericsson.
NTC type included:-
1 x Bell, Magneto, 100ohms.
1 x
Induction Coil No. 2.
1 x Hand Micro-telephone.
1 x Cord No.
57.
|
Instruments, Subscribers', Wall,
N.T. No. 8
Click on picture to enlarge
|
NTC Telephone, Wall No. 8 (W.S.
3G). A wall mounted party line telephone.
NTC type
included:-
1 x Bell, Magneto, 1000ohms.
1 x
Induction Coil.
1 x Hand Micro-telephone.
1 x Cord No. 57.
This was one of the N.T.C. wall
telephones that were later rewired and renamed as the
Telephone No. 59 (with generator) or the
Telephone No.
69 (without generator).
Superseded by the GPO
Telephone No. 3.
|
| NTC, Telephone, Wall
No. 9 |
NTC Telephone, Wall No. 9 (W.S.
3BC). A wall mounted telephone with call wire key and
automatic call box. Manufactured by Ericsson.
NTC type
included:-
1 x Bell, Magneto, 1000ohms.
1 x
Induction Coil.
1 x Generator,
500ohms.
1 x Hand Micro-telephone.
1 x Call Key.
1 x
Automatic Call Box.
Made obsolescent by 1911.
|
| Instruments,
Subscribers', Wall, N.T. No. 10 |
NTC Telephone, Wall No. 10
(W.S. 3EE). A wall mounted telephone with 2 calling
keys. Manufactured by Ericsson.
NTC type included:-
1 x Bell, Magneto, 1000ohms.
1 x
Induction Coil No. 2.
1 x Generator,
500ohms.
1 x Hand Micro-telephone.
2 x Call Keys.
1 x Cord
No. 57.
This was one of the N.T.C. wall
telephones that were later rewired and renamed as the
Telephone No. 59 (with generator) or the
Telephone No.
69 (without generator). Manufactured by Ericsson.
|
|
Instruments,
Subscribers', Wall, N.T. No. 11
Click on picture to enlarge
|

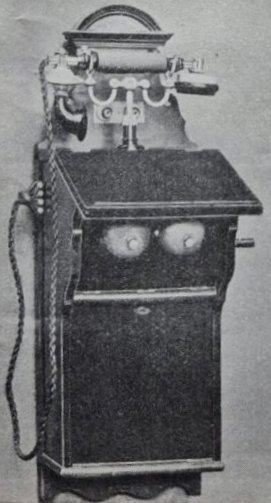

NTC Telephone, Wall No. 11
(W.S. 4). A wall mounted telephone with handset.
Manufactured by A.T.
NTC type included:-
1 x Bell, Magneto, 1000ohms.
1 x
Induction Coil No. 2.
1 x Generator,
500ohms.
1 x Hand Micro-telephone.
1 x Cord No. 57.
This was one of the N.T.C. wall
telephones that were later rewired and renamed as the
Telephone No. 59 (with generator) or the
Telephone No.
69 (without generator).
GPO Diagram
N301.
|
|
Instruments,
Subscribers', Wall, N.T. No. 12
|
NTC Telephone, Wall No. 12
(W.S. 5). A wall mounted telephone with handset.
Manufactured by British Ericsson.
NTC type included:-
1 x Bell, Magneto, 1000ohms.
1 x
Induction Coil No. 2.
1 x Generator,
500ohms.
1 x Hand Micro-telephone.
1 x Cord No. 57.
This was one of the N.T.C. wall
telephones that were later rewired and renamed as the
Telephone No. 59 (with generator) or the
Telephone No.
69 (without generator).
GPO Diagram
N301.
|
|

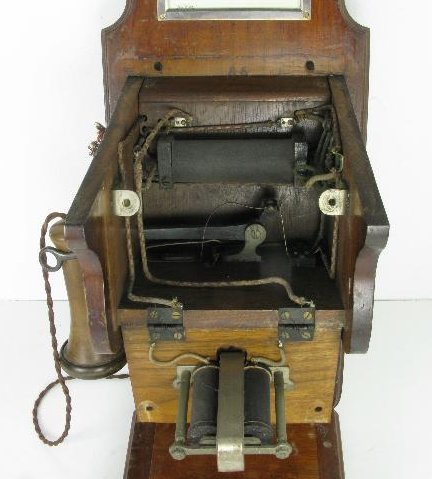

Instruments,
Subscribers', Wall, N.T. No. 13
Click on pictures to enlarge
|
Wall telephone for C.B.
circuits. Made by British Western Electric.
NTC called this the
Telephone, Wall No. 13.
Superseded by the
Subscribers, Wall, Instrument C.B. (S.L. 14).
Renamed by the
GPO as the "Instrument, Subscriber's, Wall, NT No. 13".
Diagram N.T.
9401
and GPO Diagram N302.
NTC
type included:-
1 x Bell, Magneto, 1000ohms.
1 x
Induction Coil 17/26.
1 x Condenser 2.5uf.
1 x Generator,
500ohms.
1 x Solid Back Transmitter on an ornate adjustable arm.
1 x 60ohm Receiver.
1
x Cord No. 33 (2 conductor).
There were originally five
terminals at the bottom of the telephone for external connections.
Added to the GPO Rate Book as their
Telephone No. 1.
|
Instruments,
Subscribers', Wall, N.T. No. 14
|
A wall telephone used on C.B.
circuits. Manufactured by British Western Electric.
Formally called the
Telephone, Wall No. 14 or the Subscribers, Wall, Instrument
C.B. (S.L. 14) by NTC.
Superseded by the Telephone, Wall No. 16.
Diagram N.T. 9402.
NTC type
includes:-
1 x 1000ohm bell ringer.
1 x Transmitter on
swinging arm.
1 x 60ohm Bell Receiver.
1 x 2uf Capacitor.
1
x 17/26 Induction Coil.
1 x Cord No. 33 (2 conductor).
The
bell ringer is inverted. There were originally 9 terminals inside the telephone.
Added to the GPO Rate Book as their
Telephone No. 1.
|
Instruments,
Subscribers', Wall, N.T. No. 15
|
For Magneto circuits. Convertible to C.B.
Probably manufactured by British Western Electric.
Formally called the Telephone, Wall No. 15 or the Subscribers, Wall, Instrument
L.B. Convertible to C.B. (S.L. 15) by NTC. This instrument
comprised a 1000ohm bell ringer, Transmitter on swinging arm, 60ohm
Bell Receiver, 500ohm Generator and a 1.75/18.5 Induction Coil.
The bell ringer is inverted.
Diagram N.T. 9403 and GPO
N315.
GPO type includes:-
1 x Bell,
Magneto, 1,000ohms (non R.B.) (fitted with 2 Bell gongs, No. 2).
1 x Coil, Induction, N.T. No. 1001.
1 x Condenser, M.C., No. 2, 3
or 30.
2 x Cords, Instrument, No. 116.
1 x Cord, Instrument,
No. 222.
1 x Frame Notice, No. 1.
1 x Generator, N.T. No.
1001, unmounted.
1 x Receiver, Bell, No. 1A.
1 x Transmitter,
N.T. No. 13.
Speaking Battery separately requisitioned.
Note:
For C.B. working, replace the Coil, induction N.T. No.
1001 by a Coil, Induction No. 3 or No. 14, alter Connections and
recover generator and speaking battery.
There were originally
12 terminals inside the telephone.
Added to the GPO Rate
Book as their Telephone No. 81.
|
Instruments, Subscribers', Wall,

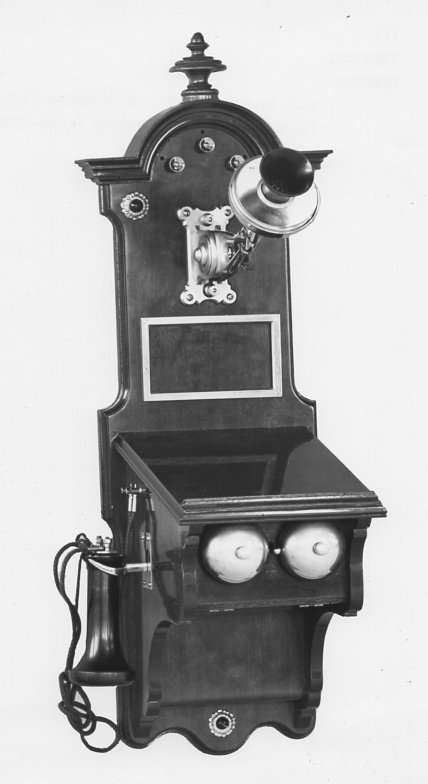

N.T. No. 16
Click on picture to enlarge
|

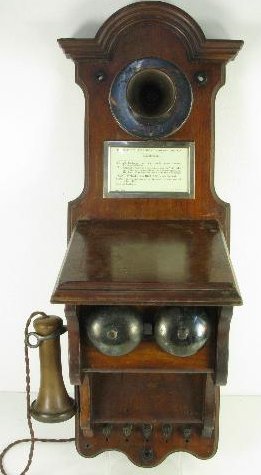

Wall mounted, CB telephone,
finished in bronze. Manufactured by British Western Electric.
Formally
called the Telephone, Wall No. 16 or the Subscribers, Wall,
Instrument C.B. (S.L. 16) by NTC.
Diagram N.T. 9404.
NTC type included:-
1 x 1000ohm bell ringer.
1 x Transmitter
on swinging arm.
1 x Receiver No. 10 (60ohms).
1 x Detachable
Switchhook.
1 x Induction
Coil (17/26 ohms).
1 x
Condenser No. 2 (2uf).
1 x Cord No. 68.
The bell ringer is inverted and there were originally five
terminals inside the telephone for external connections.
Added to the GPO Rate Book as
their Telephone No. 1.
|
Instruments, Subscribers', Wall,
N.T. No. 17
|
Magneto telephone with upper
cabinet containing adjustable Transmitter and Bell Receiver. A
battery box is fitted at the bottom of the backboard.
Formally
called the Telephone, Wall No. 17 or the Subscribers, Wall, Instrument L.B. (S.L. 17) by NTC.
Diagram
N.T. 9405 and GPO N317.
NTC type included:-
1 x 1000ohm bell ringer.
1 x G.T.1 fixed Transmitter with adjustable mouthpiece.
1 x Receiver No. 14 (120ohm Bell Receiver).
1 x Induction
Coil No. 2 (1/25 ohms).
1 x Two button lightning Arrester.
1 x 500ohm Generator.
1 x Cord No. 68.
Superseded by the GPO
Telephone No. 25.
This telephone
has nine terminals which includes the four receiver (R and ER)
terminals.
|
|
