New Zealand Post Office
Telephones List

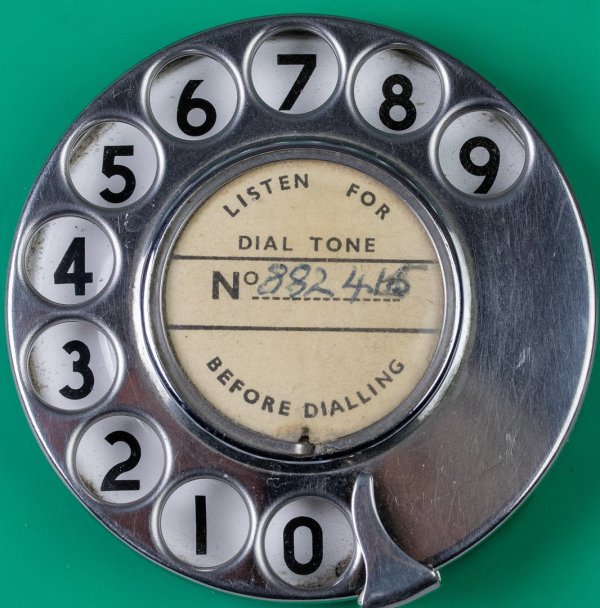

Telephones from New Zealand have a different dial to the rest of the world.  Dial telephones are numbered 0, 1.....8, 9 in a clockwise direction.  Click here for a picture.

The list is incomplete as it is difficult to find conclusive information on NZPO telephones.  Please advise of missing models.

Don't expect to see a NZPO model number on the base, instead you may find a generic British Post Office model number (i.e. BPO No. 332) or a private manufacturers model number (i.e. N2122 - British Ericsson).  Some are cross referenced below.

Circuit diagrams are either linked from the model page or from the Ericsson main list for 'N' prefixed models (follow the Ericsson Telephone link at bottom of the page).

NZPO Model Manu Model No. System Colour Wall/Table Style Features
100 GEC (NZ) AUTO MANY TABLE 746 Sim to BPO 746
101 GEC (NZ) AUTO MANY TABLE 746 Sim to BPO 746
110 GEC (NZ) AUTO   TABLE 740 Sim to BPO 740
200 STC AUTO MANY TABLE   STC VISCOUNT
F195 N2123A1 MAGNETO BLACK TABLE 300 LB WITH SIDE GENERATOR
F325 N2204A2 MAGNETO BLACK WALL 300 SIDE GENERATOR - Used on Post Payment CCB
F340 N2204A17 MAGNETO BLACK WALL 300 SIDE GENERATOR
H130 WE 2660A AUTO   TABLE   4-PARTY LINE
H917 WE 2660A AUTO   TABLE   PART ON H130
H1100       TABLE   Unknown
H1130   AUTO BLACK TABLE 300 GEC - FOR 2 PARTY LINE
H1140 WE 302B AUTO   TABLE   4-PARTY LINE USED WITH KEY BOX H1145
H1150 WE 302B AUTO   TABLE   4-PARTY LINE USED WITH KEY BOX H620
H1170 N1003H16 AUTO   TABLE 300 RURAL USED WITH EXTERNAL  MAGNETO
H1170 MOD   AUTO BLACK TABLE 300 RURAL USED WITH PRE-PAYMENT CCB
H1175 N2122A21 MAGNETO BLACK TABLE 300 AUTOMATIC RURAL WITH SIDE GENERATOR
H1175 N2122A24 MAGNETO BLACK TABLE 300 AUTOMATIC RURAL WITH SIDE GENERATOR
H1175 N2122A26 MAGNETO BLACK TABLE 300 AUTOMATIC RURAL WITH SIDE GENERATOR
H1370 N1071E3 AUTO BLACK WALL 300 1 BUTTON - PARTY LINE
H1370 N1076A1 AUTO BLACK WALL 300 1 BUTTON - PARTY LINE
H1385 N1071A16 AUTO BLACK WALL   NO BUTTON
H1482   AUTO BLACK WALL   AUTOMATIC RURAL WITH MAGNETO
H1488 N2201A MAGNETO WOOD WALL   AUTOMATIC RURAL - WOODEN
H1492 N2205A MAGNETO BLACK WALL   AUTOMATIC RURAL - PARTY LINE
HB470 AUTO BLACK TABLE BPO No. 162
HB560 Siemens Bros AUTO BLACK TABLE   BPO No. 162 or 232 on a bellset
HB580   AUTO BLACK TABLE 200 BPO No. 242 used on CCBs
HB660 L11579.A1 AUTO IVORY TABLE 300 3 BUTTON - BPO No. 328F Mk 2A
HB661   AUTO GREEN TABLE 300 3 BUTTON - BPO No. 328F Mk 2A
HB670 N1002A47 AUTO BLACK TABLE 300 BPO No. 332F and ATM L11568.A6
HB671 L11576.B4 AUTO GREEN TABLE 300 BPO No. 332F Mark 2A
HB672   AUTO IVORY TABLE 300 BPO No. 332F Mark 2A
HB673   AUTO RED TABLE 300 BPO No. 332F Mark 2A
HB830 N1005 AUTO BLACK TABLE 300 3 BUTTON
HB850 N1046J3 INTERMEDIATE BLACK TABLE   WITH GENERATOR
HB870 N1047H4 INTERMEDIATE BLACK TABLE   WITH GENERATOR
HB870 N1047H18 INTERMEDIATE BLACK TABLE   PRESS BUTTON
HB880 N1049H25 AUTO BLACK TABLE 300 WITH GENERATOR
HB900 N1071A2 AUTO BLACK WALL 300

NO BUTTON with ND Dial
HB900C   CB BLACK TABLE 300 NO BUTTON, Used on Post Payment CCB
HB925 N1071H2 AUTO BLACK WALL   3 BUTTON
HB930 MOD N1071H2 AUTO BLACK WALL   3 BUTTON - PBX RECALL
HB930 N1071E2 AUTO BLACK WALL   1 BUTTON - PBX RECALL
HC131   AUTO GREEN TABLE 700 BPO No. 706
HC400 GEC (NZ) AUTO BLACK TABLE 746  Type 100 (BPO No. 746)
HC401   AUTO   TABLE 746 Type 100 (BPO No. 746)
HC402   AUTO   TABLE 746 Type 100 (BPO No. 746) USED ON CCB
HC403 GEC (NZ) AUTO GREEN TABLE 746 Type 100 (SA 4258) F180
HC404   AUTO   TABLE 746 Type 100
HC405   AUTO   TABLE 746 Type 100
HC406   AUTO   TABLE 746 Type 100
HC501   AUTO   TABLE 700 BPO No. 706
HC608   CB   TABLE 740 BPO No. 740CB - CALLOUT SCHEME G
HC609   CB   TABLE 740 BPO No. 740CB - CALLOUT SCHEME G
HC630E   CB RED TABLE 746 FIREMANS CALLOUT SCHEME F
HC750   AUTO   TABLE   TYPE 101 (746 WITH 22 TERMINALS)
HC751 AUTO TABLE TYPE 101 (746 WITH 22 TERMINALS)
HC752 AUTO TABLE TYPE 101 (746 WITH 22 TERMINALS)
HC753   AUTO   TABLE   TYPE 101 (746 WITH 22 TERMINALS)
HC754   AUTO   TABLE   TYPE 101 (746 WITH 22 TERMINALS)
HC800 DBJ 3310 AUTO TABLE L. M. ERICSSON MAIN TELE
HC850 DBJ 3319 AUTO   TABLE   L. M. ERICSSON EXTENSION TELE
HC870 DBJ 52249 AUTO TABLE L. M. ERICSSON MAIN TELE
HC890 DBJ 52222 AUTO   TABLE   L. M. ERICSSON EXTENSION TELE
HD14   AUTO   TABLE   STATESMAN
Unknown N1440E8 CB BLACK WALL 700 SUPPLIED TO NZ - SPECIAL FAULTS
Unknown N1881Z2 AUTO STEEL TABLE   SUPPLIED TO NZ - FLAMEPROOF
Unknown N2156 MAGNETO STEEL TABLE   SUPPLIED TO NZ - CORPORATION TYPE
Unknown N2509 MAGNETO WOODEN WALL SUPPLIED TO NZ
Unknown N2510D MAGNETO WOODEN WALL SUPPLIED TO NZ
Unknown N2516 MAGNETO WOODEN WALL   SUPPLIED TO NZ
Unknown N2516M2T MAGNETO WOODEN WALL   SUPPLIED TO NZ
Unknown N2517 MAGNETO WOODEN WALL   SUPPLIED TO NZ
