BRITISH ERICSSON AND PLESSEY TELEPHONE INDEX FOR MODELS PREFIXED N
Code No. Wiring
Diagram 		System Material Mounting L S Description

N1000

AUTO

CANDLESTICK

TABLE

N1002A

 MANY

AUTO

BAKELITE

TABLE

ND DIAL - TRAY

N1002H

 N53649

AUTO

BAKELITE

TABLE

ND DIAL - NO TRAY
N1002L AUTO BAKELITE TABLE DIR DIAL - TRAY
N1002U AUTO BAKELITE TABLE DIR DIAL - NO TRAY
N1003 MANY AUTO BAKELITE TABLE 1 BUTTON
N1004A MANY AUTO BAKELITE TABLE 2 BUTTON
N1005 MANY AUTO BAKELITE TABLE 3 BUTTON
N1006A MANY AUTO BAKELITE TABLE NO BUTTONS, BATTERY BELL
N1007A N77097 AUTO BAKELITE TABLE 1 BUTTON, BATTERY BELL
N1009A N54187 AUTO BAKELITE TABLE 3 BUTTONS, BATTERY BELL
N1010A N19995 AUTO BAKELITE TABLE
N1010B N18635 AUTO BAKELITE TABLE AS N1010A, NO IND COIL
N1011 N19995 AUTO BAKELITE TABLE NO BELL
N1012 N18835 AUTO BAKELITE TABLE NO BELL OR IND COIL
N1013D N68358 AUTO BAKELITE TABLE GPO TELE No. 328
N1014A N77339 AUTO BAKELITE TABLE 1000 TYPE
N1015A N82201 AUTO BAKELITE TABLE 1000 STYLE, 1 BUTTON
N1016A AUTO BAKELITE TABLE 1000 STYLE, 2 BUTTON
N1017A AUTO BAKELITE TABLE 1000 STYLE, 3 BUTTON
N1018 N89218 AUTO ALUMINIUM TABLE FLAMEPROOF
N1019 N86810 AUTO ALUMINIUM TABLE FLAMEPROOF, 1 BUTTON
N1020 N53896 AUTO BAKELITE TABLE 300 STYLE - cord side entry
N1025A N89943 AUTO BAKELITE TABLE 1000 TYPE
N1026A N89923 AUTO BAKELITE TABLE 1000 TYPE, 1 BUTTON
N1027A AUTO BAKELITE TABLE 1000 TYPE, 2 BUTTON
N1028A AUTO BAKELITE TABLE 1000 TYPE, 3 BUTTON
N1030 N86218 AUTO STEEL TABLE MUNICIPAL STYLE
N1031A AUTO BAKELITE TABLE 1000 TYPE, DC BELL
N1034A N86218 AUTO BAKELITE TABLE 1000 TYPE, 3 BUTTON, DC bell
N1035A N89977 AUTO BAKELITE TABLE 300 STYLE, WITH HANDLE, CURVED HANDSET
N1036A N89981 AUTO BAKELITE TABLE 300 STYLE, 1 BUTTON, CURVED HANDSET
N1041A N88673 AUTO ALUMINIUM TABLE FLAMEPROOF
N1042A N88673 AUTO ALUMINIUM TABLE FLAMEPROOF, 1 BUTTON
N1044B AUTO STEEL TABLE MUNICIPAL STYLE INTERMEDIATE
N1045B N52233 AUTO STEEL TABLE MUNICIPAL STYLE EXTN
N1046H N70930 AUTO BAKELITE TABLE MAG/INTERMEDIATE

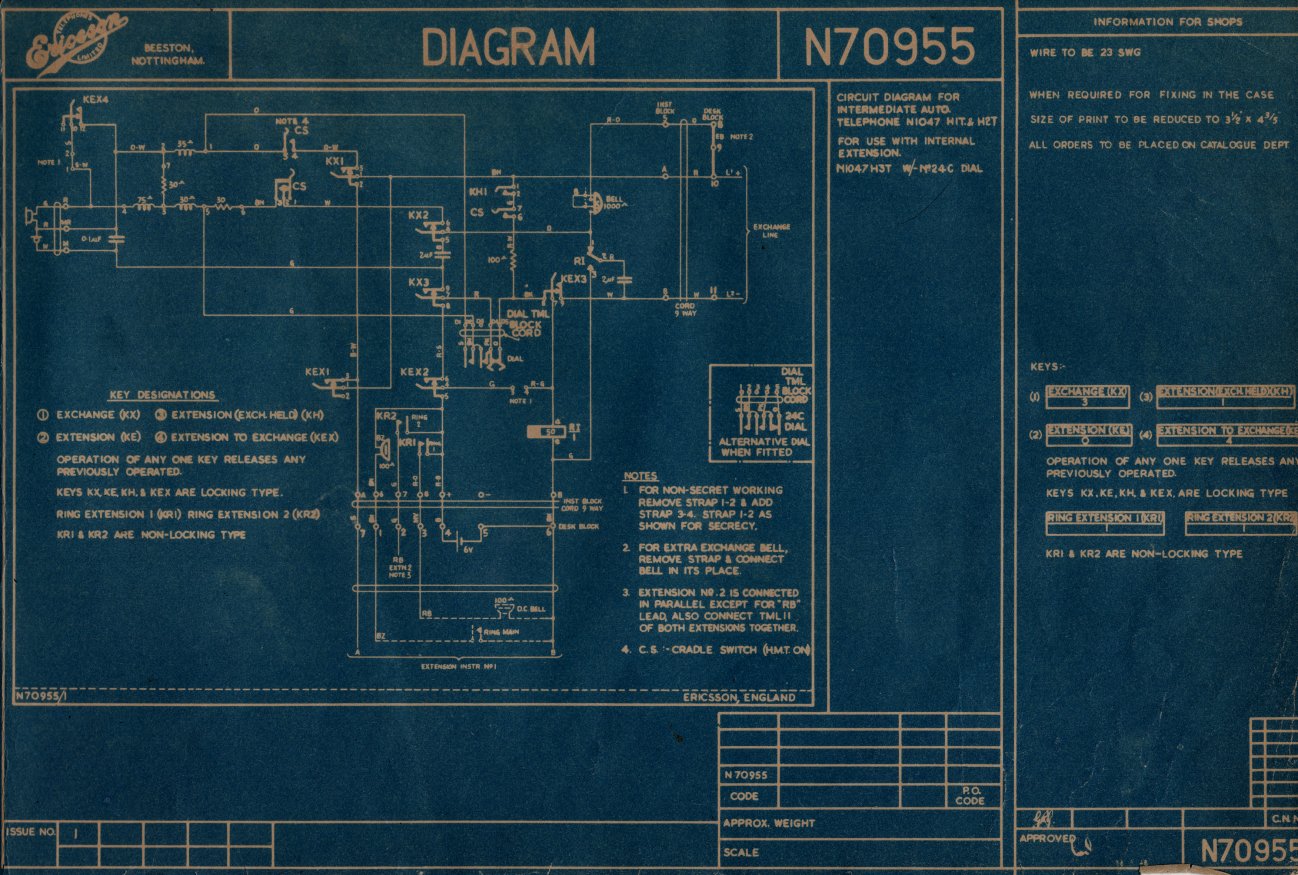

N1047H N70955 AUTO BAKELITE TABLE MAG/INTERMEDIATE
N1048H AUTO BAKELITE TABLE MAG/EXTN

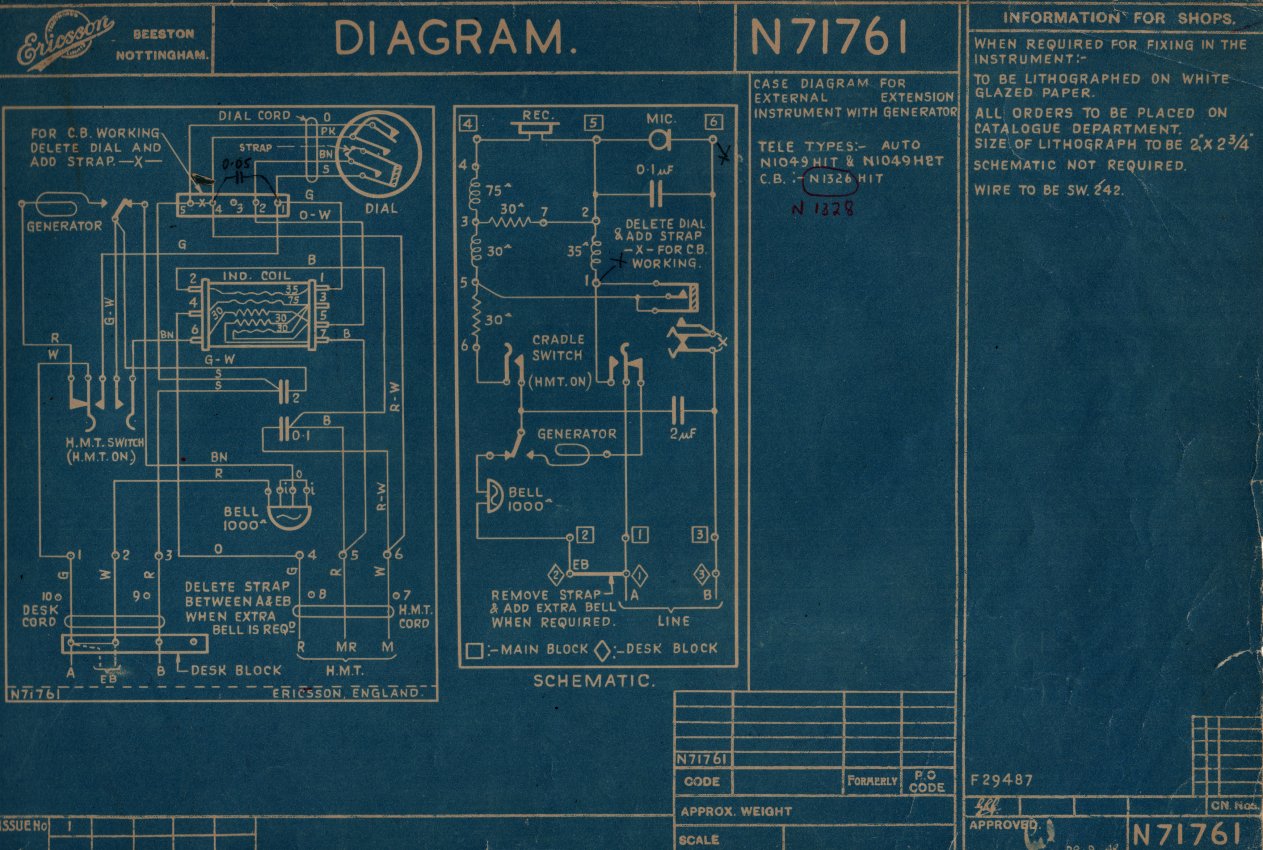

N1049H N71761 AUTO BAKELITE TABLE MAG/EXTN
N1050 MANY AUTO WOODEN WALL FIXED TRANS
N1051A N90074 AUTO BAKELITE TABLE INTERMEDIATE
N1052A1T N86494 AUTO BAKELITE TABLE EXTN
N1053B N92228 AUTO BAKELITE TABLE INTERMEDIATE
N1054B N92229 AUTO BAKELITE TABLE EXTN
N1058A N99057 AUTO FLAMEPROOF WALL NO PRESS BUTTON
N1059A N99057 AUTO FLAMEPROOF WALL GPO TELE No. 703, 1 PRESS BUTTON
N1060A N19995 AUTO BAKELITE WALL N1010 ON A BRACKET
N1065 N91399 AUTO ETELPHONE WALL GPO TELE No. 1/706L
N1066 MANY AUTO ETELPHONE WALL AS N 1065, 1 BUTTON
N1069B N97156 AUTO ETELPHONE WALL 700 STYLE, 1 BUTTON
N1070 AUTO BAKELITE WALL
N1071A MANY AUTO BAKELITE WALL
N1071D AUTO BAKELITE WALL GPO TELE No. 311, 1 BUTTON
N1071F AUTO BAKELITE WALL 2 BUTTON
N1071H AUTO BAKELITE WALL 3 BUTTON
N1072A AUTO BAKELITE WALL FLAMEPROOF
N1073A1T N84764 AUTO BAKELITE WALL 300 STYLE
N1075A1 N84407 AUTO BAKELITE WALL GPO TELE No. 321F & L
N1076A AUTO BAKELITE WALL 300 STYLE, 1 BUTTON
N1080 AUTO WOODEN WALL HANDSET
N1081A1 N87992 AUTO BAKELITE WALL GPO TELE No. 327, DC BELL
N1086A N87999 AUTO BAKELITE WALL GPO TELE No. 333F & L
N1087 AUTO CAST IRON WALL ARMOURED CABLE
N1087A AUTO CAST IRON WALL SCREWED CONDUIT
N1087C N52360 AUTO CAST IRON WALL FLAMEPROOF
N1087X AUTO CAST IRON WALL GPO TELE No. 149
N1088 AUTO CAST IRON WALL FIXED TRANS
N1089 N15559 AUTO CAST IRON WALL HANDSET
N1090A N13592 AUTO STEEL WALL HANDSET
N1090B N19496 AUTO STEEL WALL BAKELITE HANDSET
N1091 AUTO CAST IRON WALL NO BUTTON
N1092 AUTO CAST IRON WALL 1 BUTTON
N1094A N91021 AUTO CAST IRON WALL INTRINSICALLY SAFE
N1095A N13602 AUTO WOODEN WALL BAKELITE HANDSET
N1096A N89951 AUTO BAKELITE WALL 300 STYLE
N1097A 98192/SW AUTO BAKELITE WALL 300 STYLE, 1 BUTTON
N1100 BATTERY RINGING CRADLE TYPE TABLE
N1101 N18992 BATTERY RINGING CRADLE TYPE TABLE RAILWAY USE

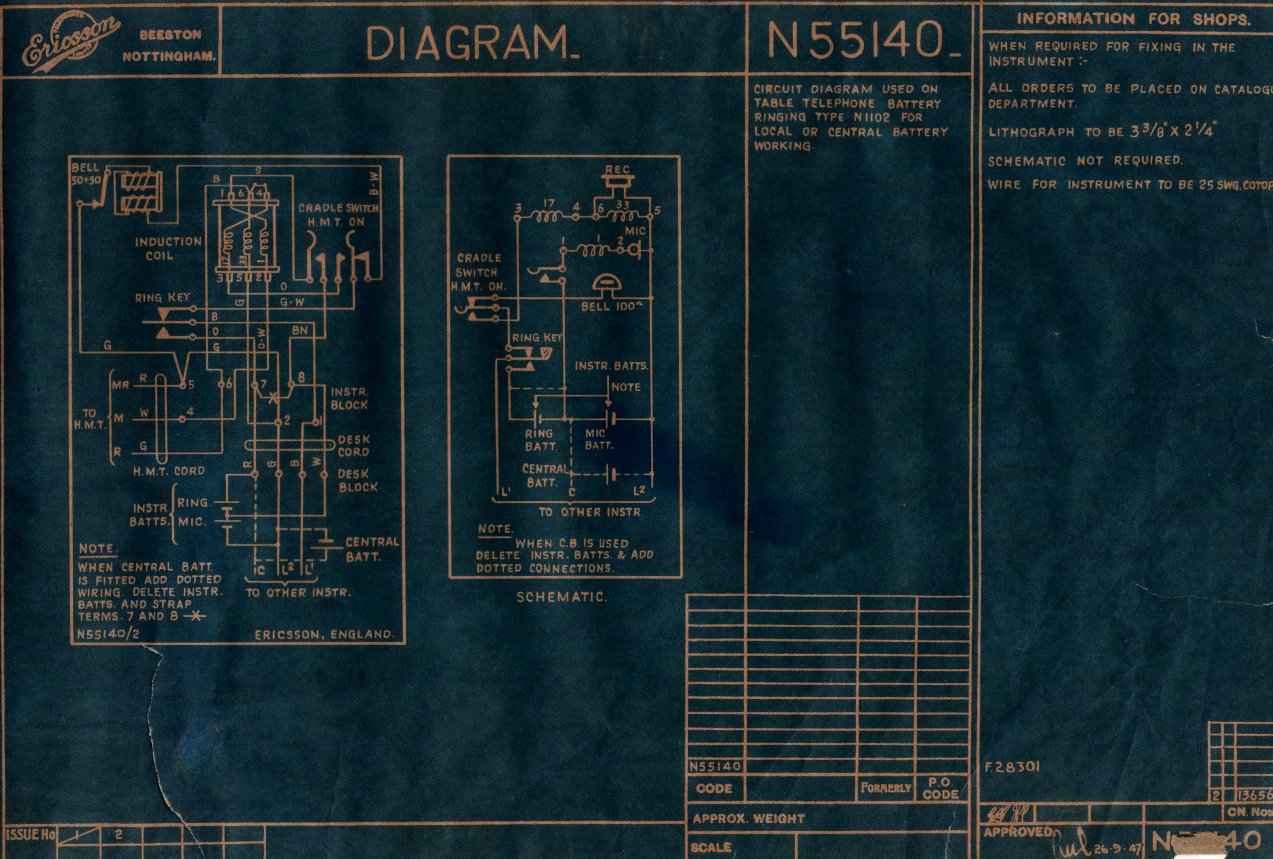

N1102 N55140 BATTERY RINGING BAKELITE TABLE 300 STYLE, 1 BUTTON, DC BELL
N1103 N55142 BATTERY RINGING BAKELITE TABLE 300 STYLE, 1 BUTTON, DC BUZZER
N1104 N56200 BATTERY RINGING BAKELITE TABLE 300 STYLE, 2 BUTTON & RELAY
N1105 N17156 CALL AND REPLY WOODEN TABLE HANDSET
N1107 N55245 CALL AND REPLY BAKELITE TABLE 300 STYLE, 1 BUTTON & DC BELL
N1108 N55311 LB BAKELITE TABLE 300 STYLE, 1 BUTTON & RELAY
N1110 BATTERY RINGING WOODEN WALL FIXED TRANS
N1111A N76481 LB BAKELITE TABLE 300 STYLE, 1 BUTTON & NO BELL
N1112 N79902 CALL AND REPLY BAKELITE TABLE 1000 STYLE, DC BELL
N1113A1 N86870 BATTERY RINGING BAKELITE TABLE 1000 STYLE, 1 BUTTON & DC BELL
N1115 CALL AND REPLY WOODEN WALL FIXED TRANS
N1120 BATTERY RINGING WOODEN WALL FIXED TRANS
N1127 BATTERY RINGING WOODEN WALL PARLOUR PHONE
N1128 BATTERY RINGING WOODEN WALL PARLOUR PHONE
N1130 N18573 BATTERY RINGING WOODEN WALL HANDSET, DC BELL
N1135A N16942 CALL AND REPLY WOODEN WALL HANDSET, DC BELL
N1140E N100210 AUTO PLASTIC WALL 700 STYLE, DC BELL
N1141A AUTO PLASTIC WALL 700 STYLE, 1 BUTTON & DC BELL
N1149 N14229 BATTERY RINGING CAST IRON WALL GENERAL USE
N1149A BATTERY RINGING CAST IRON WALL LONG LINE USE
N1150 N15432 BATTERY RINGING CAST IRON WALL MINING
N1165 N16772 BATTERY RINGING RAILWAY WALL 1 BUTTON & DC BELL

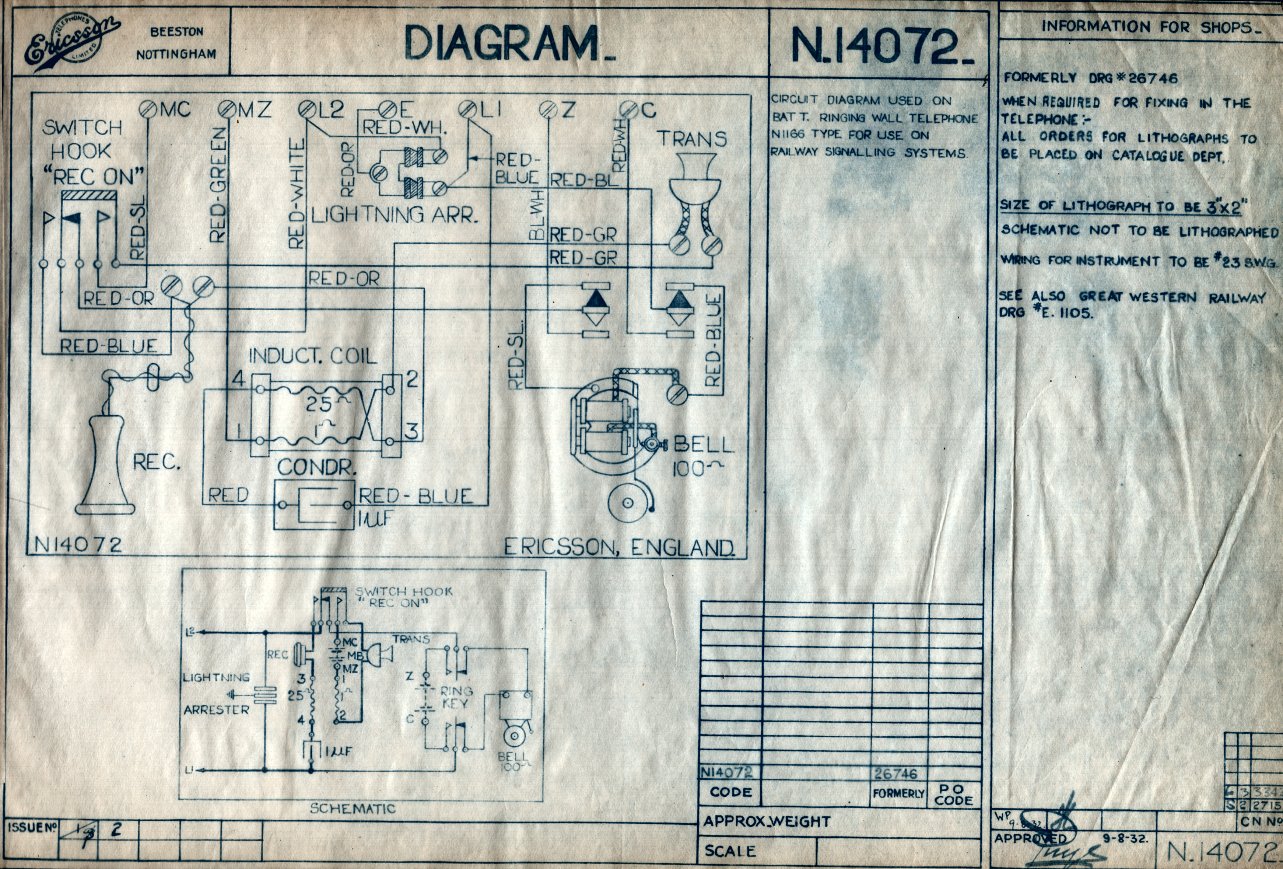

N1166 N14072 BATTERY RINGING RAILWAY WALL FIXED TRANS, 1 BUTTON & DC BELL
N1167 N12713 BATTERY RINGING RAILWAY WALL FIXED TRANS, 2 BUTTON & DC BELL
N1168 N12225 BATTERY RINGING RAILWAY WALL FIXED TRANS, 3 POS KEY & DC BELL
N1170 N15278 BATTERY RINGING RAILWAY WALL FIXED TRANS, SINGLE BUTTON, DC BELL
N1171 N15367 BATTERY RINGING RAILWAY WALL FIXED TRANS, SINGLE BUTTON
N1172 BATTERY RINGING RAILWAY WALL FIXED TRANS
N1173 N15278 BATTERY RINGING RAILWAY WALL FIXED TRANS, 1 BUTTON & DC BELL
N1174 BATTERY RINGING RAILWAY WALL FIXED TRANS, 1 BUTTON & DC BELL
N1173 N15278 BATTERY RINGING RAILWAY WALL FIXED TRANS, 1 BUTTON & DC BELL
N1177 N57280 BATTERY RINGING RAILWAY WALL HANDSET, 2 BUTTON & DC BELL
N1178 N65580 BATTERY RINGING RAILWAY WALL HANDSET, 1 BUTTON & DC BELL
N1179 N67054 BATTERY RINGING RAILWAY WALL HANDSET, 3 POS KEY & DC BELL
N1180 BATTERY RAILWAY WALL FIXED TRANS
N1181 N68765 BATTERY WOODEN WALL 4 BUTTON
N1182 N68766 BATTERY WOODEN WALL 2 BUTTON
N1183 N68767 BATTERY WOODEN WALL 1 BUTTON
N1190 BATTERY RINGING BAKELITE WALL INTERCOM WITH DC BELL
N1195 BATTERY TELEGRAPH WALL HANDSET
N1200 N68781 BATTERY BAKELITE TABLE 300 STYLE, 3 BUTTON
N1201 N68795 BATTERY BAKELITE TABLE 300 STYLE, 2 BUTTON
N1202 N68802 BATTERY BAKELITE TABLE 300 STYLE, 1 BUTTON
N1203 BATTERY RINGING PLASTIC TABLE 700 STYLE, 3 BUTTONS & BUZZER
N1220A1 AUTO PLASTIC WALL ATE WALL TELE
N1240A AUTO WEATHERPROOF WALL NO PRESS BUTTON
N1241A AUTO WEATHERPROOF WALL 1 PRESS BUTTON
N1242A CB WEATHERPROOF WALL
N1243A RAILWAY (HALF BARRIER) WEATHERPROOF WALL 1 BUTTON
N1244A MAGNETO WEATHERPROOF WALL
N1245C MAGNETO WEATHERPROOF WALL TRANSISTOR MAGNETO
N1247A BARRIER OMNIBUS WEATHERPROOF WALL RAILWAY USE
N1248 AUTO WEATHERPROOF WALL 1 BUTTON -TELE 745
N1250A CB WEATHERPROOF WALL MOTORWAY TELE (DOE)
N1245A AUTO WEATHERPROOF WALL PRESS BUTTON DIALLING
N1300 CB CRADLE TYPE TABLE
N1301 CB CRADLE TYPE TABLE AS N1300
N1320B N54604 CB STEEL TABLE MUNICIPAL STYLE INTERMEDIATE
N1321H CB BAKELITE TABLE INTERMEDIATE
N1322H CB BAKELITE TABLE INTERMEDIATE
N1323A N86493 CB BAKELITE TABLE 1000 STYLE, INTERMEDIATE
N1324A N86494 CB BAKELITE TABLE 1000 STYLE, EXTN
N1325B N55206 CB STEEL TABLE MUNICIPAL STYLE EXTN
N1326H N71761 CB BAKELITE TABLE EXTN
N1326K N55547 CB BAKELITE TABLE 300 STYLE WITH GEN IN DIAL CENTRE
N1327H CB BAKELITE TABLE EXTN
N1328H N71761 CB BAKELITE TABLE EXTN
N1329B N92228 CB BAKELITE TABLE 1000 STYLE, INTERMEDIATE
N1330B N92229 CB BAKELITE TABLE 1000 STYLE, EXTN
N1340 MANY CB ETELPHONE TABLE GPO No. 706
N1341 MANY CB ETELPHONE TABLE 1 BUTTON
N1342 MANY CB PLASTIC TABLE GPO No. 710
N1343A MANY CB PLASTIC TABLE 1 BUTTON
N1344 MANY CB ETELPHONE TABLE 2 BUTTON EXTN TELE
N1346A MANY CB PLASTIC TABLE 4 BUTTON
N1350 CB CANDLESTICK TABLE
N1351 CB CANDLESTICK TABLE ELECTROMAGNETIC RECEIVER
N1355A CB PLASTIC TABLE BLUE ONLY
N1356A CB PLASTIC TABLE 1 BUTTON & DC BELL
N1360 CB BAKELITE TABLE 300 STYLE
N1365B CB BAKELITE TABLE GPO No. 332CB, TRAY
N1365H CB BAKELITE TABLE NO TRAY
N1365N CB BAKELITE TABLE NO TRAY
N1366 CB BAKELITE TABLE 1 BUTTON
N1366A CB BAKELITE TABLE magneto bell, 1 K key unit and button
N1366B CB BAKELITE TABLE GPO No. 330CB, 1 BUTTON
N1367A CB BAKELITE TABLE 2 BUTTON
N1368 CB BAKELITE TABLE 3 BUTTON
N1368A CB BAKELITE TABLE magneto bell, three buttons (key unit to be stated)
N1368D CB BAKELITE TABLE GPO No. 328CB, 3 BUTTON
N1369A CB BAKELITE TABLE 3 BUTTONS, BATTERY BELL
N1369B CB BAKELITE TABLE GPO No. 326CB, DC BELL
N1370A CB BAKELITE TABLE NO BUTTONS, BATTERY BELL
N1371A CB BAKELITE TABLE 1 BUTTON, BATTERY BELL
N1373A CB BAKELITE TABLE 1000 TYPE
N1374A CB BAKELITE TABLE 1000 TYPE, 1 BUTTON
N1375A CB BAKELITE TABLE 2 BUTTON
N1376A CB BAKELITE TABLE 3 BUTTON
N1380A CB BAKELITE TABLE 200 STYLE
N1386A CB BAKELITE TABLE 1000 TYPE
N1387A CB BAKELITE TABLE 1000 STYLE, 1 BUTTON
N1389A CB BAKELITE TABLE 1000 STYLE, 3 BUTTON
N1390A CB BAKELITE TABLE 300 STYLE, HANDLE
N1391A CB ALUMINIUM TABLE FLAMEPROOF
N1392A CB ALUMINIUM TABLE FLAMEPROOF, 1 BUTTON
N1396A CB BAKELITE TABLE 1000 STYLE, 3 BUTTON
N1397 CB ALUMINIUM TABLE FLAMEPROOF
N1398 CB ALUMINIUM TABLE FLAMEPROOF, 1 BUTTON
N1400 CB WOODEN WALL FIXED TRANS
N1401 CB WOODEN WALL as N1400
N1410A CB BAKELITE WALL N1350 ON A BRACKET
N1420 CB BAKELITE WALL
N1421A CB BAKELITE WALL
N1422A CB BAKELITE WALL 300 STYLE
N1423A CB BAKELITE WALL GPO No. 321CB BLACK
N1424A CB BAKELITE WALL 300 STYLE, 1 BUTTON
N1425A CB BAKELITE WALL 300 STYLE, 2 BUTTON
N1432A N87999 CB BAKELITE WALL 300 STYLE
N1433A CB BAKELITE WALL 300 STYLE
N1440 CB ETELPHONE WALL GPO TELE No. 1/706CB
N1441 CB ETELPHONE WALL 700 STYLE, 1 BUTTON
N1450 CB WOODEN WALL HANDSET
N1460 CB WOODEN WALL FIXED TRANS
N1470 N53803 CB CAST IRON WALL GPO TELE No. 129, FLAMEPROOF
N1471 CB CAST IRON WALL FLAMEPROOF
N1473 CB CAST IRON WALL FLAMEPROOF
N1474 CB CAST IRON WALL FLAMEPROOF
N1480 CB WOODEN WALL HANDSET
N1481 CB WOODEN WALL AS N1480
N1490 CB WALL DC BELL
N1491 CB WALL DC BELL
N1510A AUTO BAKELITE TABLE 1000 STYLE, DC BUZZER
N1520 CB PLASTIC TABLE DIAL
N1521 CB PLASTIC TABLE WITH RECALL BUTTON
N1590 CALL AND REPLY BAKELITE TABLE USED WITH N1740
N1591 CALL AND REPLY BAKELITE WALL USED WITH N1740
N1592 INTERCOM BAKELITE TABLE NO BELL
N1594 CALL AND REPLY BAKELITE TABLE 300 STYLE, 1 BUTTON
N1595A CALL AND REPLY BAKELITE TABLE 1000 TYPE
N1600 INTERCOM CB WOODEN TABLE

6

 PUSH BUTTON
N1601 INTERCOM CB WOODEN TABLE

6

 PUSH BUTTON
N1602 INTERCOM CB WOODEN TABLE

10

 PUSH BUTTON
N1603 INTERCOM CB WOODEN TABLE

10

 PUSH BUTTON
N1604 INTERCOM CB WOODEN TABLE

18

 PUSH BUTTON
N1605 INTERCOM CB WOODEN TABLE

18

 PUSH BUTTON
N1606 INTERCOM CB WOODEN TABLE

24

 PUSH BUTTON
N1607 INTERCOM CB WOODEN TABLE

24

 PUSH BUTTON
N1608 INTERCOM CB WOODEN TABLE

30

 PUSH BUTTON
N1609 INTERCOM CB WOODEN TABLE

30

 PUSH BUTTON
N1610 INTERCOM CB WOODEN WALL

6

 PUSH BUTTON
N1611 INTERCOM CB WOODEN WALL

6

 PUSH BUTTON
N1612 INTERCOM CB WOODEN WALL

10

 PUSH BUTTON
N1613 INTERCOM CB WOODEN WALL

10

 PUSH BUTTON
N1614 INTERCOM CB WOODEN WALL

18

 PUSH BUTTON
N1615 INTERCOM CB WOODEN WALL

18

 PUSH BUTTON
N1616 INTERCOM CB WOODEN WALL

24

 PUSH BUTTON
N1617 INTERCOM CB WOODEN WALL

24

 PUSH BUTTON
N1618 INTERCOM CB WOODEN WALL

30

 PUSH BUTTON
N1619 INTERCOM CB WOODEN WALL

30

 PUSH BUTTON
N1620A N16275 INTERCOM CB STEEL TABLE

5

 PUSH BUTTON
N1621A N16275 INTERCOM CB STEEL TABLE

10

 PUSH BUTTON
N1622A N16275 INTERCOM CB STEEL TABLE

15

 PUSH BUTTON
N1623A INTERCOM CB STEEL TABLE

20

 PUSH BUTTON
N1624A INTERCOM CB STEEL WALL

5

 PUSH BUTTON
N1625A INTERCOM CB STEEL WALL

10

 PUSH BUTTON
N1626A INTERCOM CB STEEL WALL

15

 PUSH BUTTON
N1627A INTERCOM CB STEEL WALL

20

 PUSH BUTTON
N1630 INTERCOM CB STEEL TABLE 5 PERSON FINDER
N1631 INTERCOM CB STEEL TABLE 10 PERSON FINDER
N1632 INTERCOM CB STEEL TABLE 15 PERSON FINDER
N1633 INTERCOM CB STEEL WALL 5 PERSON FINDER
N1634 INTERCOM CB STEEL WALL 10 PERSON FINDER
N1635 INTERCOM CB STEEL WALL 15 PERSON FINDER
N1636A INTERCOM CB BAKELITE TABLE

5

 5 LINE
N1636B INTERCOM CB BAKELITE TABLE

10

 10 LINE
N1636C INTERCOM CB BAKELITE TABLE

15

 15 LINE
N1637A INTERCOM CB BAKELITE WALL

5

 5 LINE
N1637B INTERCOM CB BAKELITE WALL

10

 10 LINE
N1637C INTERCOM CB BAKELITE WALL

15

 15 LINE
N1640 INTERCOM LB WOODEN TABLE

5

 RADIAL SELECTOR
N1641 INTERCOM LB WOODEN TABLE

10

 RADIAL SELECTOR
N1642 INTERCOM LB WOODEN TABLE

15

 RADIAL SELECTOR
N1643 INTERCOM LB WOODEN TABLE

20

 RADIAL SELECTOR
N1643 MULTIPHONE PLASTIC TABLE 2 10 MULTIPHONE SYSTEM PHONE
N1644 MULTIPHONE PLASTIC TABLE 4 10 MULTIPHONE SYSTEM PHONE
N1644 INTERCOM LB WOODEN TABLE

25

 RADIAL SELECTOR
N1645 INTERCOM LB WOODEN TABLE

30

 RADIAL SELECTOR
N1650 INTERCOM CB WOODEN TABLE

5

 RADIAL SELECTOR
N1651 INTERCOM CB WOODEN TABLE

10

 RADIAL SELECTOR
N1652 INTERCOM CB WOODEN TABLE

15

 RADIAL SELECTOR
N1653 INTERCOM CB WOODEN TABLE

20

 RADIAL SELECTOR
N1654 INTERCOM CB WOODEN TABLE

25

 RADIAL SELECTOR
N1655 INTERCOM CB WOODEN TABLE

30

 RADIAL SELECTOR
N1668 CB BAKELITE TABLE 1 5 GPO TELE INT No. 1/1A mk3, HES
N1669 AUTO BAKELITE TABLE 1 5 GPO TELE INT No. 1/1AL mk3, HES
N1670 CB BAKELITE TABLE 2 10 GPO TELE INT No. 1/2A, HES
N1671 AUTO BAKELITE TABLE 2 10 HTS
N1672A AUTO PLASTIC TABLE 1 5 GPO TELE INT No. 3/1
N1673A CB PLASTIC TABLE 1 5 GPO TELE INT No. 3/1CB
N1674A AUTO PLASTIC TABLE

2

10

 GPO TELE INT No. 4/1L, HES
N1675A CB PLASTIC TABLE

2

10

 GPO TELE INT No. 4/1CB, HES
N1676A AUTO PLASTIC TABLE

2

5

 HES, KEYMASTER 2+5
N1677A CB PLASTIC TABLE

2

5

 HES, KEYMASTER 2+5
N1679 HES
N1680 INTERCOM MAGNETO WOODEN TABLE

10

 RADIAL SELECTOR
N1681 INTERCOM MAGNETO WOODEN TABLE

15

 RADIAL SELECTOR
N1682 INTERCOM MAGNETO WOODEN TABLE

20

 RADIAL SELECTOR
N1683 INTERCOM MAGNETO WOODEN TABLE

30

 RADIAL SELECTOR
N1684 INTERCOM MAGNETO WOODEN TABLE

40

 RADIAL SELECTOR
N1685 INTERCOM MAGNETO WOODEN TABLE

50

 RADIAL SELECTOR
N1686 AUTO BAKELITE TABLE 2 10 HES, USED ON PAX
N1720 INTERCOM STEEL TABLE 1 5
N1721 INTERCOM STEEL TABLE 2 5
N1722 INTERCOM STEEL TABLE 1 10
N1723 INTERCOM STEEL TABLE 2 10
N1724 INTERCOM STEEL TABLE 1 15
N1725 INTERCOM STEEL TABLE 2 15
N1726 INTERCOM STEEL WALL 1 5
N1727 INTERCOM STEEL WALL 2 5
N1728 INTERCOM STEEL WALL 1 10
N1729 INTERCOM STEEL WALL 2 10
N1730 INTERCOM STEEL WAL
